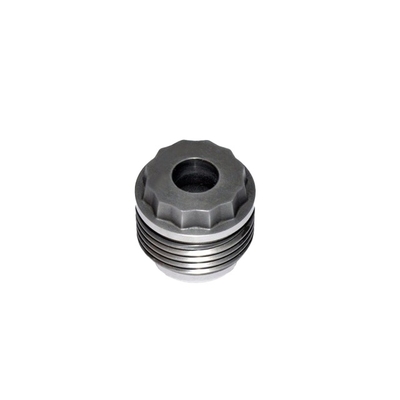

Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment

Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment
Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment

Large Image :  Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG13C
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $11-27
Contact Now

Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Surface: Glossy Color: Black Alloy
Grade Options: YG8/YG9C/YG11C Density Range: 12.00-14.90 G/cm³
Hardness Range: 86.5-93.6 HRA TRS Range: 2000-3800 Mpa
Porosity Grade: A02/B00/C00 Grain Size: 0.4-2.4 μm
Pore Diameter: 7.14-12.7 MM WC Composition: 69.2-94.0%
Ni Composition: 6.0-15.0% Ti Composition: 0-7.4%
TaC Composition: 0-13.8%
Highlight:

YG8 Grade Carbide Nozzle

,

PDC Drilling Oil Equipment Carbide Nozzle

,

Oil Equipment Carbide Nozzle

Custom Cemented Tungsten Carbide Alloy Water Jet Spiral Thread External Plum Blossom Nozzle
Product Overview

High-performance tungsten carbide nozzle designed for PDC drilling oil equipment, featuring exceptional wear resistance and customizable specifications.

Key Attributes
Attribute Value
Material 100% pure tungsten carbide powder
Grade Options YG8/YG9C/YG11C
Surface Finish Glossy
Shape Cylindrical
Color Black Alloy
Minimum Order 5 pieces

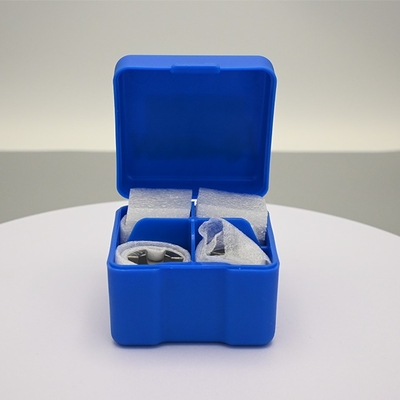

Packing Plastic box
Product Features
  • Engineered for high-pressure water jet applications in PDC drilling
  • Spiral thread design for optimal fluid dynamics
  • Exceptional wear resistance for extended service life
  • Precision manufactured to exacting tolerances
  • Available in standard and custom sizes
Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment 0
Technical Specifications
NO. OEM Common Sizes (MM)
1 TCY Φ300*Φ112*1.2
2 FOSBER Φ291*Φ203*1.1
3 Mitsubishi Φ280*Φ202*1.4
4 Mitsubishi Φ280*Φ160*1.4
5 KSM Φ280*Φ168*1.4
6 Hsieh Φ270*Φ168.3*1.4
7 Marquip Φ260*Φ168.3*1.2
8 Isowa Φ260*Φ140*1.5
9 Justu Φ260*Φ158*1.3
10 Oranda Φ265*Φ112*1.4
11 Oranda Φ260*Φ112*1.4
12 Wanlian Φ260*Φ114*1.4
13 Peters Φ250*Φ150*0.8
14 Katuo Φ250*Φ130*1.3
15 Jingshan Φ250*Φ105*1.3
16 BHS Φ240*Φ32*1.2
17 Agnati Φ240*Φ115*1
18 FOSBER Φ230*Φ110*1.1
19 Neide Φ230*Φ130*1.3
20 Katuo Φ230*Φ110*1.3
21 Justu Φ210*Φ122*1.3
22 Justu Φ200*Φ122*1.3
NOTE: Customization available per customer drawing or actual sample
Material Composition & Properties
Grade Composition (% in weight) Physical Properties Grain size (μm)
WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
Standard Pore Diameters
No. Pore Diameter (MM)
09# 7.14
10# 7.95
NOTE: Customization available per customer drawing or actual sample

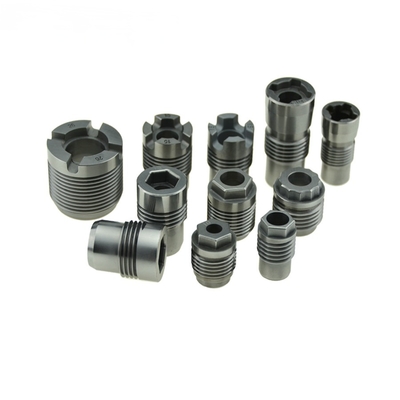

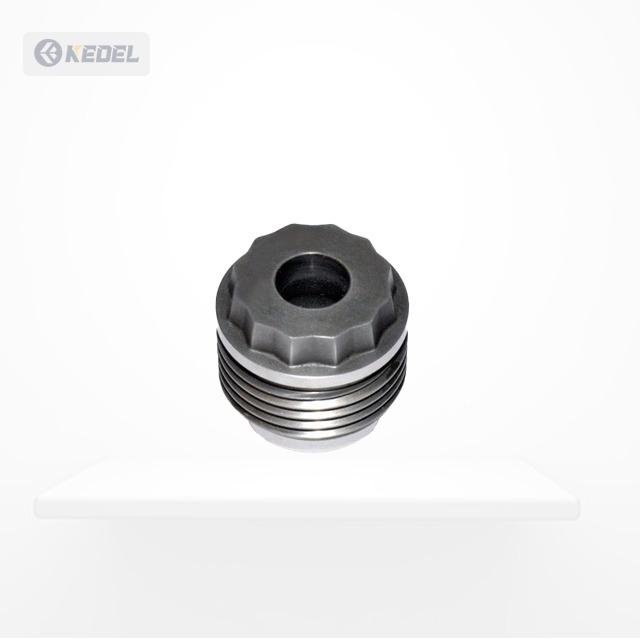

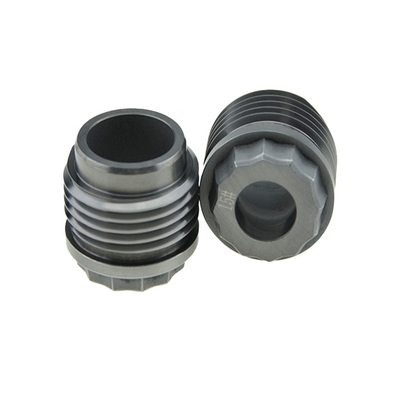

Product Gallery
Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment 1 Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment 2
About Kedel Technology
Tungsten Carbide Nozzle YG8 Grade for PDC Drilling Oil Equipment 3
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
