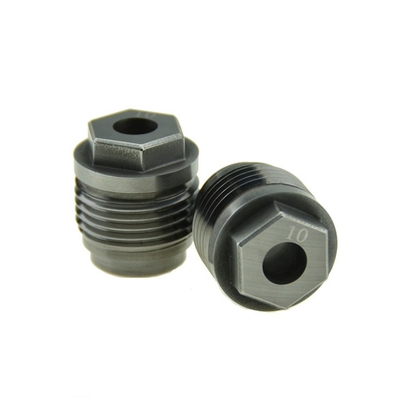

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Large Image :  Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG13C
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $13.50-29.50
Contact Now

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Surface: Glossy Color: Black Alloy
Grade: YG8/YG9C/YG11C Density: 14.00-14.90 G/cm³
Hardness: 86.5-93.6 HRA TRS: 2000-3800 Mpa
Porosity: A02/B00/C00 Grain Size: 0.4-2.4 μm
Pore Diameter: 7.14-12.7 MM WC Composition: 69.2-94.0%
Ni Composition: 6.0-15.0% Ti Composition: 0-7.4%
TaC Composition: 0-13.8%
Highlight:

PDC Drilling Carbide Nozzle

,

Oil Equipment Tungsten Carbide Nozzle

,

YG8 Tungsten Carbide Nozzle

Custom Cemented Tungsten Carbide Alloy Water Jet Spiral Thread Outer Hexagonal Groove Head Nozzle for PDC Drilling Oil Equipment
Product Specifications
AttributeValue
SurfaceGlossy
Power SourceElectric
Product NameTungsten Carbide Nozzle
Material100% pure tungsten carbide powder
AdvantageHigh Wear Resistance
SizeCustomer Required
PackingPlastic box
Application MachinePDC Bits
ShapeCylindrical
GradeYG8/YG9C/YG11C
MOQ5 PIECES
ColorBlack Alloy
Product Description
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 0
Technical Parameters
NO.OEMCommon Sizes (MM)
1TCYΦ300*Φ1121.2
2FOSBERΦ291Φ2031.1
3MitsubishiΦ280Φ2021.4
4MitsubishiΦ280Φ1601.4
5KSMΦ280Φ1681.4
6HsiehΦ270Φ168.31.4
7MarquipΦ260Φ168.31.2
8IsowaΦ260Φ1401.5
9JustuΦ260Φ1581.3
10OrandaΦ265Φ1121.4
11OrandaΦ260Φ1121.4
12WanlianΦ260Φ1141.4
13PetersΦ250Φ1500.8
14KatuoΦ250Φ1301.3
15JingshanΦ250Φ1051.3
16BHSΦ240Φ321.2
17AgnatiΦ240Φ1151
18FOSBERΦ230Φ1101.1
19NeideΦ230Φ1301.3
20KatuoΦ230Φ1101.3
21JustuΦ210Φ1221.3
22JustuΦ200Φ122*1.3
NOTE: Customization available per customer drawing or actual sample
GradeComposition (% in weight)Physical PropertiesGrain size (μm)
WCNiTiTaCDensity g/cm³ (±0.1)Hardness HRA (±0.5)TRS Mpa (min)Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
Pore Diameter Specifications
No.Pore Diameter (MM)
09#7.14
10#7.95
11#8.74
12#9.53
13#10.31
14#11.13
15#11.91
16#12.7

NOTE: Customization available per customer drawing or actual sample

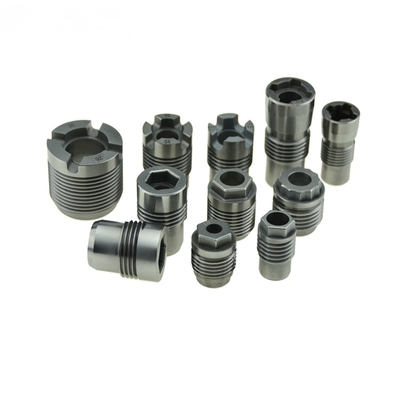

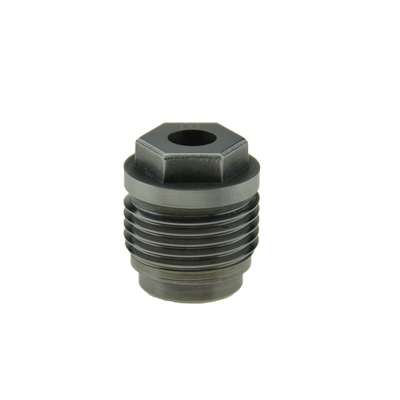

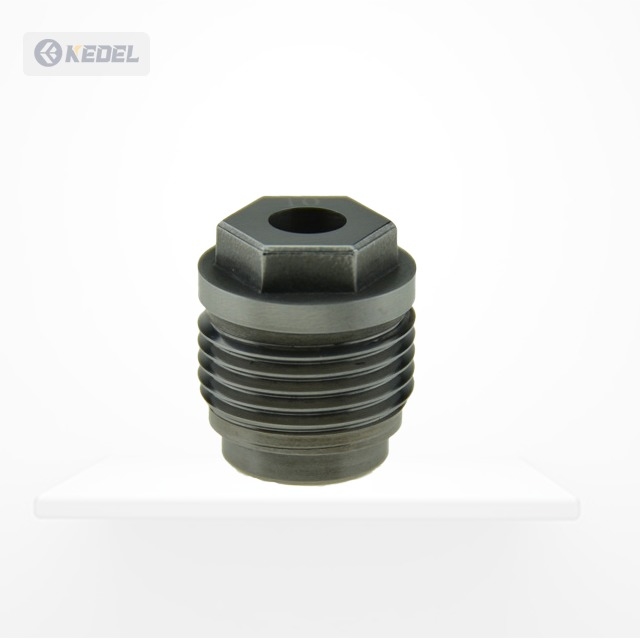

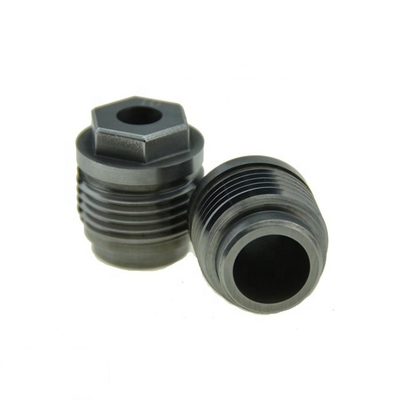

Product Images
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 1
Company Profile
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 2
Exhibition
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 3
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 4
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 5
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
