2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size

2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size
2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size

Large Image :  2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG8
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $11.50-27.50
Contact Now

2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Grade: YG8/YG9C/YG11C Surface: Glossy
Color: Black Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
Pore Diameter: 7.14-12.7 MM Composition WC: 93.5%
Composition Ni: 6.0% Composition TaC: 0.5%
Power Source: Electric
Highlight:

YG8 Tungsten Carbide Nozzle

Custom Cemented Tungsten Carbide Alloy Water Jet Spiral Thread Crossing Slot Head Nozzle for PDC Drilling Oil Equipment NL39
Product Attributes
Attribute Value
Surface Glossy
Power Source Electric
Engine Type Electric
Product name Tungsten Carbide Nozzle
Material 100% pure tungsten carbide powder
Advantage High Wear Resistance
Size Customer Required
Packing Plastic box
Application machine PDC Bits
Shape cylindrical
Grade YG8/YG9C/YG11C
MOQ 5 PIECES
Color black

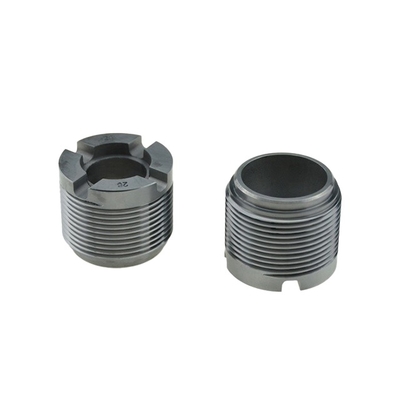

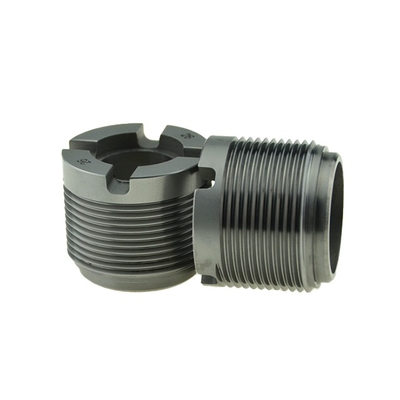

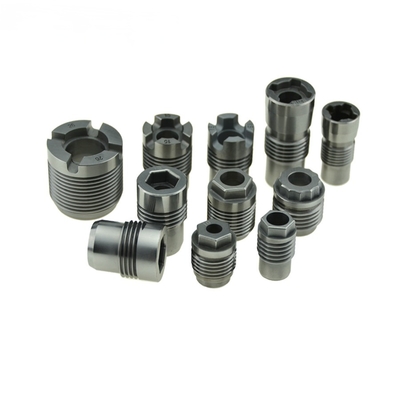

Product Description
2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 0 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 1 2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 2
Product Parameters
2700 Mpa TRS YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter and 0.6-0.8 μm Grain Size 3
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
No. Pore Diameter (MM)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7

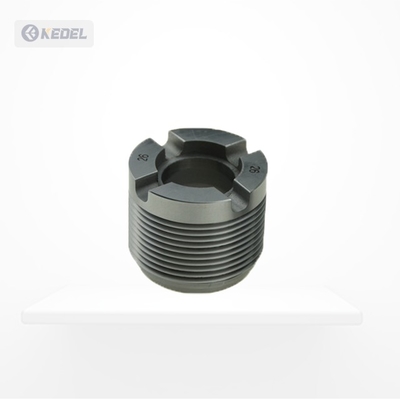

Details Images
