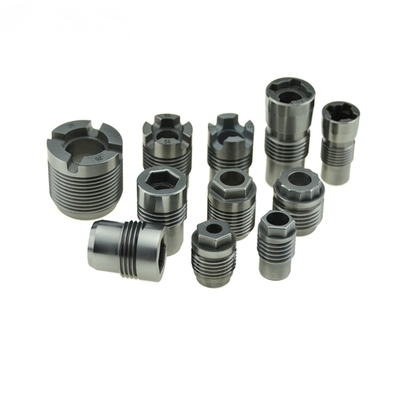

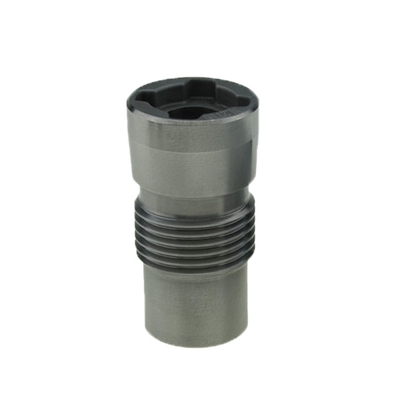

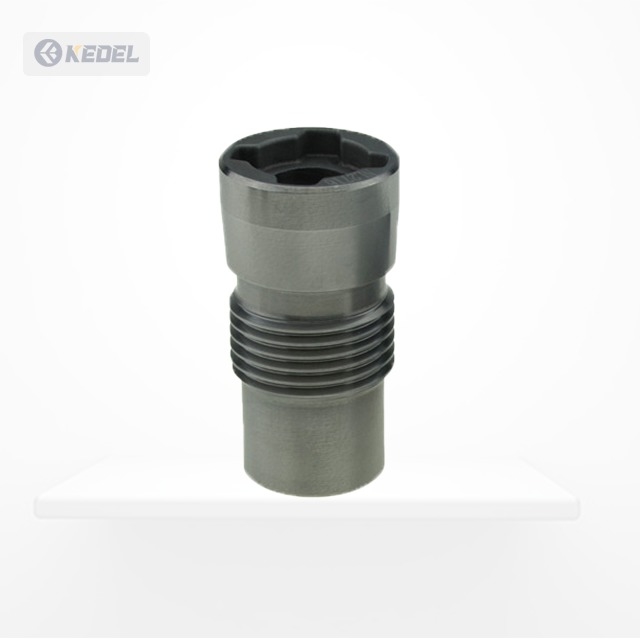

YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter

YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter
YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter

Large Image :  YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $13-29
Contact Now

YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Surface: Glossy Color: Black
Grade: YG8/YG9C/YG11C Density: 14.00-14.90 G/cm³
Hardness: 86.5-93.6 HRA TRS: 2000-3800 Mpa
Porosity: A02/B00/C00 Grain Size: 0.4-2.4 μm
Pore Diameter: 7.14-12.7 MM WC Composition: 69.2-94.0%
Ni Composition: 6.0-15.0% Ti Composition: 0-7.4%
TaC Composition: 0-13.8%
Highlight:

PDC Bits YG8 Tungsten Carbide Nozzle

,

PDC Bits Tungsten Carbide Nozzle

,

7.14mm Pore Diameter Tungsten Carbide Nozzle

Custom Cemented Tungsten Carbide Alloy Water Jet Spiral Thread Inner Crossing Slot Head Nozzle for PDC Drilling Oil Equipment
Product Specifications
Attribute Value
Surface Glossy
Power Source Electric
Engine Type Electric
Product name Tungsten Carbide Nozzle
Material 100% pure tungsten carbide powder
Advantage High Wear Resistance
Size Customer Required

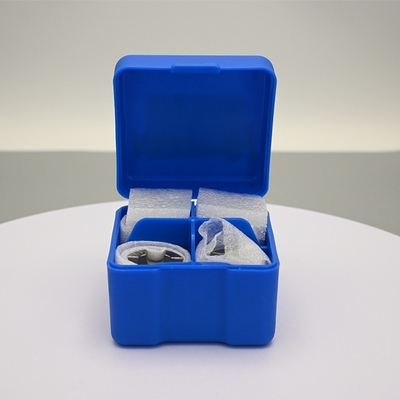

Packing Plastic box
Application machine PDC Bits
Shape cylindrical
Grade YG8/YG9C/YG11C
MOQ 5 PIECES
Color black
Product Description
YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 0
Technical Parameters
NO. OEM Common Sizes (MM)
1 TCY Φ300*Φ1121.2
2 FOSBER Φ291Φ2031.1
3 Mitsubishi Φ280Φ2021.4
4 Mitsubishi Φ280Φ1601.4
5 KSM Φ280Φ1681.4
6 Hsieh Φ270Φ168.31.4
7 Marquip Φ260Φ168.31.2
8 Isowa Φ260Φ1401.5
9 Justu Φ260Φ1581.3
10 Oranda Φ265Φ1121.4
11 Oranda Φ260Φ1121.4
12 Wanlian Φ260Φ1141.4
13 Peters Φ250Φ1500.8
14 Katuo Φ250Φ1301.3
15 Jingshan Φ250Φ1051.3
16 BHS Φ240Φ321.2
17 Agnati Φ240Φ1151
18 FOSBER Φ230Φ1101.1
19 Neide Φ230Φ1301.3
20 Katuo Φ230Φ1101.3
21 Justu Φ210Φ1221.3
22 Justu Φ200Φ122*1.3
NOTE: Customization available per customer drawing or actual sample
Material Composition and Properties
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
Pore Diameter Specifications
No. Pore Diameter (MM)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7
NOTE: Customization available per customer drawing or actual sample

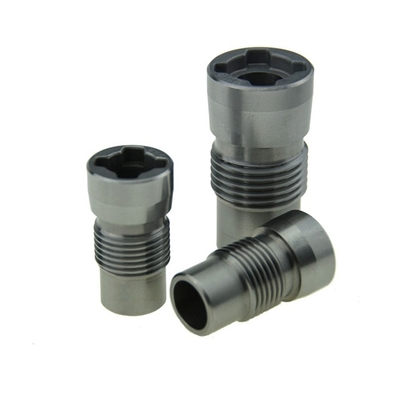

Product Images
YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 1 YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 2
About Our Company
YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 3
Trade Show Participation
YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 4 YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 5 YG8 Tungsten Carbide Nozzle for PDC Bits 7.14mm Pore Diameter 6
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
