Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals

Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals
Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals

Large Image :  Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $16-68
Contact Now

Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals

Description
Material: 100% Pure Tungsten Carbide Powder Surface: Glossy
Shape: Circle Color: Black
Grade: YG8/YG9C/YG11C Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
WC Composition: 93.5% Ni Composition: 6.0%
TaC Composition: 0.5% Size: Customer Required
MOQ: 5 PIECES
Highlight:

YG8/YG9C/YG11C Grade Tungsten Carbide Seal Ring

,

100% Pure Tungsten Carbide Powder Seal Ring

,

Lightweight Tungsten Carbide Seal Ring

Custom Cemented Tungsten Carbide Sealing Ring
Lightweight and high-strength tungsten carbide sealing rings designed for mechanical seals in demanding industrial applications.
Product Overview
Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 0 Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 1
Technical Specifications
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC A/B/C Densityg/cm³(±0.1) HardnessHRA(±0.5) TRS Mpa(min) Porosity
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample

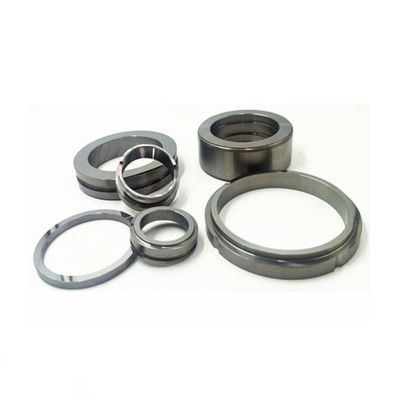

Product Images
Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 2 Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 3 Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 4
Additional Specifications
Grade Composition (% in weight) Physical Properties Equivalent domestic

WC Ni Ti Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity ABC Grain size (μm)
KDN6 93.8 6.0 0.2 14.6-15.0 89.5-90.5 1800 A02B00C00 0.8-2.0 YN6
KDN7 92.8 7.0 0.2 14.4-14.8 89.0-90.0 1900
0.8-1.6 YN7
KDN8 91.8 8.0 0.2 14.5-14.8 89.0-90.0 2200
0.8-2.0 YN8
KDN12 87.8 12.0 0.2 14.0-14.4 87.5-88.5 2600
0.8-2.0 YN12
KDN15 84.8 15.0 0.2 13.7-14.2 86.5-88.0 2800
0.6-1.5 YN15
Detailed Product Views
Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 5 Custom Tungsten Carbide Seal Ring with 14.90 g/cm³ Density and 2700 Mpa TRS for High-Performance Mechanical Seals 6
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
At Kedel Technology Co., Ltd. in Chengdu, we are committed to providing high-quality tungsten carbide sealing solutions. Your satisfaction is our top priority, and we appreciate your trust in our products.
