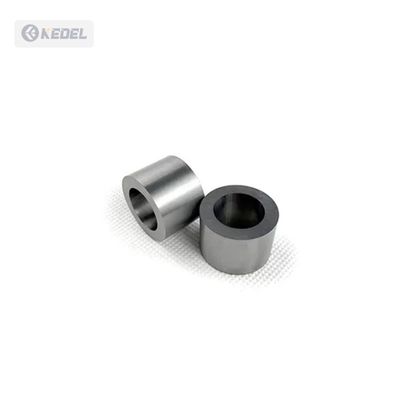

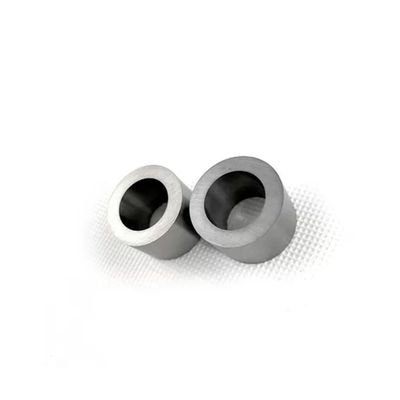

Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance

Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance

Large Image :  Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $7.90-21.90
Contact Now

Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Surface: Glossy Color: Black
Grade: YG8/YG9C/YG11C Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
Outer Diameter: 16.41 Mm Inner Diameter: 14.05 Mm
Pore Diameter: 12.70 Mm Length: 25.40 Mm
Step Length: 1.00 Mm
Highlight:

100% Pure Tungsten Carbide Powder Sleeve

,

YG8/YG9C/YG11C Grade Carbide Bushing

,

Custom Cemented Cylindrical Seal Sleeve

Custom Cemented Tungsten Carbide Alloy Cylindrical Seal Sleeve Bushing for High-Performance Pumps
Product Overview
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 0 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 1
Product Description
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 2 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 3
Product Parameters
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 4 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 5
Grade Composition (% in weight) Physical Properties Grain size (μm)

WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
NOTE: Customization available per customer drawing or actual sample
Standard Specifications
Specification OD (D:mm) ID (D1:mm) Pore (d:mm) Length (L;mm) Step length (L1:mm)
01 16.41 14.05 12.70 25.40 1.00
02 16.41 14.05 12.70 31.75 1.00
Product Images
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 6 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 7
Why Choose Our Products
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 8 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 9
About Our Company
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 10 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 11
Industry Exhibitions
Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 12 Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 13Custom Cemented Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for High Wear Resistance 14
At Kedel Technology Co., Ltd. in Chengdu, we value every customer interaction. We appreciate your consideration among many options. Your satisfaction drives our continuous improvement, and your positive feedback motivates us to excel.
Frequently Asked Questions
How to obtain an accurate quotation from Kedel Tools?
Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
How does our company ensure the quality of its products?
We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
How long does a typical production cycle take?
For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
What is our company's payment method?
We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
