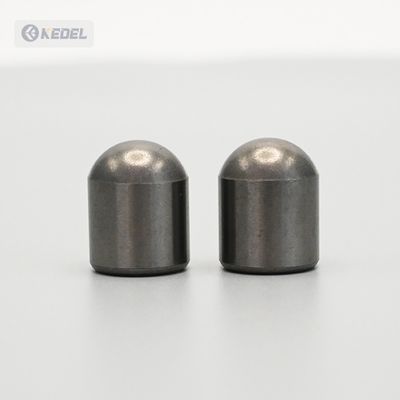

Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades

Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades
Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades

Large Image :  Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $1-6
Contact Now

Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Surface: Glossy Color: Black
Grade: YG8/YG9C/YG11C Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
WC Composition: 93.5% Ni Composition: 6.0%
TaC Composition: 0.5% Minimum TRS: 2000 Mpa
Maximum TRS: 3800 Mpa
Highlight:

Customizable Size Tungsten Carbide Buttons

,

Glossy Surface Cemented Carbide Buttons

,

Oil Drill Bits PDC Drill Bit Buttons

Hot Sales Cemented Tungsten Carbide Alloy Hemispherical Buttons Teeth for PDC Oil Drill Bit YG8 YG9 YG11 YG13
Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades 0
Product Description
Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades 1
Product Parameters
Hemispherical Tungsten Carbide Buttons for PDC Oil Drill Bits Made from 100% Pure Tungsten Carbide Powder in YG8 YG9 YG11 YG13 Grades 2
Grade Composition (% in weight) Physical Properties Grain size (μm)

WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample

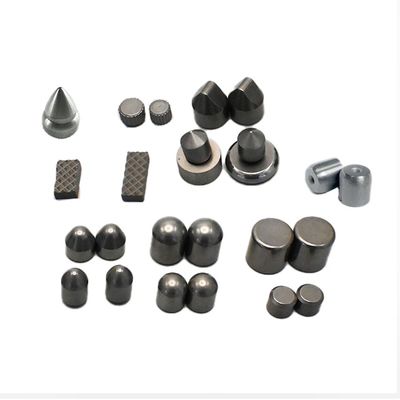

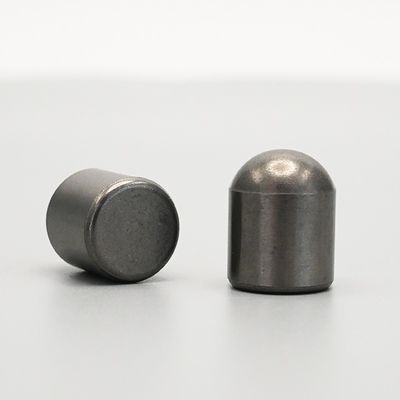

Details Images
