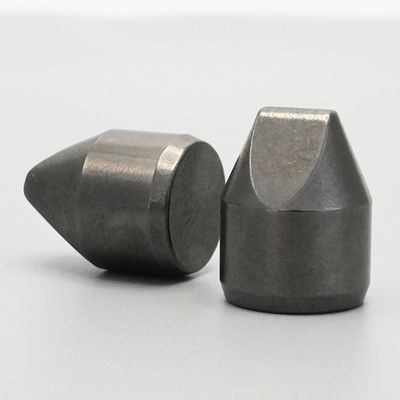

Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder

Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder
Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder

Large Image :  Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $1.10-5.20
Contact Now

Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder

Description
Material: 100% Pure Tungsten Carbide Powder Surface: Glossy
Shape: Cylindrical Grade: YG8/YG9C/YG11C
Density: 14.90 G/cm³ (YG6X) Hardness: 93.0 HRA (YG6X)
TRS: 2700 Mpa (YG6X) Porosity: A02/B00/C00
Grain Size: 0.6-0.8 μm (YG6X) WC Composition: 93.5% (YG6X)
Ni Composition: 6.0% (YG6X) TaC Composition: 0.5% (YG6X)
Color: Black Power Source: Electric
Engine Type: Electric
Highlight:

Custom Tungsten Carbide Buttons

,

High Wear Resistance Cemented Carbide Buttons

,

YG8 YG9 YG11 Carbide Mining Buttons

Custom Cemented Tungsten Carbide Alloy Cylindrical Cone Planar Spherical Buttons Teeth for the Oil and Gas Industry YG8 YG9 YG11
Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder 0 Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder 1
Product Description
Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder 2 Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder 3
Product Parameters
Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder 4 Custom Planar Cemented Carbide Buttons with Glossy Surface Made from 100% Pure Tungsten Carbide Powder 5
Grade Composition(% in weight) Physical Properties Grain size(μm)

WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
