Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA
Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA

Large Image :  Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $1-5
Contact Now

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG6 YG6X YG8 YG9C YG11C YG13C
Surface Finish: Glossy Shape: Plates
Color: Black Alloy Density Range: 12.00-14.90 G/cm³
Hardness Range: 86.5-93.6 HRA TRS Range: 2000-3800 Mpa
Porosity Grade: A02/B00/C00 Grain Size: 0.4-2.4 μm
WC Content: 69.2-94.0% Ni Content: 6.0-15.0%
Ti Content: 0-7.4% TaC Content: 0-13.8%
Customizable Size: Yes
Highlight:

YG6 Alloy Tungsten Carbide Brazed Tips

,

Customized Size Brazing Head Tip Blade

,

High Wear Resistance Carbide Alloy Brazed Tips

Customized High-Quality Tungsten Carbide Alloy Brazing Head Tip Blade for Filling Weld Seams and Brazing Copper Pipes YG6

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 0
Product Description
Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 1
Product Parameters

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 2
Grade Composition(% in weight)

Physical Properties

Grain size(μm)

WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample

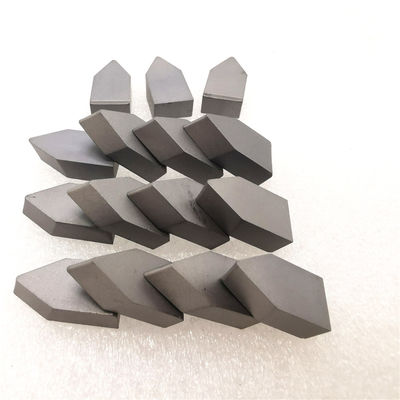

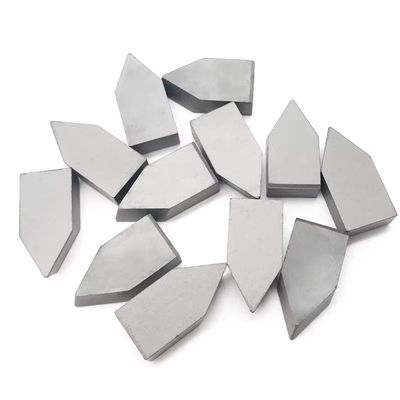

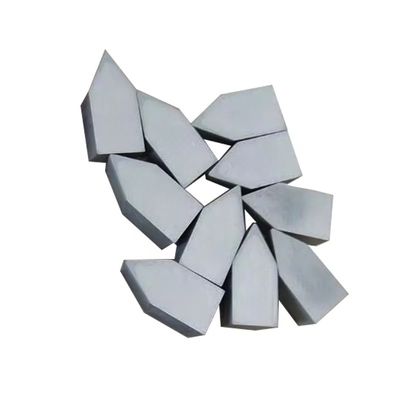

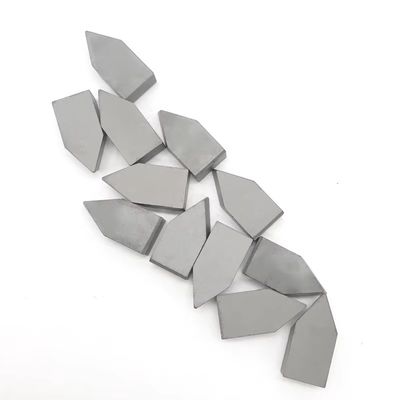

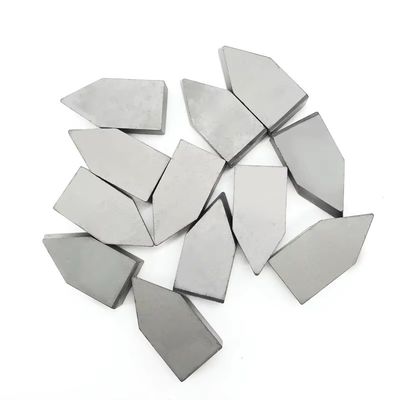

Details Images
Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 3 Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 3
Why Choose Us

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 5
Company Profile

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 6
Exhibition

Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 7
Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 8
Customizable Size Tungsten Carbide Brazed Tips with Density Range 12.00-14.90 g/cm³ and Hardness Range 86.5-93.6 HRA 9

FAQ

Q: How to obtain an accurate quotation from Kedel Tools?

A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

Q: How does our company ensure the quality of its products?

A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q: How long does a typical production cycle take?

A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q: What is our company’s payment method?

A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
