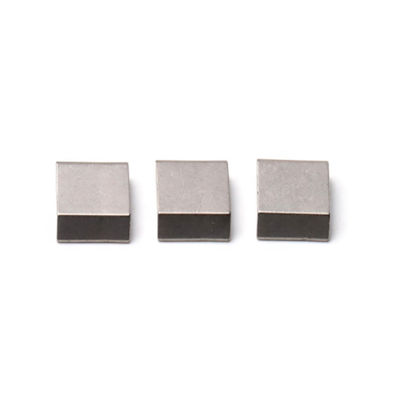

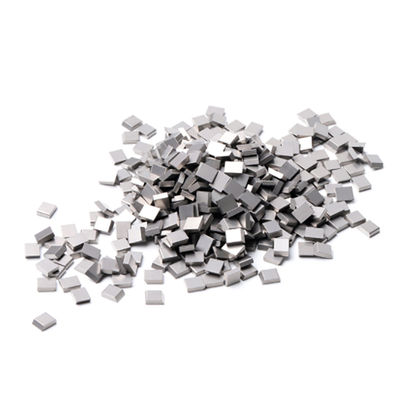

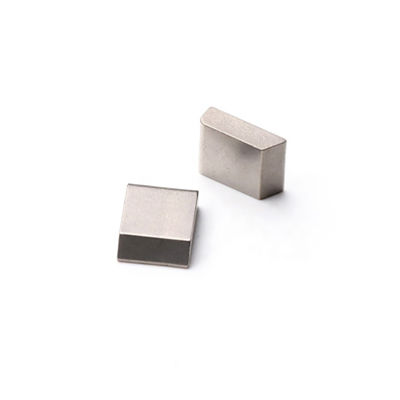

Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting

Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting
Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting

Large Image :  Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.40-1
Contact Now

Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish: Glossy Shape: Flaky
Density Range: 12.00-14.90 G/cm³ Hardness Range: 86.5-93.6 HRA
TRS Range: 2000-4200 MPa Porosity Grade: A02/B00/C00
Grain Size: 0.4-2.4 μm WC Content: 69.2-94.0%
Ni Content: 6.0-15.0% Ti Content: 0-7.4%
TaC Content: 0-13.8% Power Source: Electric
Engine Type: Electric
Highlight:

Hardness YG8 Tungsten Carbide Brazed Tips

,

Compression Resistance Carbide Tips and Inserts

,

Square Shape Stone Cutting Blade

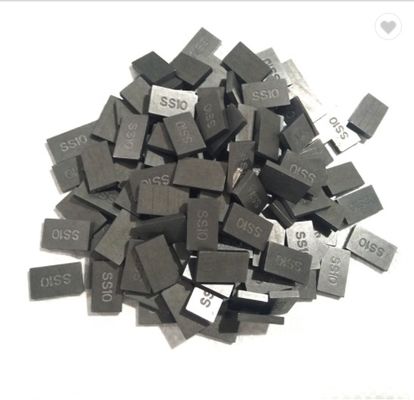

Customized Tungsten Carbide Alloy Square Stone Cutter With High Wear Resistance Compression Resistance and Hardness YG8 SS10
Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting 0 Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting 1
Product Description
Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting 2 Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting 3
Product Parameters
Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting 4 Customized Tungsten Carbide Brazed Tips with Hardness YG8 Compression Resistance and Square Shape for Stone Cutting 5
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.10420092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
