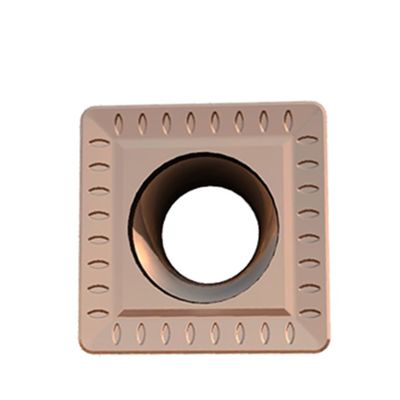

SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning

SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning
SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning

Large Image :  SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: SPMT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.80-1.95
Contact Now

SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning

Description
Coating: PVD Hardness: HRA90
Usage: External Turning Tool Material: Tungsten Carbide
HRC: 45HRC, 55HRC, 60HRC, 65HRC Workpiece Material: Stainless Steel And Steel
Model: SPMT Coating Color: PVD And CVD
Shape: Square Angle: 11°
Tolerance: ±0.08-±0.18 Chip Breaker: Single-sided Groove
Length: 12.7 Mm Width: 4.76 Mm
Hole Diameter: 5.5 Mm
Highlight:

HRA90 Hardness CNC Insert

,

45HRC-65HRC Carbide CNC Insert

,

3-Year Warranty CNC Milling Insert

High Quality SPMT CNC Insert
Product Overview

Universally applicable across machinery, automotive, aerospace, mold, and electronics industries for high-precision machining operations.

SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 0 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 1 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 2
Key Features
  • Automated Processing: CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming.
  • High Stability: Mitigates cutting vibrations and uneven surface quality, enhancing overall machining process quality.
  • Wide Application Fields: Suitable for industries demanding high precision and efficiency including machinery manufacturing, aerospace, and electronics.
SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 3 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 4
Technical Specifications
SPMT Value
S square
P 11°
M ±0.08-±0.18
T holes single-sided chip breaker groove
SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 5 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 6
Dimensional Data
Type L (mm) ΦI#C (mm) S (mm) Φd (mm) R
SPMT120408-OPM 12.7 12.7 4.76 5.5 0.8
SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 7 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 8
SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 9 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 10 SPMT Model CNC Insert with 11° Angle and ±0.08-±0.18 Tolerance for Precision Turning 11

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
