WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

Large Image :  WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: WPGT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.99-3.14
Contact Now

WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining

Description
Coating: PVD Hardness: HRA90
Material: Tungsten Carbide HRC: 45HRC, 55HRC, 60HRC, 65HRC
Model: WPGT Coating Color: PVD And CVD
Angle W: 80° Angle P: 11°
Tolerance G: ±0.025 Chip Breaker: Single-sided Groove
Diameter ΦI#C: 9.525mm, 12.85mm Thickness S: 4.2mm, 6.35mm
Hole Diameter Φd: 4.4mm, 5.5mm Corner Radius R: 1.5mm
Angle α°: 11°
Highlight:

HRA90 Hardness CNC Milling Insert

,

3 Years Warranty Carbide CNC Insert

,

Longer Working Life Tungsten Carbide Insert

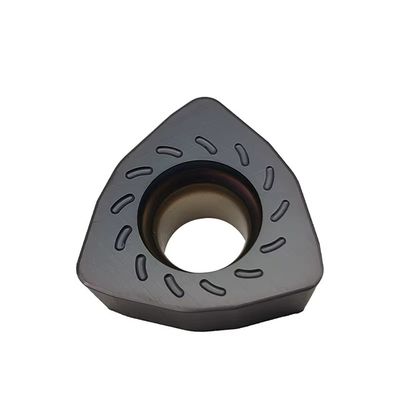

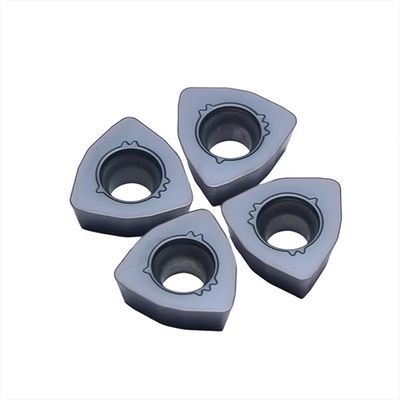

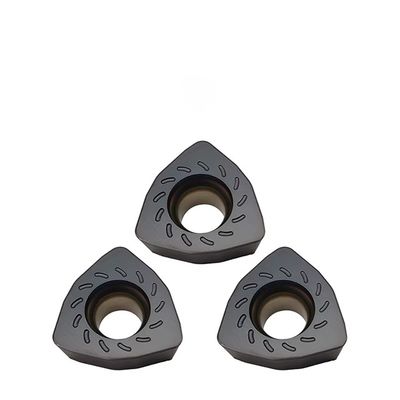

WPGT060415-ZSR CNC Fast Feed Milling Insert WPGT0060415 Uses Carbide Coated Milling Steel Stainless Steel Castings
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 0 WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 1 WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 2
Key Features
  • Automated Processing: CNC tool inserts possess automation capabilities, facilitating automated machining operations through programming. WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 3
  • High Stability: This stability can mitigate issues such as cutting vibrations and uneven surface quality, thereby enhancing machining process quality. WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 4
  • Wide Application Fields: Suitable for industries demanding high precision and efficiency, including machinery manufacturing, aerospace, and electronics. WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 5
Technical Specifications
WPGT Code Value
W 80°
P 11°
G ±0.025
T Hole single-sided chip breaker groove
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 6 WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 7

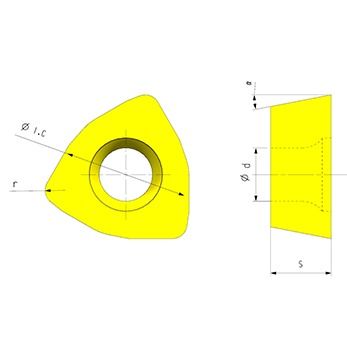

Dimensional Specifications
Type ΦI#C (mm) S (mm) Φd (mm) R (mm) α°
WPGT060415-ZSR 9.525 4.2 4.4 1.5 11°
WPGT080615-ZSR 12.85 6.35 5.5 1.5 11°
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 8 WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 9 WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 10
WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 11 WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 12WPGT Model CNC Milling Insert with 9.525mm Diameter and 4.2mm Thickness for High Precision Machining 13

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
