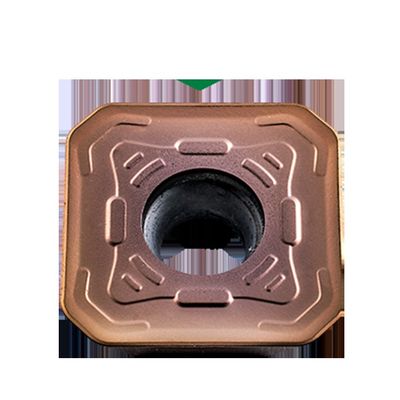

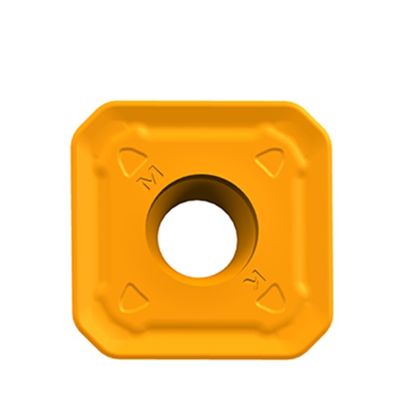

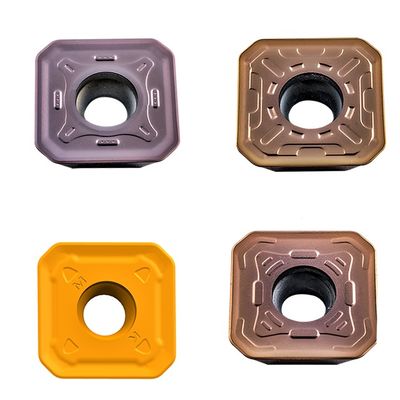

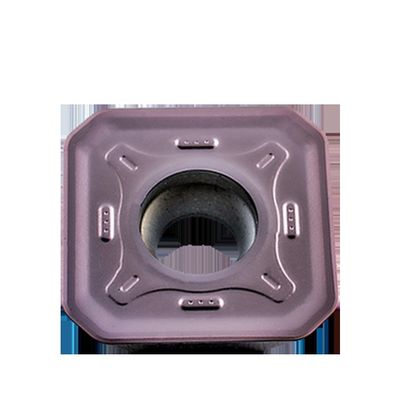

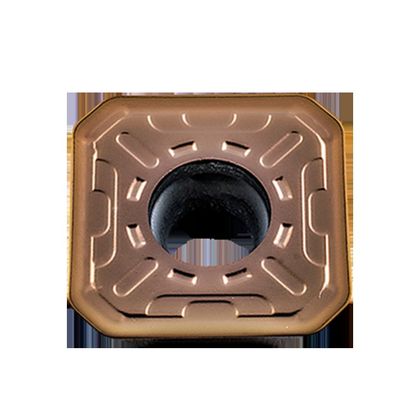

HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining

HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining

Large Image :  HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: SEET
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1-2
Contact Now

HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining

Description
Coating: PVD Hardness: HRA90
Material: Tungsten Carbide HRC: 45HRC, 55HRC, 60HRC, 65HRC
MOQ: 10 Pieces Model: SEET
Coating Color: PVD And CVD Shape: Square
Angle: 20° Tolerance: ±0.025
Chip Breaker: Single-sided Groove Length (L): 13.308mm, 13.4mm
Width (S): 4.04mm, 3.97mm Hole Diameter (Φd): 4.1mm
Corner Radius (R): 0.8mm, 2.55mm
Highlight:

HRA90 Hardness CNC Milling Insert

,

45HRC-65HRC Carbide CNC Insert

,

3 Years Warranty Tungsten Carbide Insert

CNC SEET1203 Milling Insert
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 0
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 1
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 2
Key Features
Automated Processing

CNC tool inserts feature automation capabilities, enabling efficient automated machining operations through precise programming.

HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 3
High Stability

Engineered for exceptional stability to minimize cutting vibrations and ensure uniform surface quality, resulting in superior machining precision.

HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 4
Wide Application Fields

Ideal for industries requiring high precision and efficiency, including:

  • Machinery manufacturing
  • Aerospace components
  • Electronics production
  • Precision engineering
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 5
Technical Specifications
SEET Value
S Square
E 20°
E ±0.025
T Holes with single-sided chip breaker groove
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 6

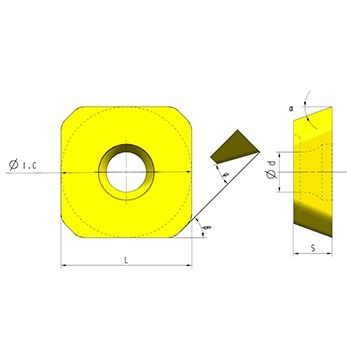

Dimensional Specifications (mm)
Type L ΦI#C S Φd R
SEET12T3-OKM 13.308 13.308 4.04 4.1 0.8
SEET12T3-OPR 13.4 13.4 3.97 4.1 2.55
SEET12T3-OPF 13.4 13.4 3.97 4.1 2.55
SEET120308PER-OPM 13.308 13.308 4.04 4.1 0.8
SEET12T3-OPM 13.4 13.4 3.97 4.1 2.55
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 7
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 8
HRA90 Hardness 45HRC-65HRC CNC Milling Insert with 3 Years Warranty for Precision Machining 9
