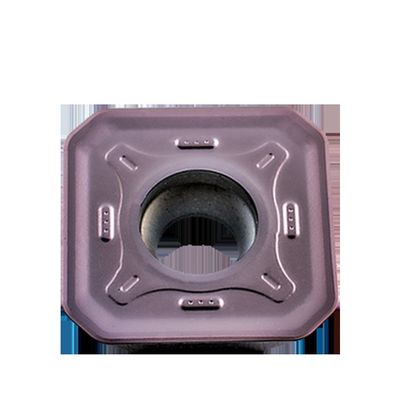

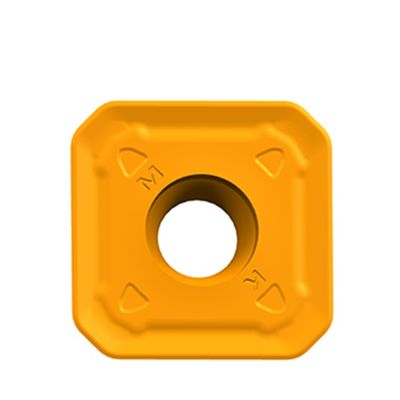

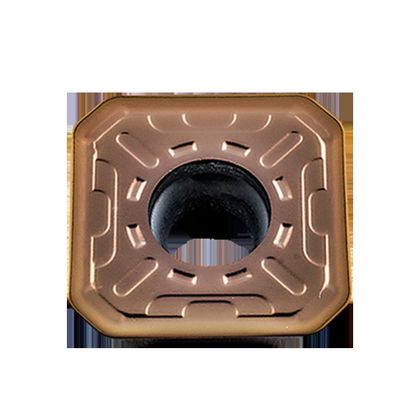

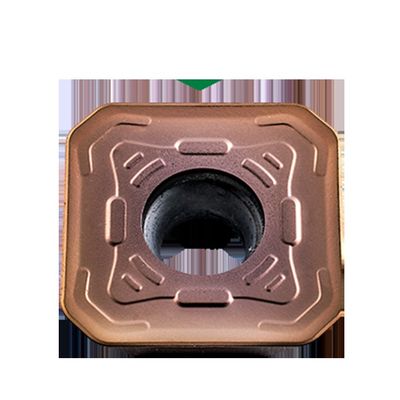

Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability

Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability

Large Image :  Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: SEET
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1-2
Contact Now

Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability

Description
Coating: PVD Hardness: HRA90
Material: Tungsten Carbide HRC: 45HRC, 55HRC, 60HRC, 65HRC
MOQ: 10 Pieces Model: SEET
Coating Color: PVD And CVD Shape: Square
Angle: 20° Tolerance: ±0.025
Chip Breaker: Single-sided Groove Length (L): 13.308mm, 13.4mm
Width (S): 4.04mm, 3.97mm Hole Diameter (Φd): 4.1mm
Corner Radius (R): 0.8mm, 2.55mm
Highlight:

HRA90 Hardness CNC Milling Insert

,

45HRC-65HRC Carbide CNC Insert

,

3 Years Warranty Tungsten Carbide Insert

CNC SEET1203 Milling Insert
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 0 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 1 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 2
Automated Processing
CNC tool inserts feature automation capabilities, enabling efficient automated machining operations through programmable control.
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 3
High Stability
The superior stability of these inserts reduces cutting vibrations and improves surface finish quality, enhancing overall machining precision.
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 4
Wide Application Fields
These CNC tool inserts are ideal for industries requiring high precision and efficiency, including:
  • Machinery manufacturing
  • Aerospace components
  • Electronics production
  • Precision engineering applications
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 5
Technical Specifications
SEET Value
S Square
E 20°
E ±0.025
T Holes single-sided chip breaker groove
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 6 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 7

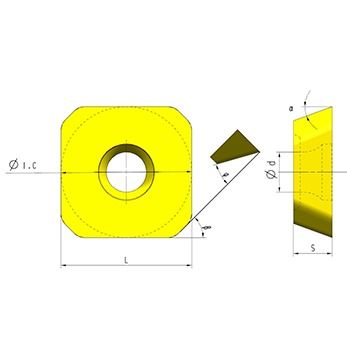

Dimensional Data
Type L (mm) ΦI#C (mm) S (mm) Φd (mm) R (mm)
SEET12T3-OKM 13.308 13.308 4.04 4.1 0.8
SEET12T3-OPR 13.4 13.4 3.97 4.1 2.55
SEET12T3-OPF 13.4 13.4 3.97 4.1 2.55
SEET120308PER-OPM 13.308 13.308 4.04 4.1 0.8
SEET12T3-OPM 13.4 13.4 3.97 4.1 2.55
Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 8 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 9 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 10 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 11 Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 12Precision CNC Milling Insert with 20° Angle ±0.025 Tolerance and 13.308mm Length for High Stability 13

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
