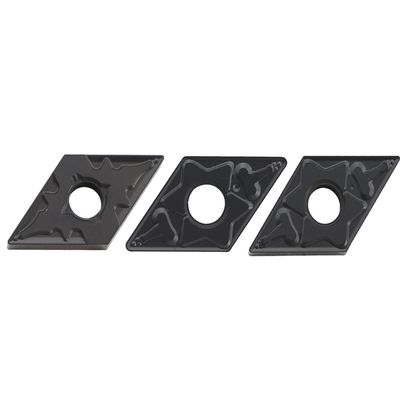

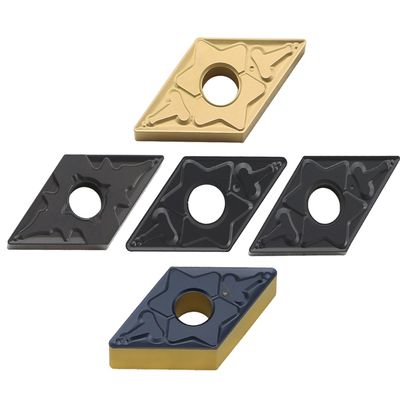

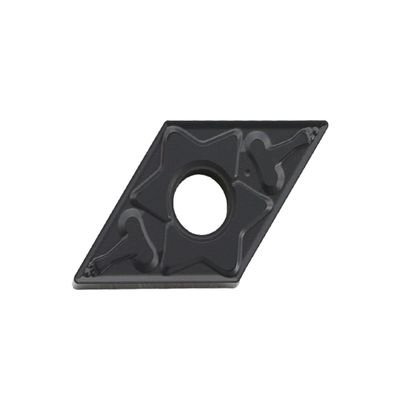

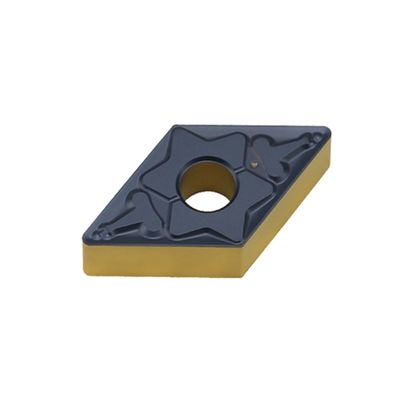

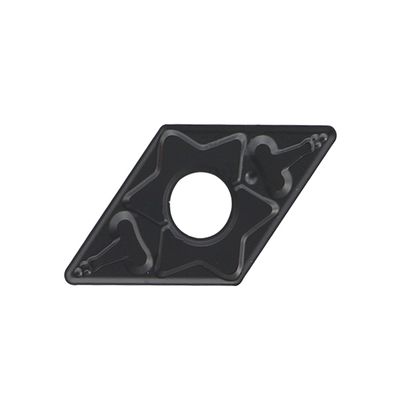

High Efficiency HRA90 Hardness CNC Insert with 3 Years Warranty for Precision Steel Cutting on CNC Lathes

Large Image : High Efficiency HRA90 Hardness CNC Insert with 3 Years Warranty for Precision Steel Cutting on CNC Lathes

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Model Number:	DNMG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$0.50-0.70

Contact Now

High Efficiency HRA90 Hardness CNC Insert with 3 Years Warranty for Precision Steel Cutting on CNC Lathes

Description

Coating:	PVD	Hardness:	HRA90
Material:	Tungsten Carbide	Model:	DNMG
Angle D:	55°	Angle N:	0°
Tolerance M:	±0.08-±0.18	Hole Type:	G
Chip Breaker:	Double Sided Groove	Diameter ϕd:	4.76-6.35 Mm
Radius R:	0.4-1.6 Mm	Thickness S:	3.81-5.16 Mm
HRC Range:	45HRC-65HRC	Workpiece Material:	Stainless Steel, Steel
MOQ:	10 Pieces
Highlight:	HRA90 Hardness CNC Insert , 3 Years Warranty Carbide Insert , High Efficiency Turning Insert

High Efficiency DNMG CNC Insert with Precision Ground Carbide

Ideal for steel cutting in auto manufacturing on CNC lathes, this precision carbide insert delivers superior performance and durability.

Key Features

Automated processing: Designed for CNC programming compatibility to facilitate automated machining operations
High stability: Reduces cutting vibrations and improves surface finish quality
Wide application: Suitable for precision industries including automotive, aerospace, and electronics manufacturing
Double sided chip breaker groove: Enhances chip control and tool life

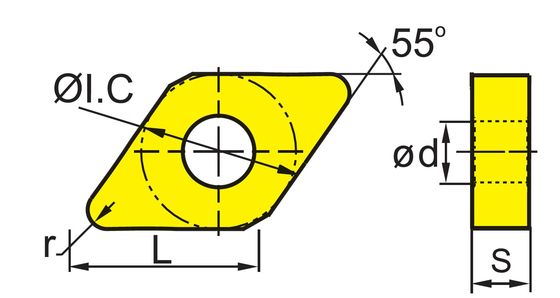

DNMG Specifications

55°

0°

±0.08-±0.18

Holes

Dimensions Table

Type	S (mm)	ϕd (mm)	r (mm)
DNMG150404-OPF	4.76	5.16	0.4
DNMG150408-OPF	4.76	5.16	0.8
DNMG150604-OPF	6.35	5.16	0.4
DNMG150608-OPF	6.35	5.16	0.8
DNMG150604-OMF	6.35	5.16	0.4
DNMG150608-OMF	6.35	5.16	0.8
DNMG110404-OPM	4.76	3.81	0.4
DNMG110408-OPM	4.76	3.81	0.8
DNMG110412-OPM	4.76	3.81	1.2
DNMG150404-OPM	4.76	5.16	0.4
DNMG150408-OPM	4.76	5.16	0.8
DNMG150412-OPM	4.76	5.16	1.2
DNMG150604-OPM	6.35	5.16	0.4
DNMG150608-OPM	6.35	5.16	0.8
DNMG150612-OPM	6.35	5.16	1.2
DNMG110404-OMM	4.76	3.81	0.4
DNMG110408-OMM	4.76	3.81	0.8
DNMG150604-OMM	6.35	5.16	0.4
DNMG150608-OMM	6.35	5.16	0.8
DNMG150612-OMM	6.35	5.16	1.2
DNMG150408-OPR	4.76	5.16	0.8
DNMG150612-OPR	6.35	5.16	1.2
DNMG150616-OPR	6.35	5.16	1.6
DNMG110408	4.76	3.81	0.8
DNMG150612	6.35	5.16	1.2
DNMG110404-MSF	4.76	3.81	0.4
DNMG150404-MSF	4.76	5.16	0.4
DNMG150408-MF	4.76	5.16	0.8
