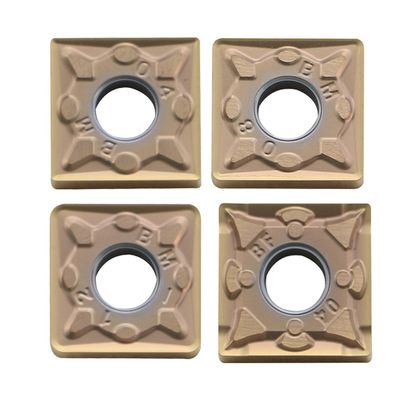

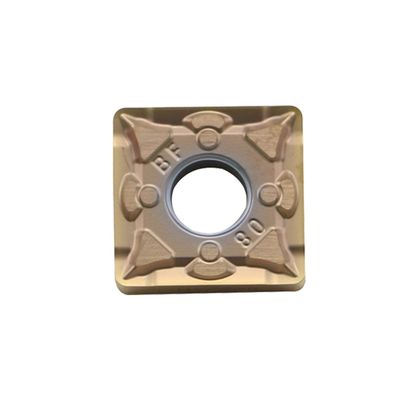

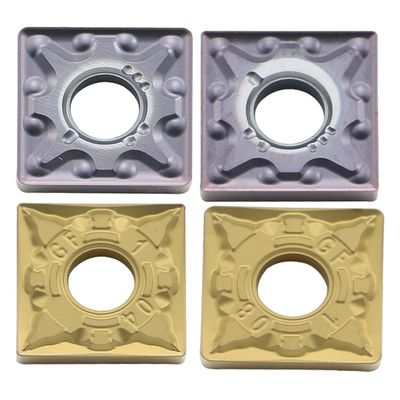

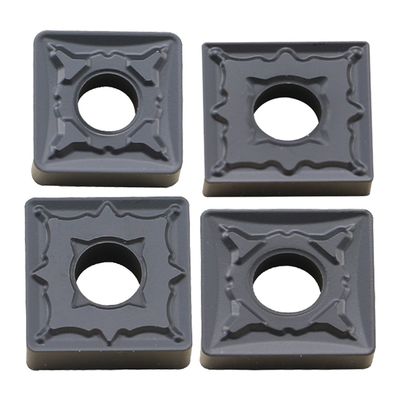

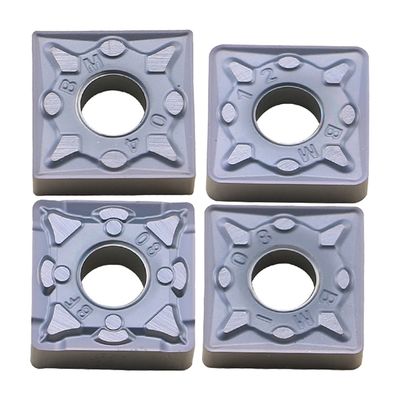

HRA90 Hardness 45HRC-65HRC CNC Insert with 3 Years Warranty for External Turning Tool in CNC Machining Center

Large Image : HRA90 Hardness 45HRC-65HRC CNC Insert with 3 Years Warranty for External Turning Tool in CNC Machining Center

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Model Number:	SNMG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$0.80-1.20

Contact Now

HRA90 Hardness 45HRC-65HRC CNC Insert with 3 Years Warranty for External Turning Tool in CNC Machining Center

Description

Coating:	PVD	Hardness:	HRA90
Material:	Tungsten Carbide	HRC:	45HRC, 55HRC, 60HRC, 65HRC
Model:	SNMG	Shape:	Square
Angle:	0°	Tolerance:	±0.08-±0.18
Hole Type:	Holes	Chip Breaker:	Double Sided Groove
Diameter (ϕd):	4.76mm, 5.16mm, 6.35mm, 7.94mm	Radius (r):	0.4mm, 0.8mm, 1.2mm, 1.6mm
Workpiece Material:	Stainless Steel, Steel	MOQ:	10 Pieces
Coating Color:	PVD, CVD
Highlight:	HRA90 Hardness CNC Insert , 45HRC-65HRC Turning Insert , 3 Years Warranty Carbide Insert

Strong Stability SNMG CNC Insert with Carbide Property for Cast Iron Machining

High-performance carbide CNC inserts designed for precision machining of cast iron on grinding machines in general machinery applications.

Key Features

Automated Processing

CNC tool inserts feature automation capabilities, enabling efficient automated machining operations through precise programming.

High Stability

Exceptional stability reduces cutting vibrations and improves surface finish quality, enhancing overall machining precision.

Wide Application Fields

Ideal for industries requiring high precision and efficiency, including:

Machinery manufacturing
Aerospace components
Electronics production
General industrial applications

SNMG Insert Specifications

Code	Value
S	Square
N	0°
M	±0.08-±0.18
G	Holes
Double sided chip breaker groove

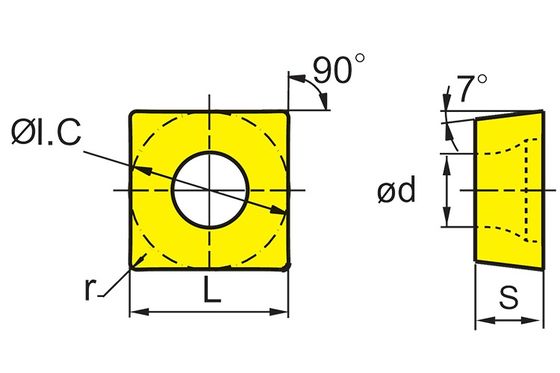

Dimensional Specifications

Type	Dimensions (mm)	ϕd	r
SNMG120404-OPF	4.76	5.16	0.4
SNMG120408-OPF	4.76	5.16	0.8
SNMG120404-OPM	4.76	5.16	0.4
SNMG120408-OPM	4.76	5.16	0.8
SNMG120412-OPM	4.76	5.16	1.2
SNMG150608-OPM	6.35	6.35	0.8
SNMG150612-OPM	6.35	6.35	1.2
SNMG190612-OPM	6.35	7.94	1.2
SNMG120408-OPR	4.76	5.16	0.8
SNMG120412-OPR	4.76	5.16	1.2
SNMG150612-OPR	6.35	6.35	1.2
SNMG190612-OPR	6.35	7.94	1.2
SNMG190616-OPR	6.35	7.94	1.6
SNMG120408-OMF	4.76	5.16	0.8
SNMG120404-OMM	4.76	5.16	0.4
SNMG120408-OMM	4.76	5.16	0.8
SNMG120412-OMM	4.76	5.16	1.2
SNMG120408-MF	4.76	5.16	0.8
