SNMG Model Carbide CNC Insert with 0° Angle and ±0.08-±0.18 Tolerance for 4.76mm-7.94mm Diameter Machining

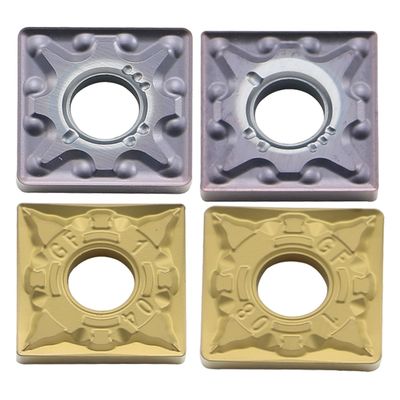

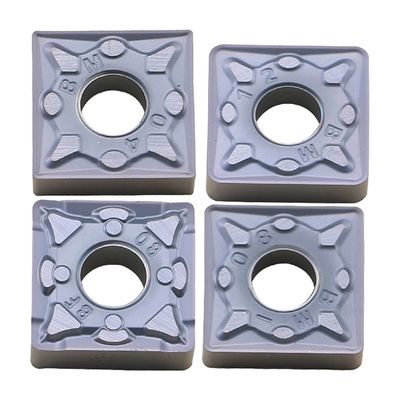

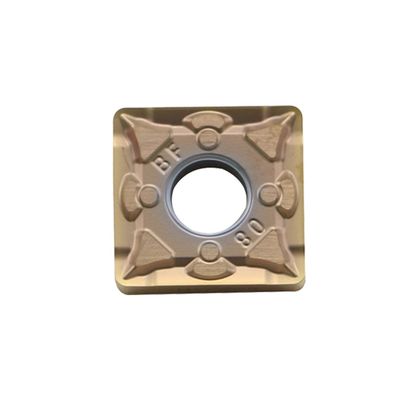

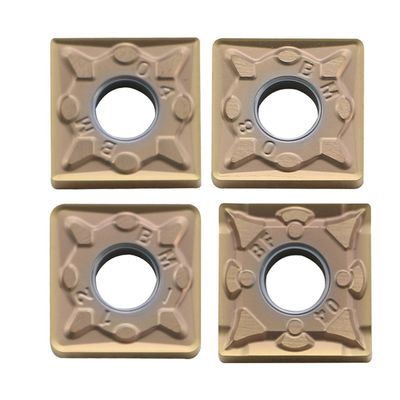

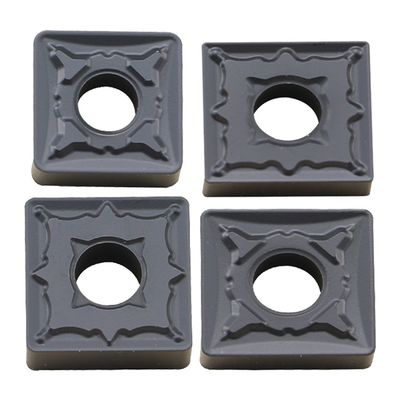

Large Image : SNMG Model Carbide CNC Insert with 0° Angle and ±0.08-±0.18 Tolerance for 4.76mm-7.94mm Diameter Machining

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Model Number:	SNMG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$0.80-1.20

Contact Now

SNMG Model Carbide CNC Insert with 0° Angle and ±0.08-±0.18 Tolerance for 4.76mm-7.94mm Diameter Machining

Description

Coating:	PVD	Hardness:	HRA90
Material:	Tungsten Carbide	HRC:	45HRC, 55HRC, 60HRC, 65HRC
Model:	SNMG	Shape:	Square
Angle:	0°	Tolerance:	±0.08-±0.18
Hole Type:	Holes	Chip Breaker:	Double Sided Groove
Diameter (ϕd):	4.76mm, 5.16mm, 6.35mm, 7.94mm	Radius (r):	0.4mm, 0.8mm, 1.2mm, 1.6mm
Workpiece Material:	Stainless Steel, Steel	MOQ:	10 Pieces
Coating Color:	PVD, CVD
Highlight:	HRA90 Hardness CNC Insert , 45HRC-65HRC Turning Insert , 3 Years Warranty Carbide Insert

Strong Stability SNMG CNC Insert with Carbide Property for Cast Iron Machining

Key Features

Automated processing capabilities for CNC machining operations

High stability design reduces cutting vibrations and improves surface quality

Wide application in precision industries including machinery manufacturing, aerospace, and electronics

SNMG Insert Specifications

Code	Meaning
S	Square
N	0°
M	±0.08-±0.18
G	Holes

Double sided chip breaker groove design

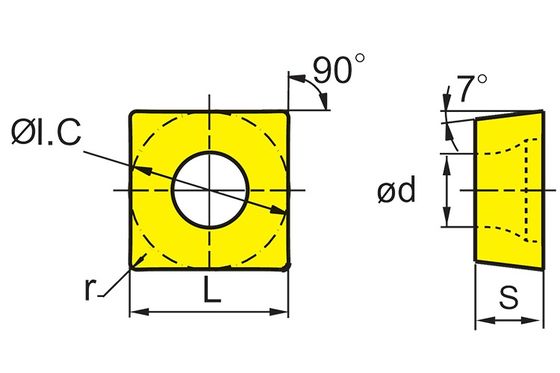

Dimensional Specifications

Type	S (mm)	ϕd (mm)	r (mm)
SNMG120404-OPF	4.76	5.16	0.4
SNMG120408-OPF	4.76	5.16	0.8
SNMG120404-OPM	4.76	5.16	0.4
SNMG120408-OPM	4.76	5.16	0.8
SNMG120412-OPM	4.76	5.16	1.2
SNMG150608-OPM	6.35	6.35	0.8
SNMG150612-OPM	6.35	6.35	1.2
SNMG190612-OPM	6.35	7.94	1.2
SNMG120408-OPR	4.76	5.16	0.8
SNMG120412-OPR	4.76	5.16	1.2
SNMG150612-OPR	6.35	6.35	1.2
SNMG190612-OPR	6.35	7.94	1.2
SNMG190616-OPR	6.35	7.94	1.6
