4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications
4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications

Large Image :  4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-3

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications

Description
Flute Count: 4 Material: Tungsten Carbide
Grain Size: 0.6um Shape: Flat

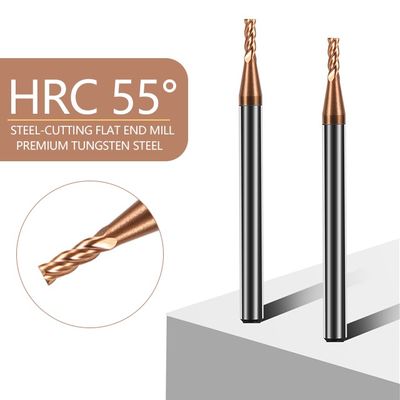

Hardness: 55HRC Helix Angle: 35 Degree
Coating Types: Tin, AlTin, Tia In, Ticn Cutting Edge: 55-Degree Flat
Cutting Diameter: 1.1-11.5mm Shank Diameter: 4-12mm
Overall Length: 50-75mm Flute Type: Chip Flute
Color: Slivery Suitable Materials: CHISEL TOOL STEEL, ORDINARY STEEL PARTS, COPPER ALLOY, CAST IRON
Machine Compatibility: CNC-Production-Center, Engraving-Machine, CNC-Milling-Machine
Highlight:

55-Degree Flat Cutting Edge End Mill

,

35-Degree Helix Angle Carbide Milling Tool

,

Tungsten Carbide Material Flat End Mill

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge
Key Specifications
Flutes 4
Chip Flute 4
Coating Not specified
Shape Flat
Angle 35°
HRC 55°
4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 3

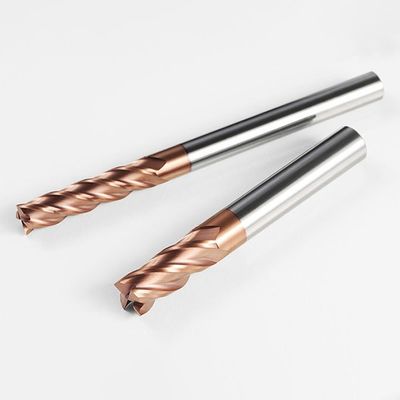

Tungsten Carbide Construction

This milling cutter employs tungsten steel (carbide) as its primary material. Tungsten steel is characterized by its high hardness, wear resistance, and red hardness, enabling the cutter to maintain a long service life during high-speed and heavy-duty cutting operations.

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 4

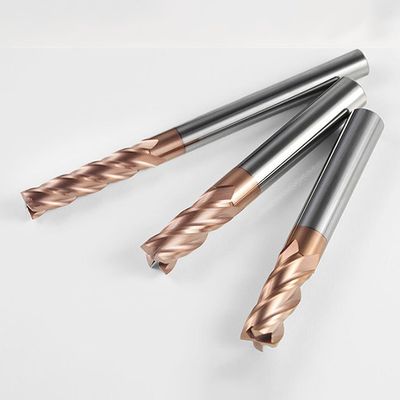

Four-Flute Design Benefits

The four-flute design distributes cutting force evenly during operation, reducing vibration while enhancing machining accuracy and surface quality. This configuration also improves cutting efficiency.

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 5
Coating Technology

The optional coating enhances hardness and wear resistance while reducing friction and heat generation during cutting. This extends tool life and improves corrosion/oxidation resistance.

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 6

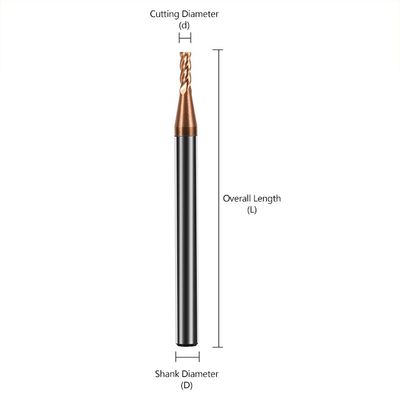

Size Specifications
Number of Flutes Cutting Diameter (mm) Shank Diameter (mm) Overall Length (mm)
4 1.1 4 50
4 1.2 4 50
4 1.3 4 50
4 1.4 4 50
4 1.5 4 50
4 1.6 4 50
4 1.7 4 50
4 1.8 4 50
4 1.9 4 50
4 2.1 4 50
4 2.2 4 50
4 2.3 4 50
4 2.4 4 50
4 2.6 4 50
4 2.7 4 50
4 2.8 4 50
4 2.9 4 50
4 3.1 4 50
4 3.2 4 50
4 3.3 4 50
4 3.4 4 50
4 3.6 4 50
4 3.7 4 50
4 3.8 4 50
4 3.9 4 50
6 4.5 6 50
6 5.5 6 50
8 6.5 8 60
8 7.5 8 60
10 8.5 10 75
10 9.5 10 75
12 10.5 12 75
12 11.5 12 75
Customization available according to customer drawings and specifications.
4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 7 4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications 8
