0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining

0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining
0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining

Large Image :  0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2-4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.80-3
Contact Now

0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining

Description
Flute Count: 2-4 Material: Tungsten Carbide
Grain Size: 0.6um Shape: Flat
Helix Angle: 35 Degree Hardness HRC: 55
Coating Types: Tin, AlTin, Tia In, Ticn Cutting Diameter: 1-20mm
Shank Diameter: 3-20mm Overall Length: 50-200mm
Flute Design: 55-Degree Deep Groove Chip Flute: 2-4
Neck Design: Long Neck Cutting Edge: Extended
Suitable Materials: CHISEL TOOL STEEL, ORDINARY STEEL PARTS, COPPER ALLOY, CAST IRON
Highlight:

2-4 Flute Tungsten Carbide End Mill

,

55-Degree Flat Bottom End Mill

,

35° Helix Angle Carbide End Mill

2-4-Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom
Product Overview
0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 0 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 1 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 2
Technical Specifications
Parameter Value
Flutes 2-4
Chip Flute 2-4
Coating -
Shape Flat
Angle 35°
HRC 55°
0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 3
Specialized Design Features
Optimized for Aluminum Alloy

This milling cutter is specifically engineered for aluminum alloy processing. Its material composition, geometry, and coating have been optimized to ensure superior cutting performance and extended tool life when machining aluminum alloys.

0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 4
55-Degree Deep Groove Flat Blade

The cutting edge features a 55-degree deep groove design that enhances chip removal efficiency, reduces friction between tool and workpiece, and improves both cutting efficiency and machining quality.

0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 5
Long Neck with Extended Cutting Edge

The long neck design enables deep workpiece penetration, making it ideal for hard-to-reach areas or deep machining applications. The extended cutting edge increases material removal rate per pass for enhanced processing efficiency.

0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 6

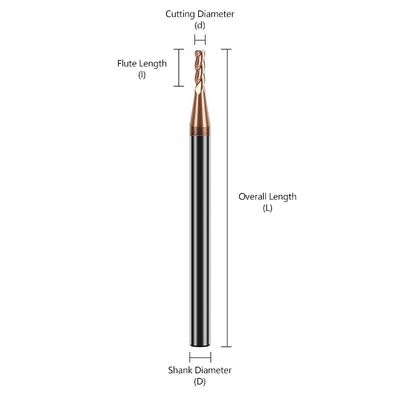

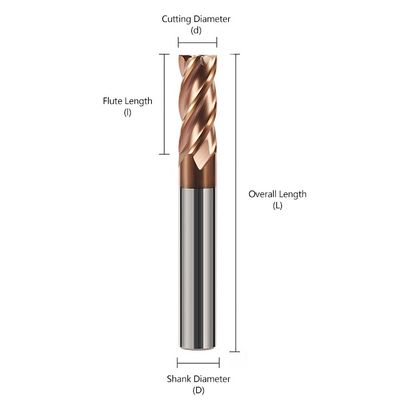

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Radius of Fillet (R) Shank Diameter (D) Overall Length (L)
1 3 4 50
1.5 4.5 4 50
2 6 4 50
2.5 7.5 4 50
3 8 3 50
3 9 4 50
3 9 3 50
4 12 4 50
5 13 6 50
5 13 5 50
6 15 6 50
77 20 8 60
8 20 8 60
9 25 10 75
10 25 10 75
11 30 12 75
12 30 12 75
13 45 14 100
14 45 14 100
15 45 16 100
16 45 16 100
18 45 18 100
20 45 20 100
Custom specifications available upon request with technical drawings.
0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 7 0.6um Grain Size Tungsten Carbide End Mill with 1-20mm Cutting Diameter and 55-Degree Deep Groove for CNC Machining 8

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
