2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Large Image :  2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2-4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.80-3
Contact Now

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Description
Flute Count: 2-4 Material: Tungsten Carbide
Grain Size: 0.6um Shape: Flat

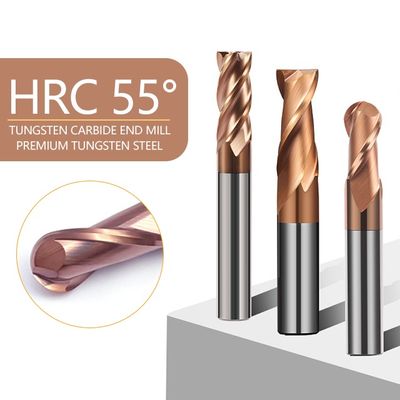

Helix Angle: 35 Degree Hardness HRC: 55
Coating Types: Tin, AlTin, Tia In, Ticn Cutting Diameter: 1-20mm
Shank Diameter: 3-20mm Overall Length: 50-200mm
Flute Design: 55-Degree Deep Groove Chip Flute: 2-4
Neck Design: Long Neck Cutting Edge: Extended
Suitable Materials: CHISEL TOOL STEEL, ORDINARY STEEL PARTS, COPPER ALLOY, CAST IRON
Highlight:

2-4 Flute Tungsten Carbide End Mill

,

55-Degree Flat Bottom End Mill

,

35° Helix Angle Carbide End Mill

2-4-Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom, Coated, Extended Ball-Nose, Suitable for CNC Machining
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 0 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 1 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 2
Parameter Value
Flutes 2-4
Chip Flute 2-4
Coating /
Shape Flat
Angle 35°
HRC 55°
Special End Mill for Aluminum Alloy

This milling cutter is specifically optimized for aluminum alloy processing, with material composition, geometry, and coating engineered to deliver superior cutting performance and extended tool life when machining aluminum components.

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 3

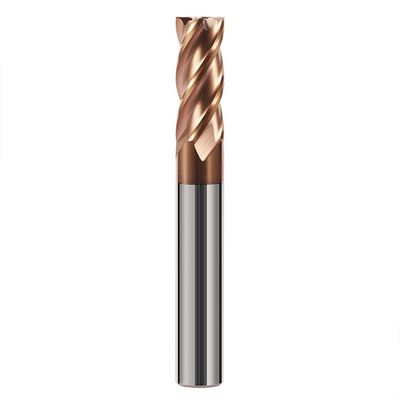

55-Degree Deep Groove Flat Blade Design

The specialized 55-degree deep groove cutting edge geometry promotes efficient chip evacuation during operation, minimizing tool-workpiece friction to enhance both cutting efficiency and surface finish quality.

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 4
Long Neck with Extended Cutting Edge

The extended neck design enables deep cavity machining, while the lengthened cutting edge increases material removal rates per pass, significantly improving productivity for deep-profile milling applications.

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 5

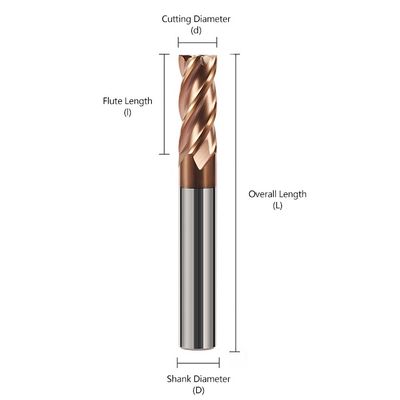

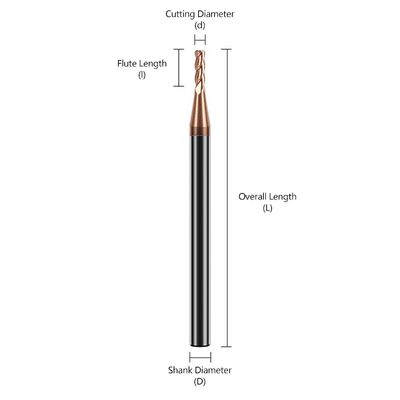

Number of Flutes Cutting Diameter Radius of Fillet Shank Diameter Overall Length
Four blade d R D L
1 3 4 50
1.5 4.5 4 50
NOTE: Custom specifications can be manufactured according to provided technical drawings.
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 6 2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining 7
