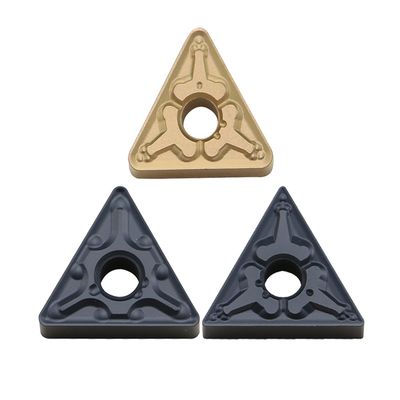

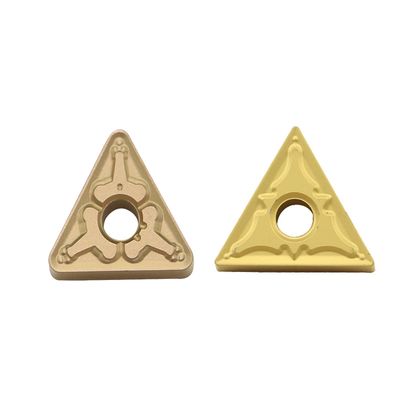

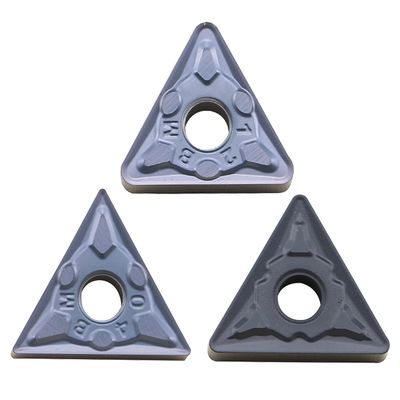

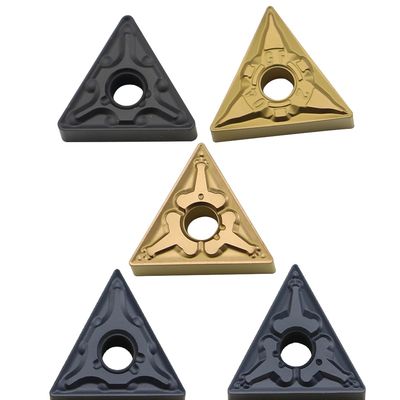

Long Life TNMG CNC Insert with HRA90 Hardness for Alloy Machining and 3 Years Warranty

Large Image : Long Life TNMG CNC Insert with HRA90 Hardness for Alloy Machining and 3 Years Warranty

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Model Number:	TNMG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$0.99-1.15

Contact Now

Long Life TNMG CNC Insert with HRA90 Hardness for Alloy Machining and 3 Years Warranty

Description

Coating:	PVD	Hardness:	HRA90
Material:	Tungsten Carbide	Model:	TNMG
T Angle:	75°	N Angle:	0°
M Tolerance:	±0.08-±0.18	G Feature:	Holes
Chip Breaker:	Double Sided Groove	Diameter (S):	4.76mm
Diameter (ϕd):	3.81mm, 5.16mm, 6.35mm	Radius (r):	0.4mm, 0.8mm, 1.2mm, 1.6mm
HRC Range:	45HRC, 55HRC, 60HRC, 65HRC	Workpiece Material:	Stainless Steel, Steel
MOQ:	10 Pieces
Highlight:	HRA90 Hardness TNMG Insert , 45HRC-65HRC CNC Turning Insert , 3 Years Warranty Carbide CNC Insert

Long Life TNMG CNC Insert with Non-Standard Customized Features for Alloy Machining in Mold Making on EDM Machines

Key Features

Automated Processing

CNC tool inserts feature automation capabilities, enabling automated machining operations through programming.

High Stability

Exceptional stability reduces cutting vibrations and improves surface finish quality, enhancing overall machining precision.

Wide Application Range

Ideal for industries requiring high precision and efficiency, including:

Machinery manufacturing
Aerospace components
Electronics production
Mold making
EDM machine operations

Technical Specifications

TNMG Code	Value
T	75°
N	0°
M	±0.08-±0.18
G	Holes
Feature	Double sided chip breaker groove

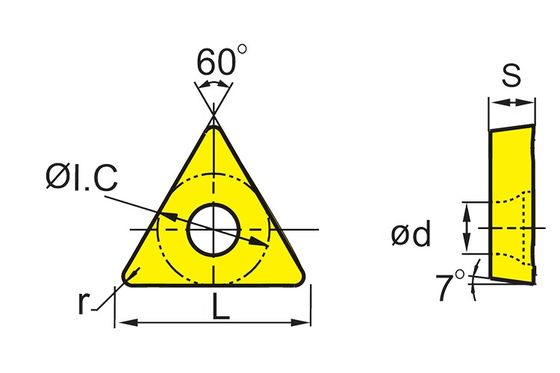

Dimensional Specifications

Type	S (mm)	ϕd (mm)	r (mm)
TNMG160404-OPF	4.76	3.81	0.4
TNMG160408-OPF	4.76	3.81	0.8
TNMG160404-OPM	4.76	3.81	0.4
TNMG160408-OPM	4.76	3.81	0.8
TNMG160412-OPM	4.76	3.81	1.2
TNMG220404-OPM	4.76	5.16	0.4
TNMG220408-OPM	4.76	5.16	0.8
TNMG220412-OPM	4.76	5.16	1.2
TNMG220416-OPM	4.76	5.16	1.6
TNMG160404-OPR	4.76	3.81	0.4
TNMG160412-OPR	4.76	3.81	1.2
TNMG220412-OPR	4.76	5.16	1.2
TNMG220416-OPR	4.76	5.16	1.6
TNMG270612-OPR	6.35	6.35	1.2
TNMG160404-OMF	4.76	3.81	0.4
TNMG160408-OMF	4.76	3.81	0.8
TNMG160404-OMM	4.76	3.81	0.4
TNMG160408-OMM	4.76	3.81	0.8
TNMG220408-OMM	4.76	5.16	0.8
TNMG220412-OMM	4.76	5.16	1.2
TNMG160408	4.76	3.81	0.8
TNMG160412	4.76	3.81	1.2
TNMG220408	4.76	5.16	0.8
TNMG220412	4.76	5.16	1.2
TNMG220416	4.76	5.16	1.6
TNMG160408-MF	4.76	3.81	0.8
TNMG160404-MSF	4.76	3.81	0.4
