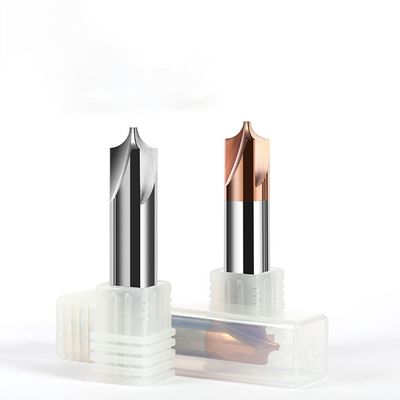

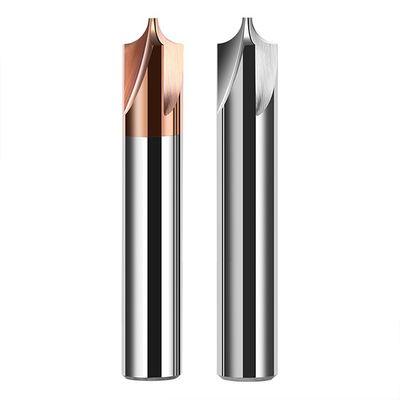

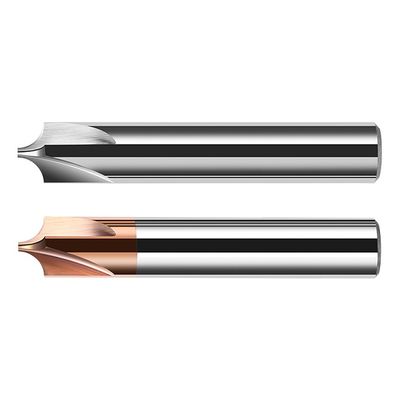

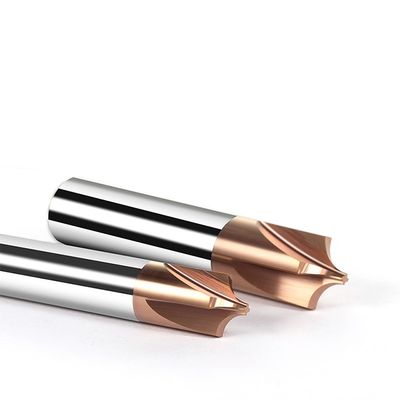

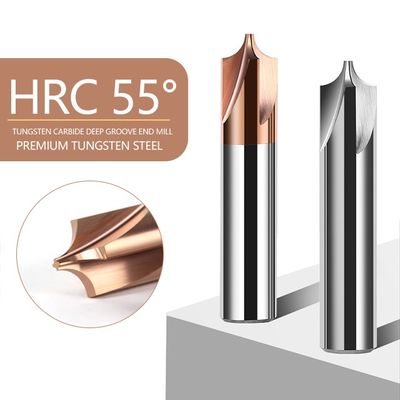

4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter

4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter
4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter

Large Image :  4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.54-2
Contact Now

4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter

Description
Flute Count: 4 Flutes Material: Tungsten Carbide
Grain Size: 0.6um Shape: Internal R
Coating: NACo4 Hardness HRC: 55HRC
Helix Angle: Not Specified Cutting Diameter: D4 To D16
Ball Nose Radius: R0.5 To R7 Overall Length: 50 To 75mm
Angle: 35° Suitable Materials: COPPER,ALLOY STEEL,ORDINARY STEEL PARTS,CAST IRON
Flute Type: Double Blade Color: Slivery
Internal Radius: 55-Degree
Highlight:

55-Degree Internal Radius Tungsten Carbide End Mill

,

nACo4 Coating Carbide End Mill

,

0.6um fine-grained tungsten carbide End Mill

4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius Coated Chamfering and Shaping Mill for Reverse R Arc
4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 0 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 1 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 2 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 3 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 4 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 5
Technical Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating nACo4
Shape Flat
Angle 35°
HRC 55°
4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 6
Dimensional Specifications
Number of Flutes Cutting Diameter (d) Ball Nose Radius (R) Overall Length (L)
Double blade D4 R0.5 50
Double blade D4 R0.75 50
Double blade D4 R1 50
Double blade D6 R1.5 50
Double blade D6 R2 50
Double blade D6 R2.5 50
Double blade D8 R3 60
Double blade D10 R4 60
Double blade D12 R5 60
Double blade D14 R6 75
Double blade D16 R7 75
4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 7 4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 8
Company Profile
4-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 94-Flute Tungsten Carbide End Mill with 55-Degree Internal Radius and 0.6um Grain Size for D4 to D16 Cutting Diameter 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
