High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty

High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty

Large Image :  High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: WNMG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.70-1.60
Contact Now

High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty

Description
Coating: PVD Hardness: HRA90
Material: Tungsten Carbide Model: WNMG
Angle W: 80° Angle N: 0°
Tolerance M: ±0.08-±0.18 Hole Type: G
Chip Breaker: Double Sided Groove Diameter S: 4.76 Mm
Diameter ϕd: 3.81 Mm, 5.16 Mm Radius R: 0.4 Mm, 0.8 Mm, 1.2 Mm
Workpiece Material: Stainless Steel, Steel HRC Range: 45HRC, 55HRC, 60HRC, 65HRC
MOQ: 10 Pieces
Highlight:

HRA90 Hardness CNC Insert

,

45HRC-65HRC Turning Insert

,

3 Years Warranty Carbide Insert

High Performance WNMG CNC Insert for Composite Material Machining

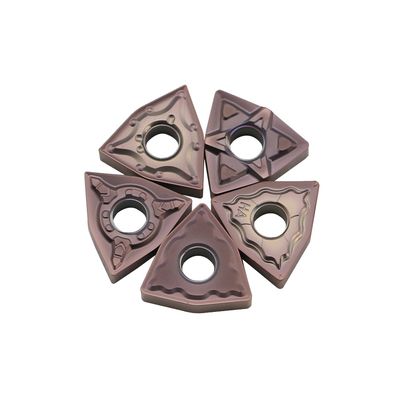

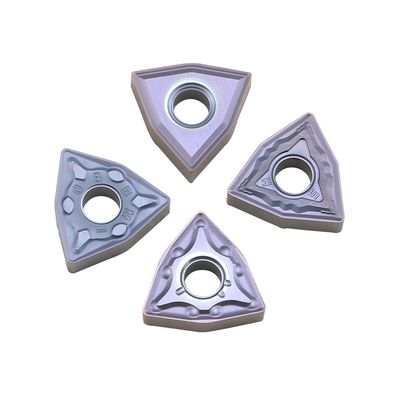

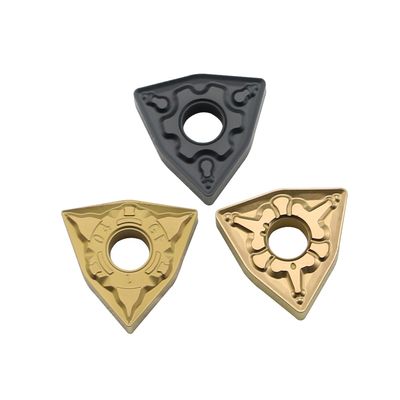

High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 0 High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 1 High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 2
Automated Processing
CNC tool inserts feature automation capabilities, enabling efficient automated machining operations through programming.
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 3
High Stability
Exceptional stability reduces cutting vibrations and improves surface finish quality for superior machining results.

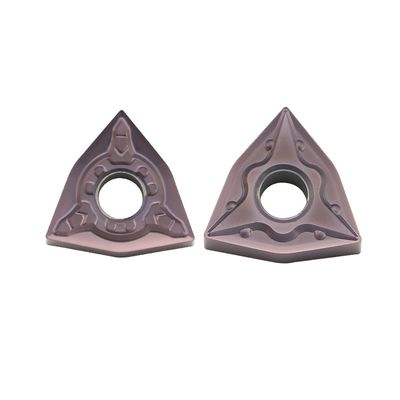

High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 4
Wide Application Fields
Ideal for industries requiring high precision and efficiency, including machinery manufacturing, aerospace, and electronics.

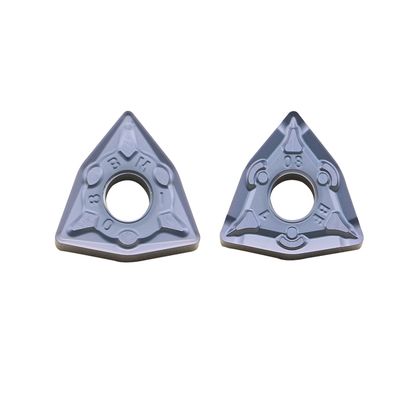

High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 5

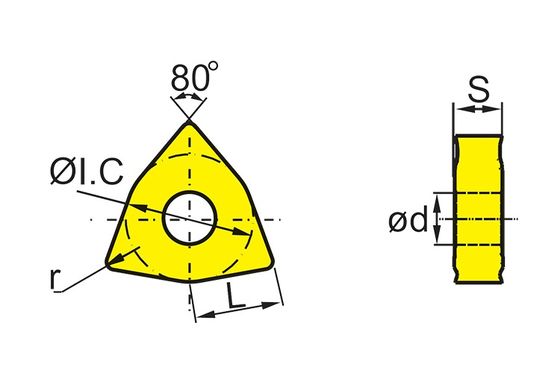

WNMG Insert Specifications
Code Value
W 80°
N 0°
M ±0.08-±0.18
G Holes
Double sided chip breaker groove
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 6 High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 7
Dimensions Table
Type Dimensions (mm) ϕd r
WNMG060404-OPF 4.76 3.81 0.4
WNMG060408-OPF 4.76 3.81 0.8
WNMG080404-OPF 4.76 5.16 0.4
WNMG080408-OPF 4.76 5.16 0.8
WNMG060408-OPM 4.76 3.81 0.8
WNMG080404-OPM 4.76 5.16 0.4
WNMG080408-OPM 4.76 5.16 0.8
WNMG080412-OPM 4.76 5.16 1.2
WNMG080408-OPR 4.76 5.16 0.8
WNMG080412-OPR 4.76 5.16 1.2
High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 8 High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 9 High Performance WNMG CNC Insert with HRA90 Hardness and 45HRC-65HRC for CNC Machining Center with 3 Years Warranty 10
