High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry

High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry
High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry

Large Image :  High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: WNMG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.70-1.60
Contact Now

High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry

Description
Tolerance M: ±0.08-±0.18 Hole Type: G
Chip Breaker: Double Sided Groove Diameter S: 4.76 Mm
Diameter ϕd: 3.81 Mm, 5.16 Mm Coating: PVD
Radius R: 0.4 Mm, 0.8 Mm, 1.2 Mm Hardness: HRA90
Workpiece Material: Stainless Steel, Steel Material: Tungsten Carbide
HRC Range: 45HRC, 55HRC, 60HRC, 65HRC MOQ: 10 Pieces
Model: WNMG Angle W: 80°
Angle N: 0°
Highlight:

HRA90 Hardness CNC Insert

,

45HRC-65HRC Turning Insert

,

3 Years Warranty Carbide Insert

High Performance WNMG CNC Insert for Composite Material Machining in Electronic Industry

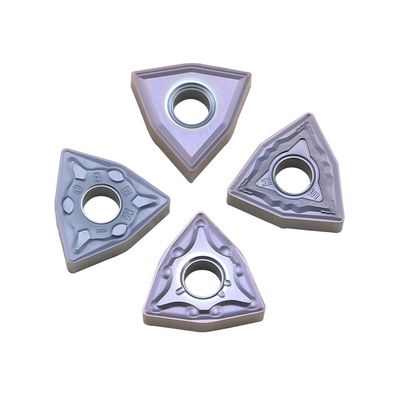

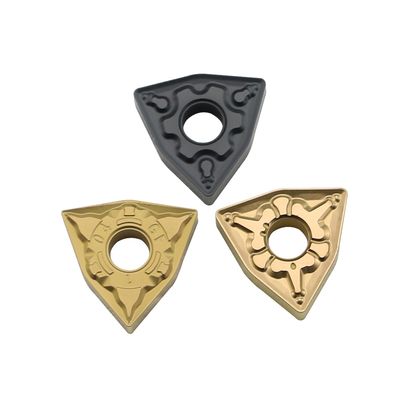

High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry 0 High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry 1 High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry 2
Key Features
  • Automated Processing: Designed for CNC programming and automated machining operations
  • High Stability: Reduces cutting vibrations and improves surface finish quality
  • Wide Application: Ideal for precision industries including electronics, aerospace, and machinery manufacturing
Technical Specifications

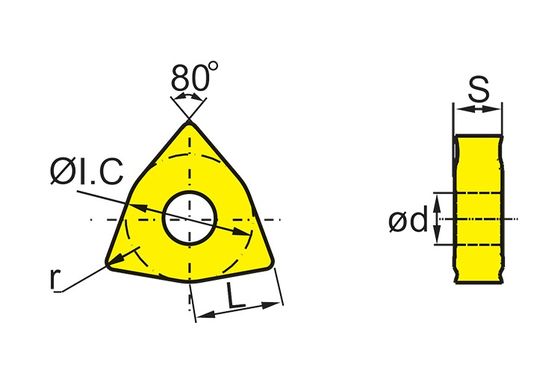

WNMG Code:
W: 80° | N: 0° | M: ±0.08-±0.18 | G: holes
Design Feature:
Double sided chip breaker groove
Dimensional Specifications
Type S (mm) ϕd (mm) r (mm)
WNMG060404-OPF 4.76 3.81 0.4
WNMG060408-OPF 4.76 3.81 0.8
WNMG080404-OPF 4.76 5.16 0.4
WNMG080408-OPF 4.76 5.16 0.8
WNMG060408-OPM 4.76 3.81 0.8
WNMG080404-OPM 4.76 5.16 0.4
WNMG080408-OPM 4.76 5.16 0.8
WNMG080412-OPM 4.76 5.16 1.2
WNMG080408-OPR 4.76 5.16 0.8
WNMG080412-OPR 4.76 5.16 1.2
WNMG060408-OPF 4.76 3.81 0.8
WNMG080404-OPF 4.76 5.16 0.4
WNMG080408-OPF 4.76 5.16 0.8
WNMG080404 4.76 5.16 0.4
WNMG080408 4.76 5.16 0.8
WNMG080412 4.76 5.16 1.2
WNMG060408-MF 4.76 3.81 0.8
WNMG080408-MF 4.76 5.16 0.8
WNMG080412-MF 4.76 5.16 1.2
WNMG060404-MSF 4.76 3.81 0.4
WNMG080404-MSF 4.76 5.16 0.4

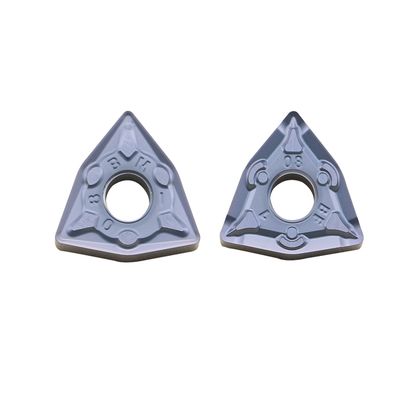

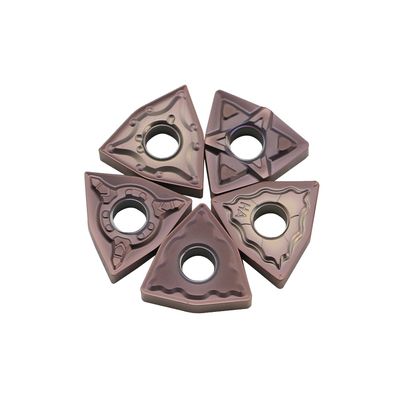

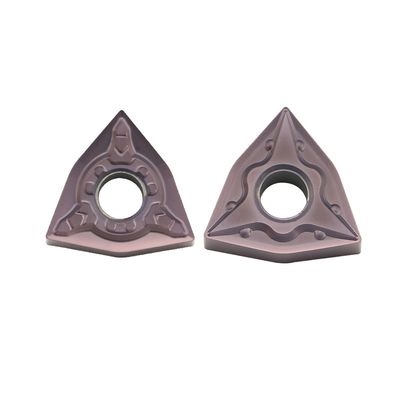

High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry 3 High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry 4 High Performance WNMG CNC Insert with PVD Coating for Precision Machining in Electronic Industry 5

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
