Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining

Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining
Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining

Large Image :  Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2-4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-2
Contact Now

Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining

Description
Material: Tungsten Carbide Grain Size: 0.6um
Shape: Ball Coating: NACo4
Hardness: 55HRC Helix Angle: 35°
Flute Count: 2-4 Cutting Diameter: 0.15-1.25mm
Flute Length: 2-8mm Shank Diameter: 4mm
Overall Length: 50mm Suitable Materials: CAST IRON, COPPER ALLOY, ORDINARY STEEL PARTS, CHISEL TOOL STEEL
Color: Slivery Flute Type: Double Blade-Four Blade
Angle: 35°
Highlight:

55-Degree Deep Groove Ball End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

0.6um Fine-Grained Tungsten Carbide End Mill

Optimized Tungsten Carbide End Mill With 55-Degree Deep Groove and Long Neck for Micro-Diameter Steel and Aluminum Machining
Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 0 Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 1 Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 2 Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 3 Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 4 Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 5
Technical Specifications
Parameter Value
Flutes 2-4
Chip Flute 2-4
Coating nACo4
Shape Ball
Angle 35°
HRC 60°
Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 6

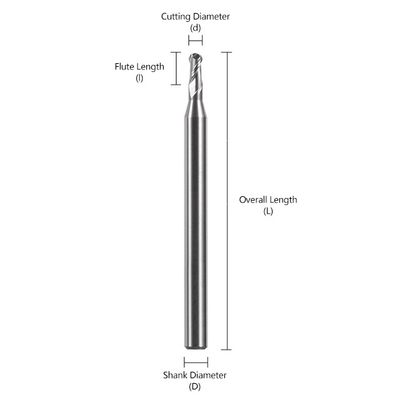

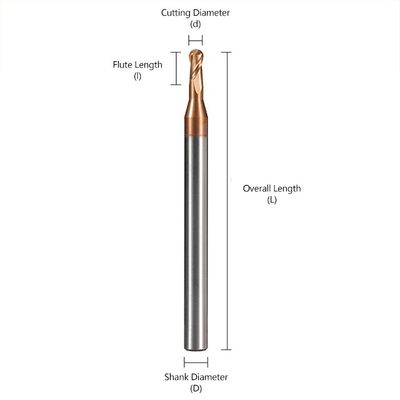

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade-Four blade 0.15 2 4 50
0.2 2 4 50
0.25 2 4 50
0.3 2 4 50
0.35 3 4 50
0.4 2 4 50
0.5 2 4 50
0.75 6 4 50
1 6 4 50
1.25 8 4 50
Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 7 Tungsten Carbide Ball End Mill with 55-Degree Deep Groove and nACo4 Coating for CNC Machining 8
