Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining

Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining
Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining

Large Image :  Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2-4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-2
Contact Now

Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining

Description
Material: Tungsten Carbide Grain Size: 0.6um
Shape: Ball Coating: NACo4
Hardness: 55HRC Helix Angle: 35°
Flute Count: 2-4 Cutting Diameter: 0.15-1.25mm
Flute Length: 2-8mm Shank Diameter: 4mm
Overall Length: 50mm Suitable Materials: CAST IRON, COPPER ALLOY, ORDINARY STEEL PARTS, CHISEL TOOL STEEL
Color: Slivery Flute Type: Double Blade-Four Blade
Angle: 35°
Highlight:

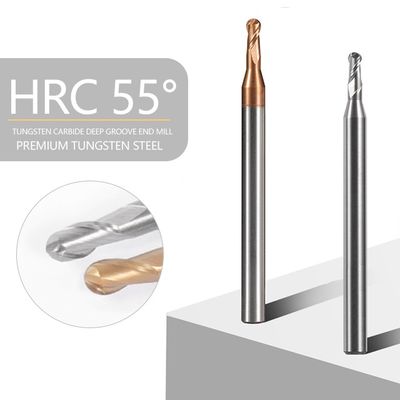

55-Degree Deep Groove Ball End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

0.6um Fine-Grained Tungsten Carbide End Mill

Optimized Tungsten Carbide End Mill With 55-Degree Deep Groove and Long Neck for Micro-Diameter Steel and Aluminum Machining
Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 0 Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 1 Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 2 Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 3 Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 4 Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 5
Key Specifications
Parameter Value
Flutes 2-4
Chip Flute 2-4
Coating nACo4
Shape Ball
Angle 35°
HRC 60°
Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 6

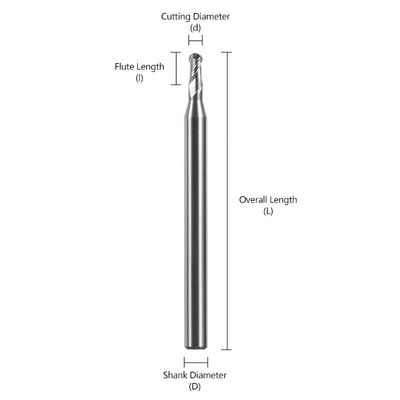

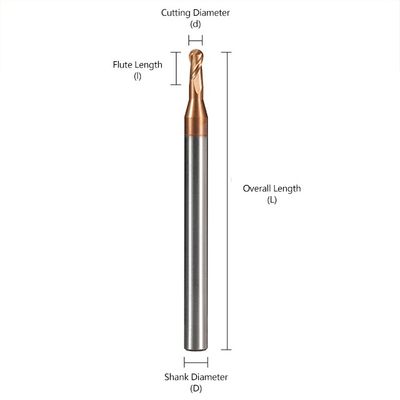

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade-Four blade 0.15 2 4 50

0.2 2 4 50

0.25 2 4 50

0.3 2 4 50

0.35 3 4 50

0.4 2 4 50

0.5 2 4 50

0.75 6 4 50

1 6 4 50

1.25 8 4 50
Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 7 Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 8
Company Profile
Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 9Tungsten Carbide End Mill with 2-8mm Flute Length, 4mm Shank Diameter, and 50mm Overall Length for Precision Machining 10
Semi-Automatic PET Bottle Blowing Machine

Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
