Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty

Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty
Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty

Large Image :  Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: DCMT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.22-1.93
Contact Now

Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty

Description
Coating: PVD Hardness: HRA90
Material: Tungsten Carbide Model: DCMT
Angle D: 55° Angle C: 7°
Tolerance M: ±0.08-±0.18 Chip Breaker: Single-sided Groove
Dimension S: 2.38mm, 3.97mm Diameter ϕd: 2.8mm, 4.4mm
Radius R: 0.2mm, 0.4mm, 0.8mm HRC Range: 45HRC, 55HRC, 60HRC, 65HRC
Workpiece Material: Stainless Steel, Steel Minimum Order: 10 Pieces
Coating Types: PVD, CVD
Highlight:

Precision Ground CNC Insert

,

PVD Coated Turning Insert

,

3 Years Warranty Carbide Insert

High Performance Precision Ground DCMT CNC Insert
Premium quality CNC inserts designed for metal and non-metal machining in CNC centers, engraving, and milling machines.
Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 0 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 1 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 2
Key Features
  • Automated Processing: Programmable automation capabilities for efficient machining operations
  • High Stability: Reduces cutting vibrations and improves surface finish quality
  • Wide Application: Suitable for precision industries including aerospace, electronics, and machinery manufacturing
Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 3 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 4 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 5
Technical Specifications
DCMT Code Value
D 55°
C 7°
M ±0.08-±0.18
T Holes with single-sided chip breaker groove
Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 6 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 7

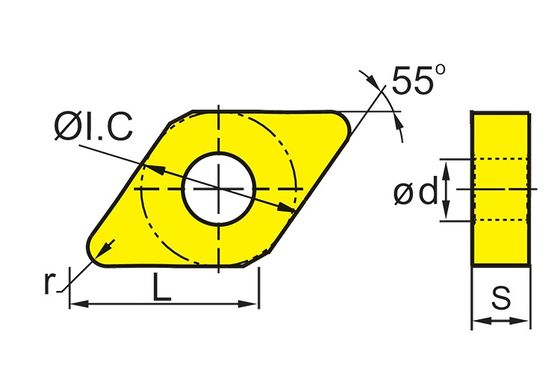

Dimensional Chart
Type S (mm) ϕd (mm) r (mm)
DCMT070204-OTF 2.38 2.8 0.4
DCMT11T302-OTF 3.97 4.4 0.2
DCMT11T304-OTF 3.97 4.4 0.4
DCMT070204-OTM 2.38 2.8 0.4
DCMT070208-OTM 2.38 2.8 0.8
DCMT11T304-OTM 3.97 4.4 0.4
DCMT11T308-OTM 3.97 4.4 0.8
DCMT11T304-OTR 3.97 4.4 0.4
DCMT11T308-OTR 3.97 4.4 0.8
Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 8 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 9 Precision Ground PVD Coated DCMT CNC Insert for High Performance Turning with 3 Years Warranty 10
