CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating

CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating
CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating

Large Image :  CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.90-1.50

CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating

Description
Material: 0.6um Fine-grained Tungsten Carbide Coating: NACo4
Flute Count: 2 Shape: Flat
Helix Angle: 35° Hardness HRC: 55
Cutting Diameter: 1-20mm Flute Length: 3-80mm
Shank Diameter: 3-20mm Overall Length: 50-150mm
Suitable Materials: COPPER,ALLOY STEEL,ORDINARY STEEL PARTS,CAST IRON Chip Flute: 2
Angle: 35° Color: Slivery
Grain Size: 0.6um
Highlight:

55-degree Keyway Cutter Carbide End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

Flat-bottom Carbide End Mill

CNC Flat-bottom Carbide End Mill with Two Flutes 55-degree Keyway Cutter for Steel Featuring an Extended Straight Shank
CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 0 CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 1 CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 2 CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 3 CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 4 CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 5
Key Specifications
Flutes
2
Chip Flute
2
Coating
nACo4
Shape
Flat
Angle
35°
HRC
55°
Technical Specifications

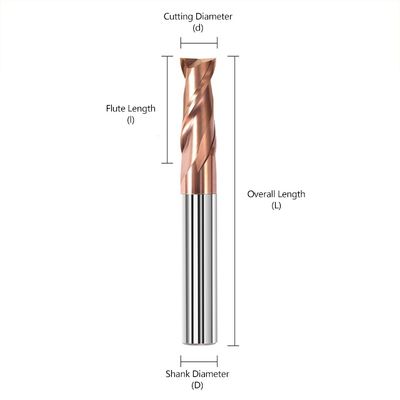

Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade 1 3 4 50
Double blade 1.5 4.5 4 50
Double blade 2 6 4 50
Double blade 2.5 7.5 4 50
Double blade 3 9 3 50
Double blade 3 9 4 50
Double blade 3.5 10 4 50
Double blade 4 12 4 50
Double blade 5 13 5 50
Double blade 5 13 6 50
Double blade 6 15 6 50
Double blade 8 20 8 60
Double blade 10 25 10 75
Double blade 12 30 12 75
Double blade 14 45 14 100
Double blade 16 45 16 100
Double blade 18 45 18 100
Double blade 20 45 20 100
CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 6 CNC Flat-bottom Tungsten Carbide End Mill with 55-degree Keyway Cutter and nACo4 Coating 7
