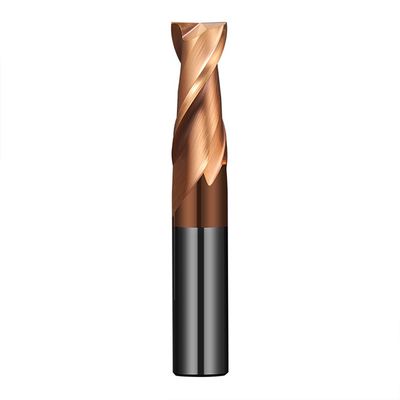

CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating

CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating
CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating

Large Image :  CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.90-1.50
Contact Now

CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating

Description
Material: 0.6um Fine-grained Tungsten Carbide Coating: NACo4
Flute Count: 2 Shape: Flat
Helix Angle: 35° Hardness HRC: 55
Cutting Diameter: 1-20mm Flute Length: 3-80mm
Shank Diameter: 3-20mm Overall Length: 50-150mm
Suitable Materials: COPPER,ALLOY STEEL,ORDINARY STEEL PARTS,CAST IRON Chip Flute: 2
Angle: 35° Color: Slivery
Grain Size: 0.6um
Highlight:

55-degree Keyway Cutter Carbide End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

Flat-bottom Carbide End Mill

CNC Flat-bottom Carbide End Mill with Two Flutes 55-degree Keyway Cutter for Steel Featuring an Extended Straight Shank
CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 0 CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 1 CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 2 CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 3 CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 4 CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 5
Technical Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating nACo4
Shape Flat
Angle 35°
HRC 55°
CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 6

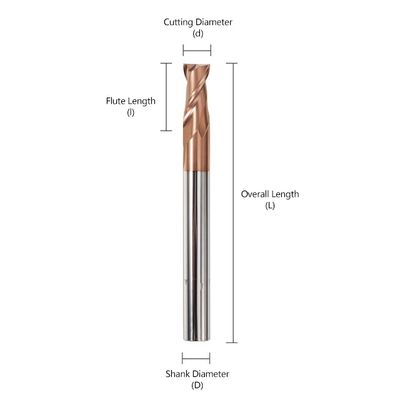

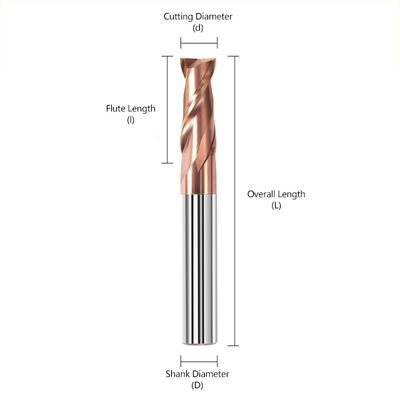

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade 1 3 4 50
Double blade 1.5 4.5 4 50
Double blade 2 6 4 50
Double blade 2.5 7.5 4 50
Double blade 3 9 3 50
Double blade 3 9 4 50
Double blade 3.5 10 4 50
Double blade 4 12 4 50
Double blade 5 13 5 50
Double blade 5 13 6 50
Double blade 6 15 6 50
Double blade 8 20 8 60
Double blade 10 25 10 75
Double blade 12 30 12 75
Double blade 14 45 14 100
Double blade 16 45 16 100
Double blade 18 45 18 100
Double blade 20 45 20 100
CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 7 CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 8
Company Profile
CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 9CNC Flat-bottom Tungsten Carbide End Mill with Two Flutes and 55-degree Keyway Cutter for Steel Featuring nACo4 Coating 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
