2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum

2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum
2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum

Large Image :  2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-2
Contact Now

2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum

Description
Material: Tungsten Carbide Grain Size: 0.6um
Flute Count: 2 Coating: NACo4
Hardness: 60HRC Helix Angle: 35°
Cutting Diameter: 0.1-0.9 Flute Length: 0.2-1.8
Shank Diameter: 4 Overall Length: 50
Shape: Flat Suitable Materials: CAST IRON, COPPER ALLOY, ORDINARY STEEL PARTS, CHISEL TOOL STEEL
Cutting Edge Angle: 60° Chip Flute: 2
Color: Slivery
Highlight:

60° Flat Cutting Edge End Mill

,

nACo4 Coating Carbide End Mill

,

60HRC Hardness Tungsten Carbide End Mill

2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge

Designed for precision machining of both steel and aluminum materials.

Product Images
2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 0 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 1 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 2 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 3 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 4 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 5
Technical Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating nACo4
Shape Ball
Angle 35°
HRC 60°
2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 6

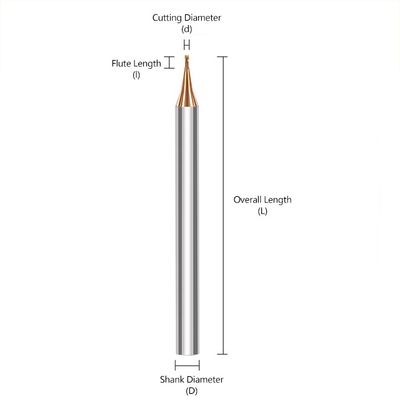

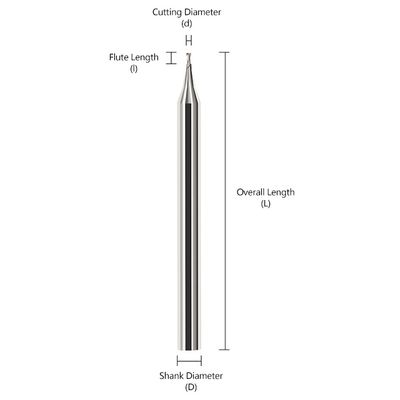

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade 0.1 0.2 4 50
Double blade 0.2 0.4 4 50
Double blade 0.3 0.6 4 50
Double blade 0.4 0.8 4 50
Double blade 0.5 1 4 50
Double blade 0.6 1.2 4 50
Double blade 0.7 1.4 4 50
Double blade 0.8 1.6 4 50
Double blade 0.9 1.8 4 50
2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 7 2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 8
Company Profile
2-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 92-flute Tungsten Carbide End Mill with Micro Diameter and 60° Flat Cutting Edge for Steel and Aluminum 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
