2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum

2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum

Large Image :  2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-2
Contact Now

2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum

Description
Flute Count: 2 Material: 0.6um Fine-grained Tungsten Carbide
Coating: NACo4 Shape: Ball
Helix Angle: 35° Hardness HRC: 60
Ball Nose Radius: R0.1-R0.45 Shank Diameter: 4
Overall Length: 50 Chip Flute: 2
Suitable Materials: CAST IRON, COPPER ALLOY, ORDINARY STEEL PARTS, CHISEL TOOL STEEL Color: Slivery
Flute Type: Double Blade Angle: 35°
Grain Size: 0.6um
Highlight:

60° Angles Ball End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

Micro Diameter Carbide Ball Nose Mill

Specialized 2-flute Tungsten Carbide Ball-end Milling with a Micro Diameter for 60° Angles Suitable for Both Steel and Aluminum
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 0 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 1 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 2 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 3 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 4 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 5
Technical Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating nACo4
Shape Ball
Angle 35°
HRC 60°
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 6

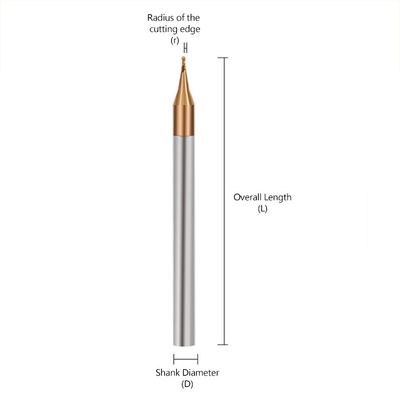

Dimensions
Number of Flutes Ball Nose Radius (R) Shank Diameter (D) Overall Length (L)
Double blade R0.2 4 50
Double blade R0.3 4 50
Double blade R0.4 4 50
Double blade R0.15 4 50
Double blade R0.25 4 50
Double blade R0.35 4 50
Double blade R0.45 4 50
Double blade R0.1 4 50
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 7 2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 8
Company Profile
2-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 92-flute Tungsten Carbide Ball End Mill with Micro Diameter for 60° Angles in Steel and Aluminum 10
Semi-Automatic PET Bottle Blowing Machine
Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
