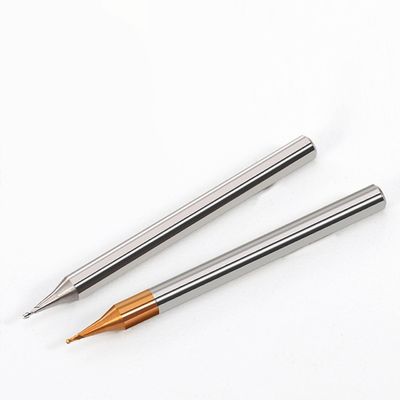

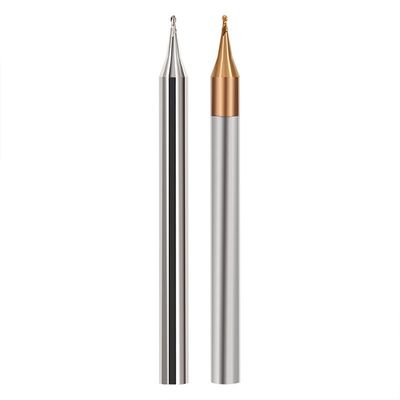

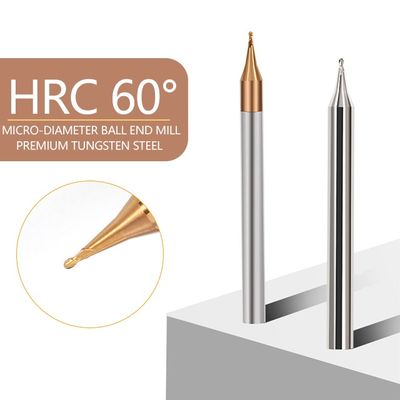

2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling

2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling
2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling

Large Image :  2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 2 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-2
Contact Now

2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling

Description
Flute Count: 2 Material: 0.6um Fine-grained Tungsten Carbide
Coating: NACo4 Shape: Ball
Helix Angle: 35° Hardness HRC: 60
Ball Nose Radius: R0.1-R0.45 Shank Diameter: 4
Overall Length: 50 Chip Flute: 2
Suitable Materials: CAST IRON, COPPER ALLOY, ORDINARY STEEL PARTS, CHISEL TOOL STEEL Color: Slivery
Flute Type: Double Blade Angle: 35°
Grain Size: 0.6um
Highlight:

60° Angles Ball End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

Micro Diameter Carbide Ball Nose Mill

Specialized 2-flute Tungsten Carbide Ball-end Milling with a Micro Diameter for 60° Angles Suitable for Both Steel and Aluminum
2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 0 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 1 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 2 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 3 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 4 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 5
Key Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating nACo4
Shape Ball
Angle 35°
HRC 60°
2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 6

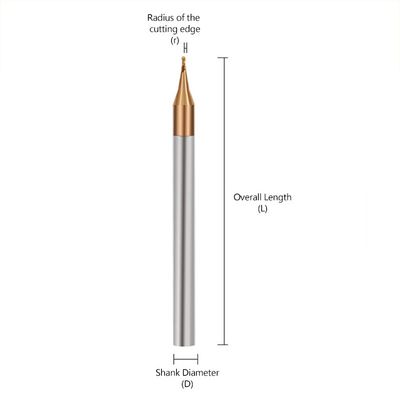

Detailed Dimensions
Number of Flutes Ball Nose Radius (R) Shank Diameter (D) Overall Length (L)
Double blade R0.2 4 50
Double blade R0.3 4 50
Double blade R0.4 4 50
Double blade R0.15 4 50
Double blade R0.25 4 50
Double blade R0.35 4 50
Double blade R0.45 4 50
Double blade R0.1 4 50
2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 7 2-Flute Tungsten Carbide Ball End Mill with nACo4 Coating and Micro Diameter for 60° Angles in CNC Milling 8
