4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining

4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining
4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining

Large Image :  4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.50-2
Contact Now

4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining

Description
Material: Tungsten Carbide Grain Size: 0.6um Fine-grained
Flute Count: 4 Shape: Flat
Coating: NACo4 Hardness: 65HRC
Helix Angle: 35° Cutting Diameter: 1-20mm
Flute Length: 3-75mm Shank Diameter: 3-20mm
Overall Length: 50-150mm Suitable Materials: CHISEL TOOL STEEL, HARDENED STEEL, CARBON STEEL, ALLOY STEEL
Color: Slivery Chip Flute: 4
Angle: 35°
Highlight:

nACo4 Coating Tungsten Carbide End Mill

,

35° Helix Angle Carbide End Mill

,

3 Years Warranty CNC End Mill

Specialized 4-flute Tungsten Carbide End Mill for CNC Machining of Stainless Steel
4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 0 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 1 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 2 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 3 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 4 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 5
Key Specifications
Parameter Value
Flutes 4
Chip Flute 4
Coating nACo4
Shape Flat
Angle 35°
HRC 65°
Dimensional Specifications

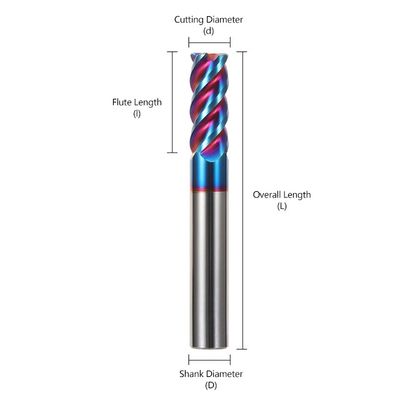

Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade 1 3 4 50

1.5 4.5 4 50

2 6 4 50

2.5 7.5 4 50

3 8 3 50

3 8 4 50

10 40 10 100
4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 6 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 7 4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 8
Company Profile
4-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 94-flute Tungsten Carbide End Mill with nACo4 Coating for Stainless Steel Machining 10
Related Products
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
