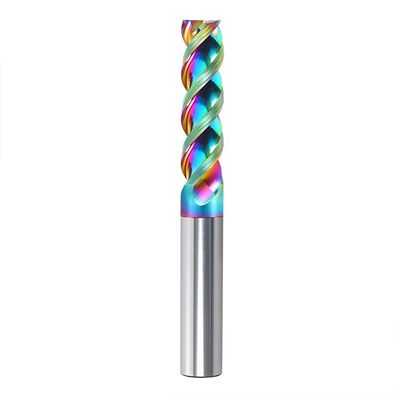

3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining

3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining
3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining

Large Image :  3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 3 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.90-1.20
Contact Now

3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining

Description
Flute Count: 3 Coating Type: DLC
Material: Tungsten Carbide Grain Size: 0.6um
Shape: Flat Helix Angle: 35°
Hardness HRC: 65 Cutting Diameter: D2.3 To D20 Mm
Flute Length: 6 To 80 Mm Shank Diameter: D3 To D20 Mm
Overall Length: 50 To 150 Mm Chip Flute: 3
Color: Slivery Suitable Materials: COPPER,ALLOY STEEL,ORDINARY STEEL PARTS,CAST IRON
Application Machines: CNC-Production-Center,Engraving-Machine,CNC-Milling-Machine
Highlight:

35° Helix Angle Tungsten Carbide End Mill

,

3 Years Warranty CNC End Mill

,

DLC Coating 3-flute Milling Cutter

Specialized 3-flute Milling Cutter for 65° U-groove Aluminum High-gloss Tungsten Carbide Blade
Product Description
3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 0 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 1 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 2 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 3 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 4 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 5
Technical Specifications
Parameter Value
Flutes 3
Chip Flute 3
Coating DLC
Shape Flat
Angle 35°
HRC 65°
3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 6

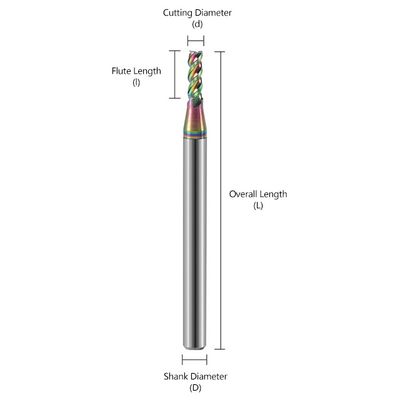

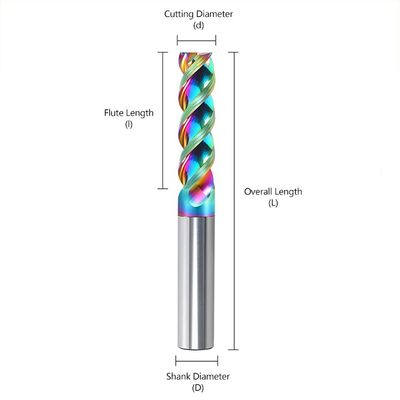

Dimensional Specifications
Number of Flutes Cutting Diameter (mm) Flute Length (mm) Shank Diameter (mm) Overall Length (mm)
Three blades D2.3 6 D4 50
1 3 4 50
3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 7 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 8
Company Profile
3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 9 3-flute Tungsten Carbide End Mill with 65° U-groove and Fine-grained 0.6um for High-gloss CNC Machining 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
