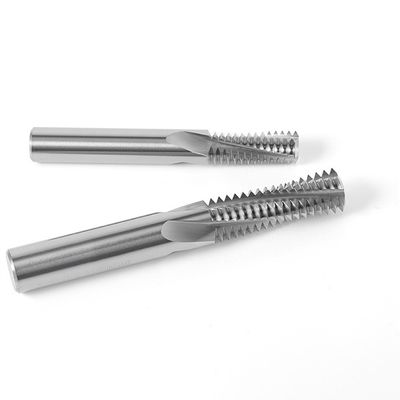

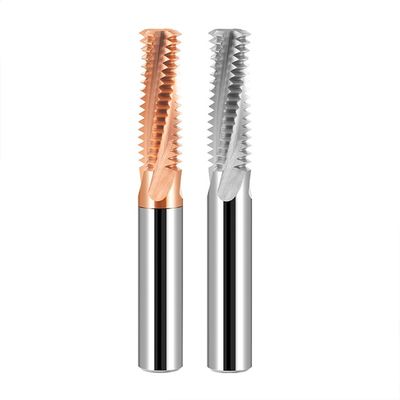

65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design

65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design
65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design

Large Image :  65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $5.40-7
Contact Now

65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design

Description
Material: 0.6um Fine-grained Tungsten Carbide Coating: Balzers

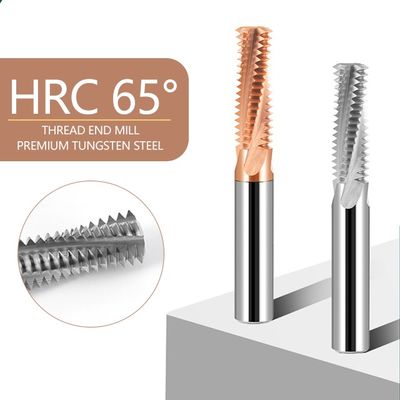

Hardness: 65HRC Helix Angle: 35 Degree
Flute Count: 4 Shape: Full-thread
Pitch Range: 0.5mm To 3.0mm Cutting Diameter: D2.3 To D16
Flute Length: 6mm To 42mm Shank Diameter: D4 To D16
Overall Length: 50mm To 100mm Thread Size: M2 To M48
Chip Flute: 4 Suitable Materials: COPPER, ALLOY STEEL, ORDINARY STEEL PARTS, CAST IRON
Flute Type: Single-tooth
Highlight:

35 Degree Helix Angle End Mill

,

Full-thread Tungsten Carbide End Mill

,

65HRC CNC End Mill

65° Full-thread Tungsten Carbide Milling Tap

Single-tooth CNC end mill for threading, suitable for M2, M3, M4, and M6 applications.

65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 0 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 1 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 2 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 3 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 4 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 5
Technical Specifications
Parameter Value
Flutes 4
Chip Flute 4
Coating Balzers
Shape Full-thread
Angle 35°
HRC 65°
65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 6

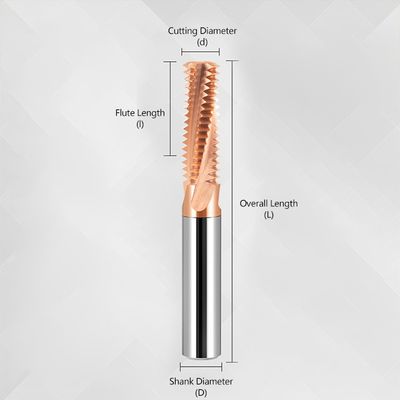

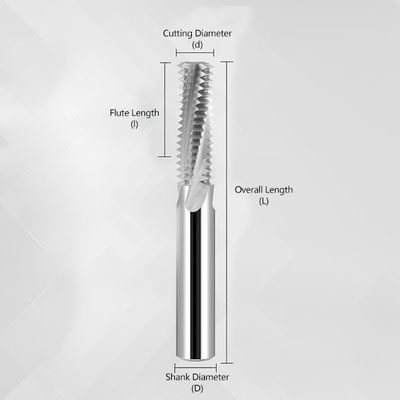

Dimensional Specifications
Number of Flutes Pitch (mm) Cutting Diameter (mm) Flute Length (mm) Shank Diameter (mm) Overall Length (mm)
Three blades M3*0.5 D2.3 6 D4 50
M6*0.5 D4 10 D4 50
M8-12*0.5 D6 13 D6 60
M3.5*0.6 D2.7 7 D4 50
M4*0.7 D3 8 D4 50
M4.5*0.75 D3.4 9 D4 50
M6*0.75 D4.8 12 D6 60
M8*0.75 D6 16 D6 60
M10-12*0.75 D8 20 D8 60
M5*0.8 D4 10 D4 50
M6*1.0 D4.8 12 D6 60
M8*1.0 D6 16 D6 60
M10*1.0 D8 20 D8 60
M8*1.25 D6 16 D6 60
Four blades M12*1.0 D10 22 D10 75
M16*1.0 D12 30 D12 75
M20-48*1.0 D16 30 D16 90
M12-14*1.25 D10 25 D10 75
M12-20*1.5 D10 28 D10 75
M14-24*1.5 D12 28 D12 75
M20-48*1.5 D16 30 D16 90
M12*1.75 D9.8 30 10 75
M14*2.0 D10 30 D10 75
M15-16*2.0 D10 30 D10 75
M16*2.0 D12 30 D12 75
M17-20*2.0 D12 30 D12 75
M20-80*2.0 D16 40 D16 100
M18-20*2.5 D14 36 D14 100
M20-80*2.5 D16 40 D16 100
M24*3.0 D16 42 D16 100
65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 7 65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 8
Company Profile
65° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 965° Full-thread Tungsten Carbide End Mill for M2 to M48 Threading with Single-tooth Design 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
