65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading

65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading
65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading

Large Image :  65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $5.40-7
Contact Now

65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading

Description
Material: 0.6um Fine-grained Tungsten Carbide Coating: Balzers
Hardness: 65HRC Helix Angle: 35 Degree
Flute Count: 4 Shape: Full-thread
Pitch Range: 0.5mm To 3.0mm Cutting Diameter: D2.3 To D16
Flute Length: 6mm To 42mm Shank Diameter: D4 To D16
Overall Length: 50mm To 100mm Thread Size: M2 To M48
Chip Flute: 4 Suitable Materials: COPPER, ALLOY STEEL, ORDINARY STEEL PARTS, CAST IRON
Flute Type: Single-tooth
Highlight:

35 Degree Helix Angle End Mill

,

Full-thread Tungsten Carbide End Mill

,

65HRC CNC End Mill

65° Full-thread Tungsten Carbide Milling Tap Single-tooth CNC End Mill for Threading

High-performance milling tap designed for precision threading operations on M2, M3, M4, and M6 sizes.

Product Images
65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 0 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 1 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 2 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 3 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 4 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 5
Technical Specifications
Parameter Value
Flutes 4
Chip Flute 4
Coating Balzers
Shape Full-thread
Angle 35°
HRC 65°
65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 6

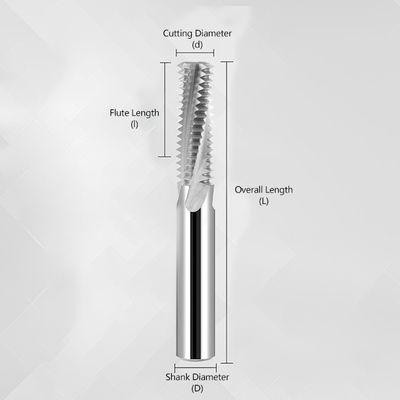

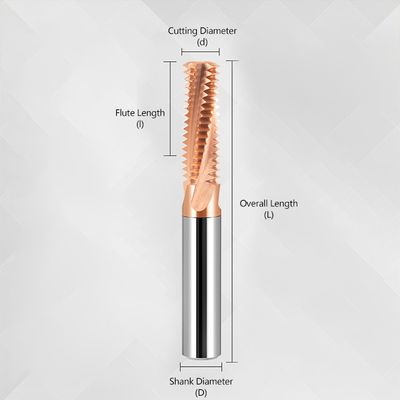

Dimensional Specifications
极
Number of Flutes Pitch (mm) Cutting Diameter (mm) Flute Length (mm) Shank Diameter (mm) Overall Length (mm)
Three blades M3*0.5 D2.3 6 D4 50
M6*0.5 D4 10 D4 50
M8-12*0.5 D6 13 D6 60
M3.5*0.6 D2.7 7 D4 50
M4*0.7 D3 8 D4 50
M4.5*0.75 D3.4 9 D4 50
M6*0.75 D4.8 12 D6 60
M8*0.75 D6 16 D6 60
M10-12*0.75 D8 20 D8 60
M5*0.8 D4 10 D4 50
M6*1.0 D4.8 12 D6 60
M8*1.0 D6 16 D6 60
M10*1.0 D8 20 D8 60
M8*1.25 D6 16 D6 60
M10*1.25 D8 20 D8 60
M10*1.5 D8 20 D8 60
Four blades M12*1.0 D10 22 D10 75
M16*1.0 D12 30 D12 75
M20-48*1.0 D16 30 D16 90
M12-14*1.25 D10 25 D10 75
M12-20*1.5 D10 28 D10 75
M14-24*1.5 D12 28 D12 75
M20-48*1.5 D16 30 D16 90
M12*1.75 D9.8 30 10 75
M14*2.0 D10 30 D10 75
M15-16*2.0 D10 30 D10 75
M16*2.0 D12 30 D12 75
M17-20*2.0 D12 30 D12 75
M20-80*2.0 D16 40 D16 100
M18-20*2.5 D14 36 D14 100
M20-80*2.5D16 40 D16 100
M24*3.0 D16 42 D16 100
65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 7 65HRC Full-thread Tungsten Carbide End Mill with 35 Degree Helix Angle for M2, M3, M4, M6 Threading 8
