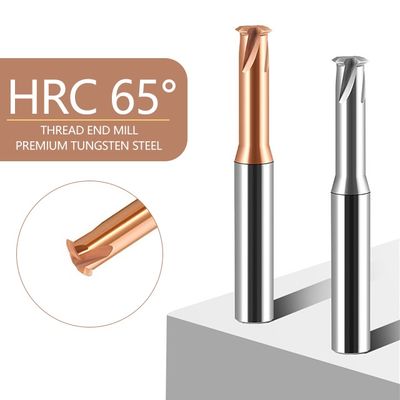

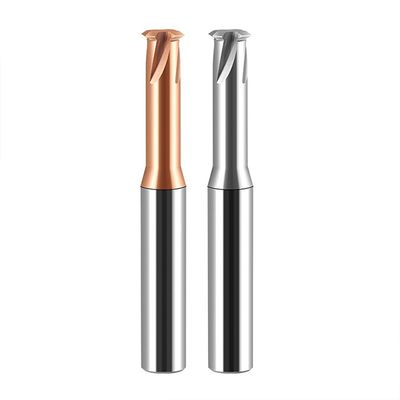

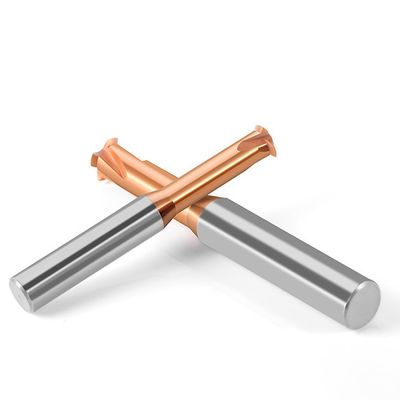

Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON

Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON

Large Image :  Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $0.84-1.20
Contact Now

Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON

Description
Material: 0.6um Fine-grained Tungsten Carbide Coating: Balzers
Flute Count: 4 Shape: Single-Thread
Helix Angle: 35° Hardness HRC: 65°
Pitch Range: M1.4*0.3 To M30*3.5 Cutting Diameter: D1.05 To D16
Flute Length: 4mm To 50mm Shank Diameter: D4 To D16
Overall Length: 50mm To 90mm Suitable Materials: COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Thread Types: M2, M3, M4, M6 Chip Flute: 4
Color: Slivery
Highlight:

35 Degree Helix Angle Single-Thread Milling Cutter

,

M2

,

M3

65° Single-Thread Milling Cutter, Tungsten Carbide Alloy, Single-Tooth CNC Milling Tool for M2, M3, M4, M6 Threads
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON 0 Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON 1 Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON 2 Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON 3 Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON 4 Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON 5
Technical Specifications
Parameter Value
Flutes 4
Chip Flute 4
Coating Balzers
Shape Single-Thread
Angle 35°
HRC 65°

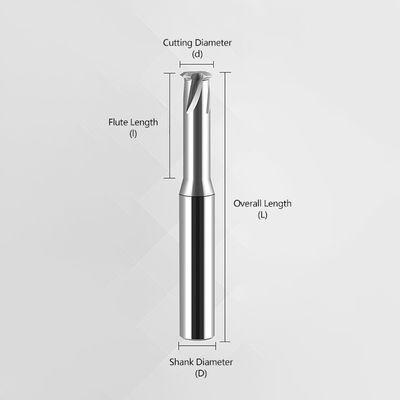

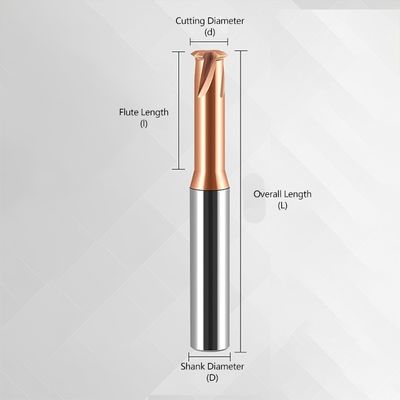

Dimensional Specifications
Number of Flutes Pitch (mm) Cutting Diameter (mm) Flute Length (mm) Shank Diameter (mm) Overall Length (mm)
Three blades M1.4*0.3 D1.05 4 D4 50
Three blades M1.6*0.35 D1.25 5 D4 50
Three blades M1.8*0.35 D1.4 5.6 D4 50
Three blades M2*0.35 D1.4 5.6 D4 50
Three blades M2*0.4 D1.54 6 D4 50
Three blades M2.5*0.45 D1.96 6.5 D4 50
Three blades M3*0.5 D2.4 8 D4 50
Three blades M8*0.5 D6 20 D6 50
Three blades M3.5*0.6 D2.75 10 D4 50
Three blades M4*0.7 D3.15 10 D4 50
Three blades M4.5*0.75 D3.5 12 D4 50
Three blades M8*0.75 D6 20 D6 50
Three blades M5*0.8 D4 12 D4 50
Three blades M6*1 D4.8 15 D6 50
Three blades M8*1.25 D6 20 D6 50
Three blades M10*1.5 D8 25 D8 60
Four blades M14*1.5 D12 30 D12 75
Four blades M12*1.75 D10 30 D10 75
Four blades M14*2 D10 36 D10 75
Four blades M16*2 D12 45 D12 75
Five blades M18*2.5 D14 48 D14 90
Five blades M24*3.0 D14 48 D14 90
Five blades M30*3.5 D16 50 D16 90
