35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining

35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining

Large Image :  35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Model Number: 4 FLUTES
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $1.70-2.20
Contact Now

35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining

Description
Material: Tungsten Carbide Grain Size: 0.6um
Flute Count: 4 Shape: Bull Nose
Coating: Balzers Hardness HRC: 70
Helix Angle: 35° Cutting Diameter: 1-12mm
Radius Of Fillet: 0.2-1mm Shank Diameter: 3-12mm
Overall Length: 50-100mm Suitable Materials: Alloy Steel, Titanium Alloy, Stainless Steel, Chisel Tool Steel
Chip Flute: 4 Color: Slivery
Flute Design: 4-flute
Highlight:

35 Degree Helix Angle Tungsten Carbide End Mill

,

Bull Nose Carbide End Mill

,

Balzers Coating End Mill

70HRC 4-Flute Cemented Carbide End Mills for Stainless Steel and Titanium Alloy
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 0 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 1 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 2
Parameter Value
Flutes 4
Chip Flute 4
Coating Balzers
Shape Bull Nose
Angle 35°
HRC 70°
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 3
4-Flutes Bull Nose End Mill
The 4-flute design distributes cutting load evenly across all flutes during rotation, extending tool life while improving cutting efficiency.
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 4
Bull-nose R Shape
The R-shaped bull-nose design (R-angle milling cutter) optimizes chip flow control during machining, reducing cutting heat and force to enhance both machining quality and tool longevity.
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 5
Tungsten Carbide Material
These tungsten carbide tools offer exceptional hardness, strength, and wear resistance, making them ideal for machining high-hardness materials including stainless steel and titanium alloys.
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 6

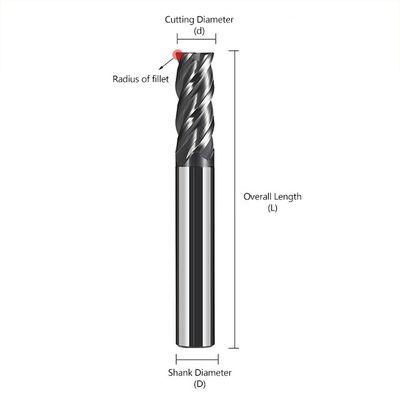

Product Specifications
Number of Flutes Cutting Diameter (d) Radius of Fillet (R) Shank Diameter (D) Overall Length (L)
Four blades 1 0.2 4 50
Four blades 1.5 0.2 4 50
Four blades 2 0.2 4 50
Four blades 2 0.5 4 50
Four blades 2.5 R0.2 4 50
Four blades 2.5 R0.5 4 50
Four blades 3 R0.2 3 50
Four blades 3 0.2 4 50
Four blades 3 0.5 3 50
Four blades 3 0.5 4 50
Four blades 4 0.2 4 50
Four blades 4 0.5 4 50
Four blades 4 1 4 50
Note: Custom specifications available based on customer drawings.
35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 7 35° Helix Angle 0.6um Grain Size 1-12mm Cutting Diameter Tungsten Carbide End Mill for CNC Machining 8

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
