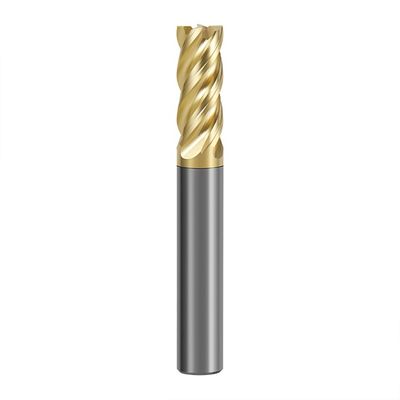

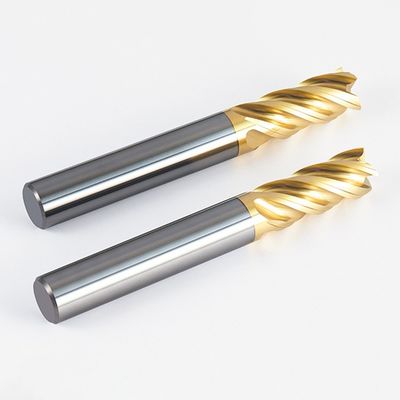

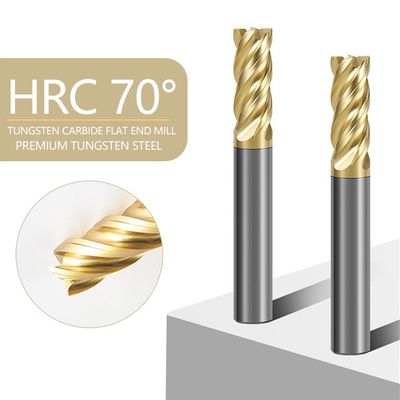

70° Hardness HRC 4-Flute Tungsten Carbide End Mill with Alnovz3 Coating Specialized for Stainless Steel CNC Milling Cutter

Large Image : 70° Hardness HRC 4-Flute Tungsten Carbide End Mill with Alnovz3 Coating Specialized for Stainless Steel CNC Milling Cutter

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	KEDEL
Model Number:	4 FLUTES

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$1.60-2

Contact Now

70° Hardness HRC 4-Flute Tungsten Carbide End Mill with Alnovz3 Coating Specialized for Stainless Steel CNC Milling Cutter

Description

Material:	Tungsten Carbide	Grain Size:	0.6um
Flute Count:	4	Shape:	Flat
Coating:	Alnovz3	Hardness HRC:	70
Helix Angle:	35°	Cutting Diameter:	1-20mm
Flute Length:	3-70mm	Shank Diameter:	3-20mm
Overall Length:	50-150mm	Suitable Materials:	Stainless Steel, Alloy Steel, Cast Iron
Color:	Slivery	Flute Type:	4-flute
End Mill Type:	Stand-Up Milling Cutter
Highlight:	35° Helix Angle Tungsten Carbide End Mill , Alnovz3 Coating CNC Milling Cutter , Flat Shape 4-Flute End Mill

70° Tungsten Carbide 4-Flute End Mill for Stainless Steel CNC Machining

Key Specifications

Flutes	4
Chip Flute	4
Coating	Alnovz3
Shape	Flat
Angle	35°
HRC	70°

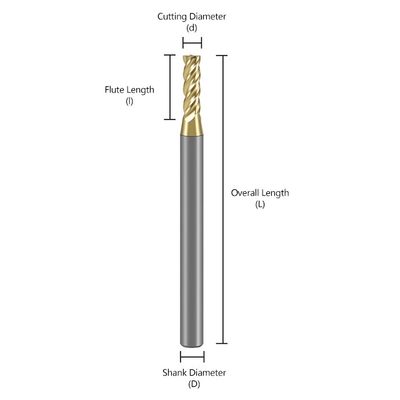

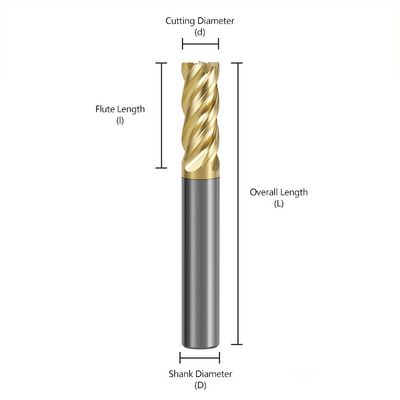

Dimensional Specifications

Number of Flutes	Cutting Diameter (d)	Flute Length (l)	Shank Diameter (D)	Overall Length (L)
Four blades	1	3	4	50
Four blades	1.5	5	4	50
Four blades	2	6	4	50
Four blades	2.5	7	4	50
Four blades	3	9	3	50
Four blades	3	9	4	50
Four blades	3.5	11	4	50
Four blades	4	12	4	50
Four blades	5	13	5	50
Four blades	5	13	6	50
Four blades	6	15	6	50
Four blades	8	20	8	60
Four blades	8	24	8	60

Manufacturer Information

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
