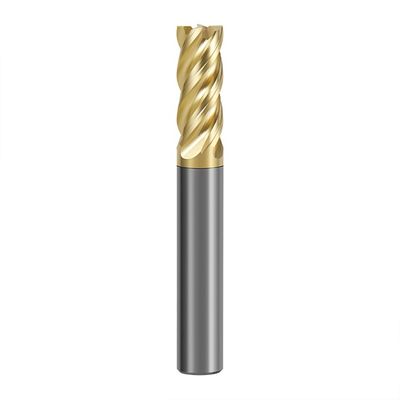

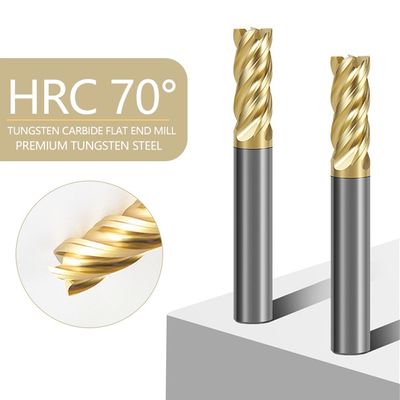

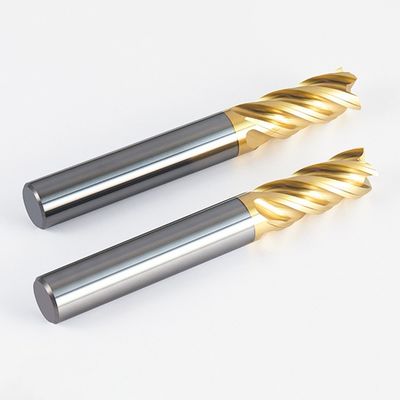

70HRC Tungsten Carbide End Mill with 35° Helix Angle and Alnovz3 Coating for Stainless Steel CNC Tooling

Large Image : 70HRC Tungsten Carbide End Mill with 35° Helix Angle and Alnovz3 Coating for Stainless Steel CNC Tooling

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	KEDEL
Model Number:	4 FLUTES

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$1.60-2

Contact Now

70HRC Tungsten Carbide End Mill with 35° Helix Angle and Alnovz3 Coating for Stainless Steel CNC Tooling

Description

Material:	Tungsten Carbide	Grain Size:	0.6um
Flute Count:	4	Shape:	Flat
Coating:	Alnovz3	Hardness HRC:	70
Helix Angle:	35°	Cutting Diameter:	1-20mm
Flute Length:	3-70mm	Shank Diameter:	3-20mm
Overall Length:	50-150mm	Suitable Materials:	Stainless Steel, Alloy Steel, Cast Iron
Color:	Slivery	Flute Type:	4-flute
End Mill Type:	Stand-Up Milling Cutter
Highlight:	35° Helix Angle Tungsten Carbide End Mill , Alnovz3 Coating CNC Milling Cutter , Flat Shape 4-Flute End Mill

70° Tungsten Carbide 4-Flute End Mill for Stainless Steel CNC Tooling

Key Specifications

Flutes:

Chip Flute:

Coating:

Alnovz3

Shape:

Flat

Angle:

35°

HRC:

70°

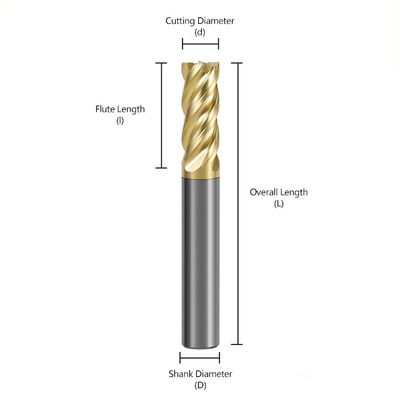

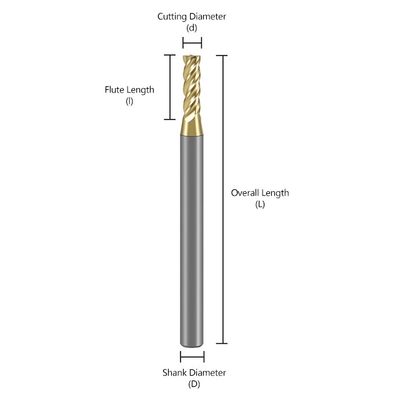

Dimensional Specifications

Number of Flutes	Cutting Diameter (d)	Flute Length (l)	Shank Diameter (D)	Overall Length (L)
Four blades	1	3	4	50
Four blades	1.5	5	4	50
Four blades	2	6	4	50
Four blades	2.5	7	4	50
Four blades	3	9	3	50
Four blades	3	9	4	50
Four blades	3.5	11	4	50
Four blades	4	12	4	50
Four blades	5	13	5	50
Four blades	5	13	6	50
Four blades	6	15	6	50
Four blades	8	20	8	60
Four blades	8	24	8	60
Four blades	3	12	3	75
Four blades	4	16	4	75
Four blades	6	24	6	75
Four blades	8	25	8	75
Four blades	10	25	10	75
Four blades	12	30	12	75
Four blades	3	12	3	100
Four blades	4	20	4	100
Four blades	6	30	6	100
Four blades	8	35	8	100
Four blades	10	40	10	100
Four blades	12	45	12	100
Four blades	14	45	14	100
Four blades	16	45	16	100
Four blades	18	45	18	100
Four blades	20	45	20	100
Four blades	6	45	6	150
Four blades	8	50	8	150
Four blades	10	55	10	150
Four blades	12	55	12	150
Four blades	14	70	14	150
Four blades	16	70	16	150
Four blades	20	70	20	150
