K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working

K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working
K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working

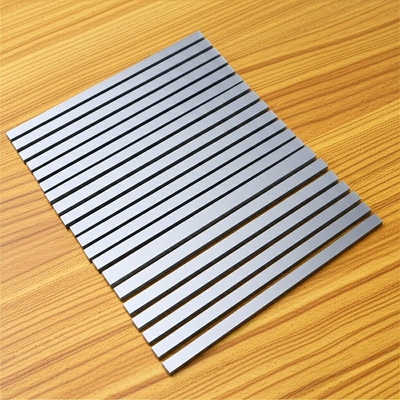

Large Image :  K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: KD-8001
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $4.00 - $40.00 / Piece
Packaging Details: box +carton
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 pcs per months

K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working

Description
Product Name: Cemented Tungsten Carbide Plate Application: Planer Cutting Tool / Pliner Plates / Metal Working / Stone Working
Material: Original Tungsten Carbide Material,WC+CO,100% Virgin Raw Material Grade: K10/K20/K30,YG6/YG8/YG10X/YG20C
Size: Standard Or Customized Color: Silver Gray Mainly
Density: 14.3--14.90g/m3 Physical Performance: High Strength And Hardness Wear Resistance
Service: ODM OEM,customized Available Hardness: HRA90-HRA92.1
High Light:

HIP Sintered Tungsten Carbide Plates

,

K30 Carbide Strips Wood Working

,

YG10X Tungsten Carbide Plates

 K10 K20 K30 HIP Sintered Tungsten Carbide Flat Bars/Carbide Plates/Carbide Strips On Wood Working

 Tungsten carbide strips is a sintered metallurgical product of powder form. It is manufactured in vacuum or Hydrogen reduction furnace with refractory tungsten material (WC) micron powder as the main ingredient and Cobalt (Co), Nickel (Ni) or Molybdenum (Mo) as the binder.It has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness). We supply several types of tungsten carbide strips: strip with angle, round strip and cemented tungsten carbide strip.



Application of Tungsten Carbide Plate:

1. Suitable for the production of cast iron rolls and high chrome roll knife.

2. Applicable to the production of discharge plate, stamping die, cold punching die, such as electronic stamping die.

3. Used for stamping dies. Used in the production of copper, aluminum, stainless steel, cold rolled sheet, El board, Q195, SPCC, silicon steel plate, metal, standard parts, upper and lower punch and other high-speed mold.

4. Tungsten carbide plate wear resistance is higher, suitable for hardwood, logs, aluminum, copper rods, cast iron processing for the production of various types of motors, electronic into the mold, stamping electronic mold.

5. Different uses of carbide materials, material performance is inconsistent, the use of specific , bepurposes should be based on appropriate materials to select carbide plate.





Grade
Grain Size
cementing phase/%
Density g/cm3
Hardness/HRA
T.R.S/.N/mm2
Performances&recommended applications
Z GRADES—MEDIUM GRADES
YG11
1.6-2.4
11
14.45
88.0
3200
The production of precision punch die,suitable for copper and aluminum material stamping
YG15
1.6-2.4
15
14.05
87.0
3300
The production of electrical machinery, electronic progressive die, punch, good versatility
BZ30
1.6-2.4
15
14.10
87.2
3400
The production of electrical machinery, electronic progressive die, punch
YG20
1.6-2.4
20
13.55
85.0
3400
The production of large impact load motor type progressive die, punch



Product types of Wear parts hard alloy cemented tungsten carbide board block bar plates

K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working 0

L W S
200 200 10-45
150 150 10-45
150 130 10-45
150 100 10-45
150 80 10-45
120 120 10-45
100 100 10-50
100 50 10-50
100 45 10-50
80 55 10-50
80 40 10-40
70 35 5-40
45 25 5-20
35 19 5-20
20 20 5-20
18 13 5-20
... ... ...

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.

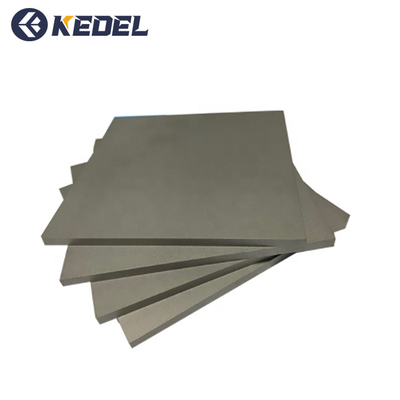

K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working 1

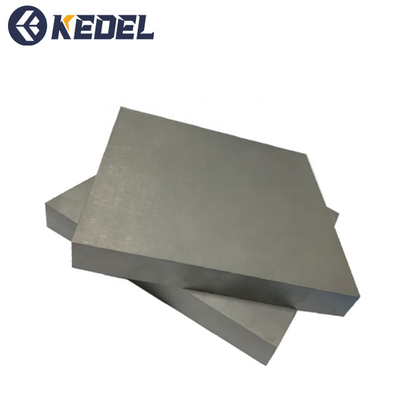

K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working 2

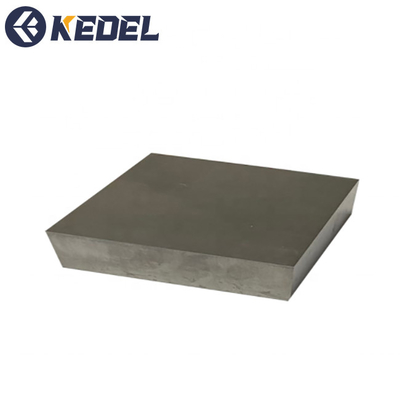

K10 K20 K30 HIP Sintered Tungsten Carbide Plates Strips On Wood Working 3
