Product Details:
|
| Product Name: | Carbide Brazed Turning Tips,ISO Standard Carbide Tungsten Brazing Tips On Sale | Material: | 100% Raw Material,WC+CO |
|---|---|---|---|
| Type: | A,C,B | Application: | Cutting,gas Industry |
| Advantage: | High Wear Resistance,Durable | Surface: | Sand-blasted Finished,Unground |
| Usage: | Multi-blades Saw | Feature: | High Wear Resistance&good Heat And Corrosion Resistance |
| Highlight: | K40 Tungsten Carbide Brazed Tips,K30 tungsten carbide cutting tips tungsten carbide saw tips,K05 Tungsten Carbide Brazed Tips |
||

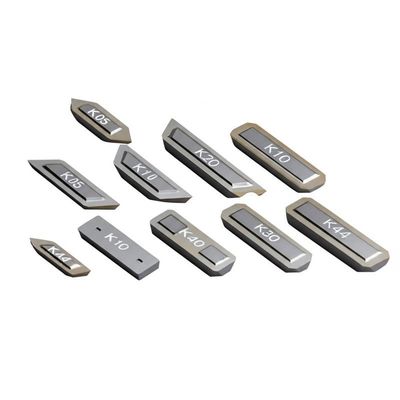

Carbide saw tips brazed on the teeh of the metal blades, it can be done by normal brazing procss and also laser brazing process. The blade with carbide saw tips normally used for machining wood (nature wood, plywood, MDF, etc.) and also used for machining metal, like cast iron, Stainless steel, aluminum.
Besides the standard types of saw tips, it also have many customized saw tips which done by clients' design for special using purpose.
Grade range "K" is the normal grades for carbide saw tips, but also have other grade like range "P" for stainless steel, aluminum and some other material.
|
A1 Type:
|
A106 A108 A110 A112 A114 A116 A118 A118A A120 A122 A125 A125A A130 A136 A140 A150 A160 A170
|
|
A2 Type:
|
A208 A210 A212 A216 A220 A225
|
|
A3 Type:
|
A310 A312 A315 A320 A325 A330 A340
|
|
A4 Type:
|
A406 A408 A410 A412 A416 A420 A425 A430 A430A A440 A440A A450 A450A
|
|
A5 Type:
|
A515 A518
|
|
A6 Type
|
A612 A615 A618
|
Basic grades of tungsten carbide saw tips
| ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Grain Size(μm) | Suitable for |
| HRA (ISO3738) |
||||||
| K01 | 3 | 15 | 94.2 | 2750 | 0.6 | Shaving board, density board, brass & aluminum alloy |
|
K05
|
6 | 14.9 | 93.3 | 3200 | 0.6 | Solid hard wood, plywood boar, MDF |
| K10 | 6 | 14.8 | 92 | 3200 | 0.8 | Hard wood(excelent performance grade) |
| K20 | 7 | 14.9 | 91 | 2600 | 1.2 | Ordinary wood and plasticmaterial |
| K30 | 8 | 14.8 | 90 | 2700 | 1.2 | For ordinary aluminum |
| M30 | 12 | 13.0 | 91 | 2400 | 0.8 | For angle steel, stainless steel and normal steel, like C45 |
| M40 | 12 | 13 | 90 | 2400 | 1.4 |
Metallurgical saw blade only
|
