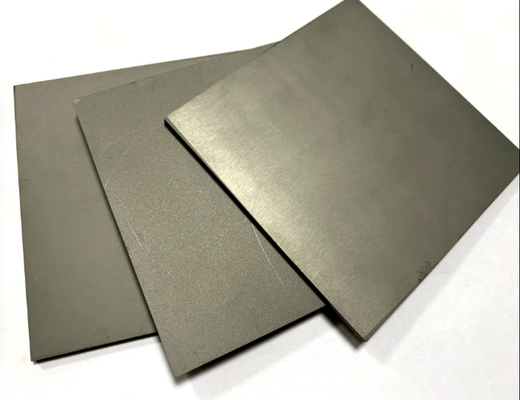

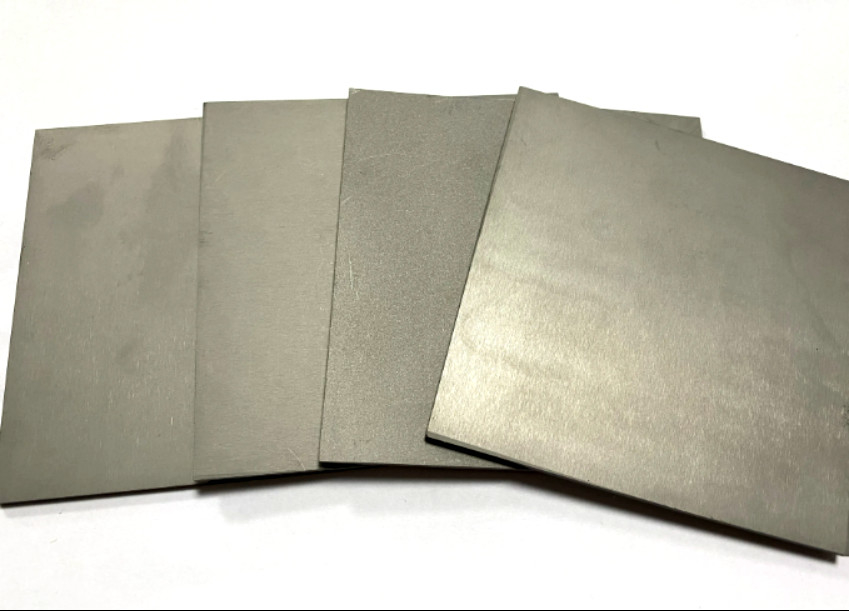

K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working

K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working
K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working

Large Image :  K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: KD-8001
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $4.00 - $40.00 / Piece
Packaging Details: box +carton
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 pcs per months

K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working

Description
Product Name: Cemented Tungsten Carbide Plate Application: Planer Cutting Tool / Pliner Plates / Metal Working / Stone Working
Material: Original Tungsten Carbide Material,WC+CO,100% Virgin Raw Material Grade: K10/K20/K30,YG6/YG8/YG10X/YG20C
Size: Standard Or Customized Color: Silver Gray Mainly
Density: 14.3--14.90g/m3 Physical Performance: High Strength And Hardness Wear Resistance
Service: ODM OEM,customized Available Hardness: HRA90-HRA92.1
High Light:

HRA90 Tungsten Carbide Strips

,

ODM Tungsten Carbide Strips

,

Wood Working Tungsten Carbide Plates

K10 K20 K30 HIP Sintered Tungsten Carbide Flat Bars/Carbide Plates/Carbide Strips On Wood Working

Tungsten carbide strip is a powdered sintered metallurgical product. It is manufactured in a vacuum or hydrogen reduction furnace, with refractory tungsten material (WC) micron powder as the main component, and cobalt (Co), nickel (Ni) or molybdenum (Mo) as the binder. It has many excellent properties, such as high hardness and strength, good wear resistance and corrosion resistance, and remarkable stability at high temperature (even at 500ºC, it basically does not change, and it still has high hardness at 1000ºC ).
We offer several types of tungsten carbide strip: angled strip, round strip and carbide strip.



Application of Tungsten Carbide Plate:

1. Suitable for producing cast iron rolls and high chromium roll cutters.
2. It is suitable for the production of electronic stamping dies such as discharge plates, stamping dies, and cold stamping dies.
3. Used for stamping dies. It is used to produce high-speed molds for copper, aluminum, stainless steel, cold-rolled sheet, El plate, Q195, SPCC, silicon steel sheet, metal, standard parts, upper and lower punches, etc.
4. The wear resistance of tungsten carbide plate is high, suitable for hardwood, log, aluminum, copper rod, cast iron processing and production of various types of motors, electronic molds, stamping electronic molds.
5. The use of cemented carbide materials is different, and the material properties are inconsistent. When using it, the appropriate cemented carbide plate should be selected according to the use.





Grade
Grain Size
cementing phase/%
Density g/cm3
Hardness/HRA
T.R.S/.N/mm2
Performances&recommended applications
Z GRADES—MEDIUM GRADES
YG11
1.6-2.4
11
14.45
88.0
3200
The production of precision punch die,suitable for copper and aluminum material stamping
YG15
1.6-2.4
15
14.05
87.0
3300
The production of electrical machinery, electronic progressive die, punch, good versatility
BZ30
1.6-2.4
15
14.10
87.2
3400
The production of electrical machinery, electronic progressive die, punch
YG20
1.6-2.4
20
13.55
85.0
3400
The production of large impact load motor type progressive die, punch



Product types of Wear parts hard alloy cemented tungsten carbide board block bar plates

K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working 0

L W S
200 200 10-45
150 150 10-45
150 130 10-45
150 100 10-45
150 80 10-45
120 120 10-45
100 100 10-50
100 50 10-50
100 45 10-50
80 55 10-50
80 40 10-40
70 35 5-40
45 25 5-20
35 19 5-20
20 20 5-20
18 13 5-20
... ... ...



All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore can be shipped out. High density, high wear & impact resistance, which lead them a long lifetime.



K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working 1
K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working 2
K10 K20 K30 HIP Sintered Tungsten Carbide Strips For Wood Working 3
