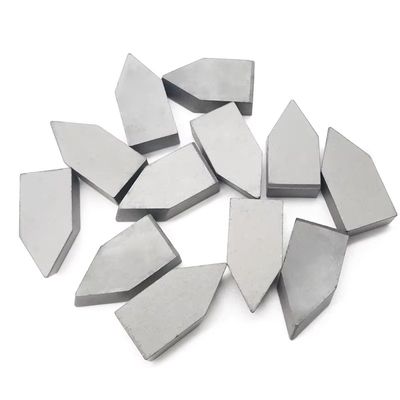

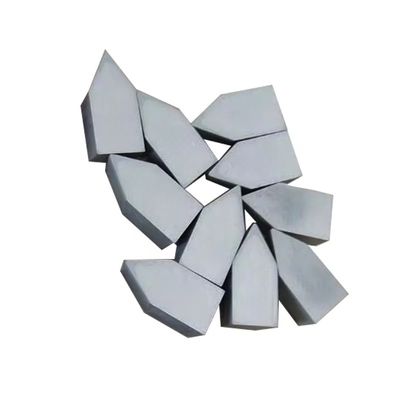

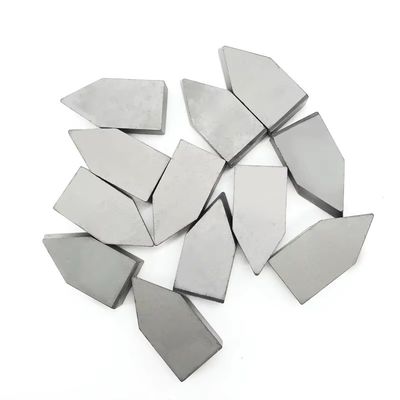

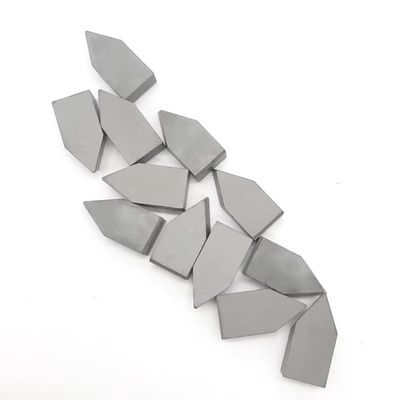

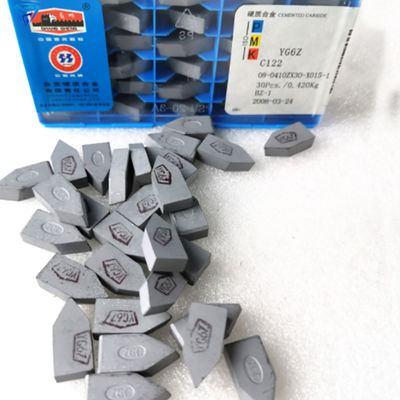

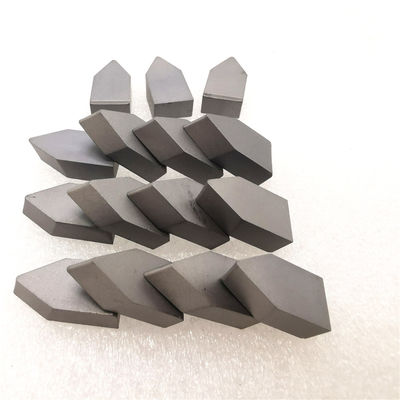

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification

All Products

Cemented Carbide Tools

(34)

Cemented Carbide Nozzle

(55)

Tungsten Carbide Sleeves

(29)

Cemented Carbide Buttons

(36)

Tungsten Carbide Rods

(16)

Tungsten Carbide Plates

(9)

Tungsten Carbide Seal Ring

(22)

Tungsten Carbide Blades

(19)

Carbide Rotary Burr

(20)

Tungsten Carbide End Mill

(22)

Tungsten Carbide Brazed Tips

(18)

Tungsten Carbide Valve

(15)

Carbide CNC Inserts

(10)

Tungsten Carbide Wear Parts

(14)

Circular Slitting Knife

(10)

Industrial Cutting Tools

(50)

Ungrouped

(0)
Certification
China Chengdu Kedel Technology Co.,Ltd certification
China Chengdu Kedel Technology Co.,Ltd certification
Customer Reviews
Kedel tool’s sales is very professional and patient, and when we get the goods, the carbide knives’ quality exceeds our expectations.We will maintain our cooperation and continue to repurchase products, hoping for a long-term partnership.

—— Emilia Baczynska

A very friendly factory that helps us deal with any problems in a timely manner. The quotation is very fast, and the staff is very friendly. Working together is worry free and enjoyable.

—— Susan Garnet

A very friendly factory that helps us deal with any problems in a timely manner. The quotation is very fast, and the staff is very friendly. Working together is worry free and enjoyable.

—— Kamlesh Patel

High cost-effective products, professional services, fast transportation, Kedel Tool are the one of the most trustful companies I know.

—— Andrey Skutin

I'm Online Chat Now

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification
Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification

Large Image :  Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.50-8
Contact Now

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification

Description
Material: Tungsten Carbide And Cobalt Alloy Specification: YG6 YG6X YG8 YG9C YG11C YG13C
Surface: Glossy Shape: Plates
Color: Black Alloy Density: 14.90 G/cm³ (YG6X)
Hardness: 93.0 HRA (YG6X) TRS: 2700 Mpa (YG6X)
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm (YG6X)
Power Source: Electric Engine Type: Electric
Usage: Welding Dissimilar Metals Size: Customized Size
MOQ: 5 PIECES
Highlight:

Customized Size Tungsten Carbide Brazed Tips

,

High Wear Resistance Carbide Brazing Tips

,

YG6 YG6X YG8 YG9C YG11C YG13C Brazed Carbide Tips

Customized High-Quality Tungsten Carbide Brazing Tips Head for Mold Manufacturing
Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 0
Product Description
Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 1
Product Parameters

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 2
Grade Composition(% in weight) WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C Grain size(μm)
KD115/YG6X
93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X
89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6
94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8
92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9
91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C
91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10
90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11
89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C
89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13
87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C
87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15
85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C
85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X
91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X
88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25
77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35
69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10
83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20
79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Details Images

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 3
Why Choose Us

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 4
Company Profile

Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 5
Exhibition
Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 6
Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 7
Customized Size High Wear Resistance Tungsten Carbide Brazed Tips with YG6 YG6X YG8 YG9C YG11C YG13C Alloy Specification 8

FAQ

Q: How to obtain an accurate quotation from Kedel Tools?

A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

Q: How does our company ensure the quality of its products?

A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q: How long does a typical production cycle take?

A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q: What is our company’s payment method?

A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
