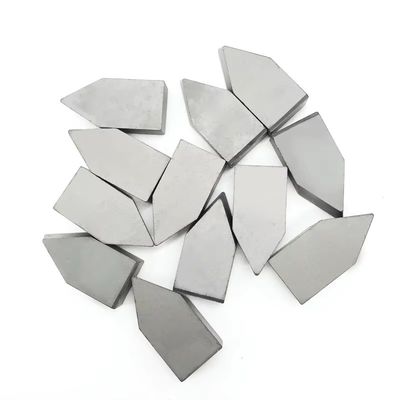

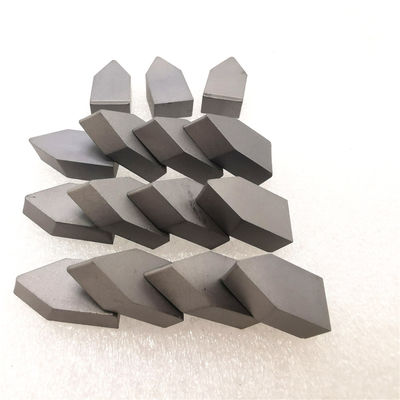

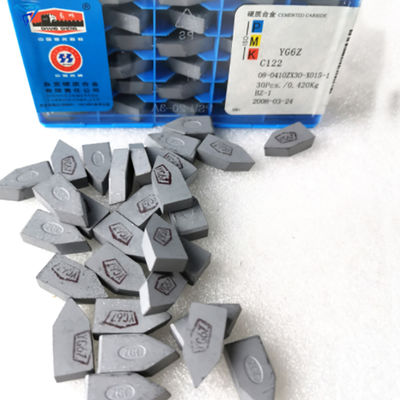

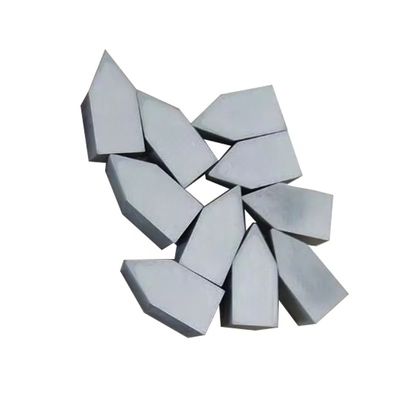

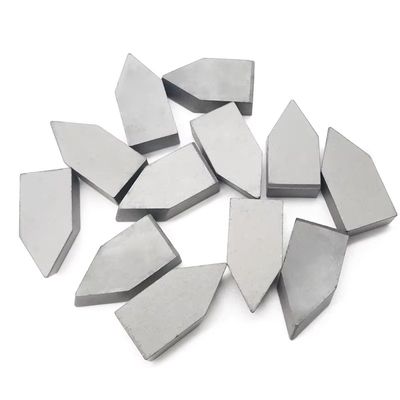

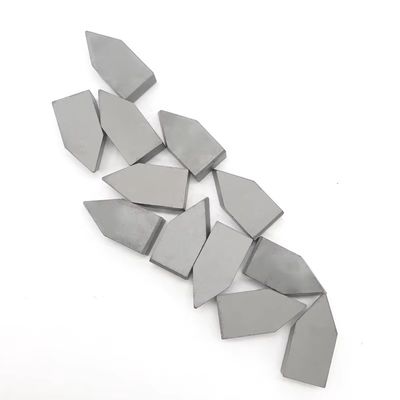

Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing

Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing

Large Image :  Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $2-8
Contact Now

Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing

Description
Material: Tungsten Carbide And Cobalt Alloy Specification: YG6 YG6X YG8 YG9C YG11C YG13C
Surface: Glossy Shape: Plates
Color: Black Alloy Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
WC Composition: 93.5% Ni Composition: 6.0%
TaC Composition: 0.5% Customizable Size: Yes
Minimum Order: 5 PIECES
Highlight:

YG6 Alloy Tungsten Carbide Brazed Tips

,

Customized Size Carbide Brazed Tips

,

High Wear Resistance Brazed Tips

Customized High-Quality Tungsten Carbide Alloy Brazing Head Tip Blade for Filling Gaps and Connecting Dissimilar Metals YG6
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 0 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 0
Product Description
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 2 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 2
Product Parameters
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 4 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 4
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
Details Images
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 6 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 6
Why Choose Us
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 8 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 8
Company Profile
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 10 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 10
Exhibition
Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 12 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 13 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 14 Customized Size High Wear Resistance YG6 Alloy Tungsten Carbide Brazed Tips for Tool and Mold Manufacturing 15
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
