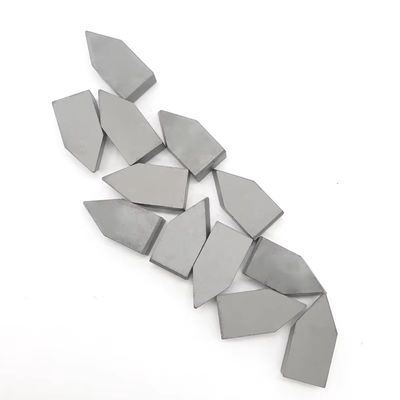

Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Large Image :  Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $2-6
Contact Now

Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG6, YG6X, YG8, YG9C, YG11C, YG13C
Surface Finish: Glossy Shape: Plates
Color: Black Alloy Density Range: 12.00-14.90 G/cm³
Hardness Range: 86.5-93.6 HRA TRS Range: 2000-3800 MPa
Porosity Grade: A02/B00/C00 Grain Size: 0.4-2.4 μm
Power Source: Electric Engine Type: Electric
Minimum Order: 5 PIECES Customization: Available
Usage: Welding Dissimilar Metals
Highlight:

YG6 YG6X YG8 Alloy Tungsten Carbide Brazed Tips

,

Customized Size Tungsten Carbide Brazed Tips

,

High Wear Resistance Carbide Brazing Tips

Customized High-Quality Tungsten Carbide Brazing Tips Head for Tool Manufacturing Welding of Cutting Edges and Tool Holders
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 0
Product Description
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 1
Product Parameters
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 2
Grade WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C Grain size(μm)
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.50 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 14.10 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.60 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 12.70 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 13.25 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Details Images
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 3
Why Choose Us
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 4
Company Profile
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 5
Exhibition
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 6
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 7
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa 8
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company's payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
