Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa

Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa
Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa

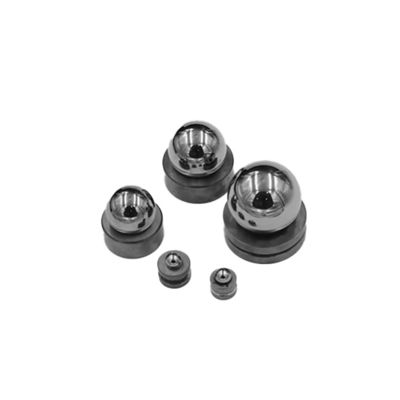

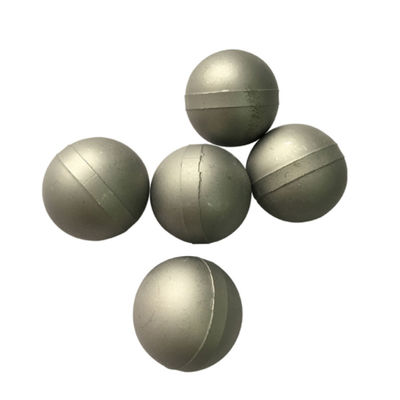

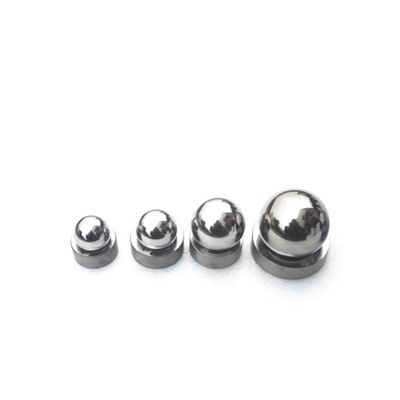

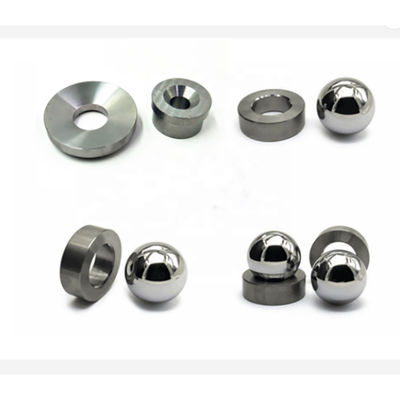

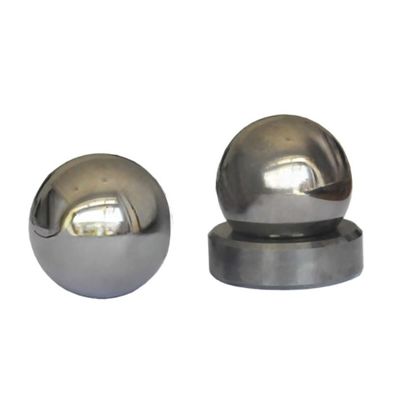

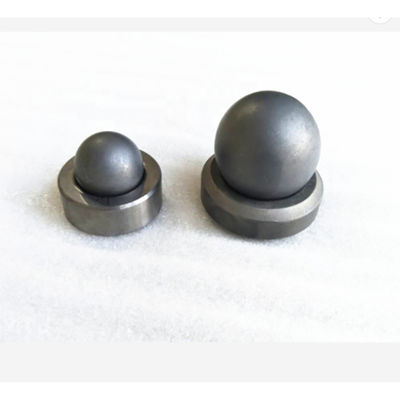

Large Image :  Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.50-2
Contact Now

Customized Cemented Tungsten Carbide Ball Valve with Density Range 12.00-14.90 g/cm³ Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 Mpa

Description
Material: 100% Tungsten Carbide Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish: Glossy Power Source: Electric
Shape: Cylindrical Color: Black Alloy
Density Range: 12.00-14.90 G/cm³ Hardness Range: 86.5-93.6 HRA
TRS Range: 2000-3800 Mpa Porosity Grade: A02/B00/C00
Grain Size: 0.4-2.4 μm Ball Diameter: 15.88-57.15 Mm
Seat Height: 12.7 Mm Seat OD: 20.14-78.03 Mm
Seat ID: 11.68-45.47 Mm
Highlight:

Customized Size Tungsten Carbide Ball Valve

,

High Wear Resistance Tungsten Carbide Valve

,

100% Tungsten Carbide Material Ball Valve

Customized Cemented Tungsten Carbide Alloy Ball Valve

High-performance ball valve designed for long-distance pipelines in paper making, water conservancy, and power industries.

Product Overview
Tungsten carbide ball valve product overview Tungsten carbide ball valve technical specifications
Product Parameters
Tungsten carbide ball valve parameters diagram
Grade Composition (% in weight) Physical Properties Grain size (μm)
WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
API Type/Symbol V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Ball-D (mm) 5/8" 15.88 3/4" 19.05 15/16" 23.83 1-1/8" 28.58 1-1/8" 28.58 1-3/8" 34.93 12/3" 42.88 2-1/4" 57.15
Seat-H (mm) 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7
Seat-OD (mm) 20.14 23.32 29.67 35.26 37.57 43.69 51.05 78.03
Seat-ID (mm) 11.68 13.97 17.02 20.96 24.38 26.92 33.27 45.47
R 1.6 1.6 2 2 2.4 2.4 2.4 3.5
Product Details
Detailed view of tungsten carbide ball valve components
Why Choose Us
Quality assurance and manufacturing advantages
Company Profile
Kedel Technology Co., Ltd. company overview
Exhibition
Trade show exhibition booth Product display at trade show Company representatives at exhibition Technical discussion at trade show

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.

Tag:

Tungsten Carbide Valve Seats,

Rod Deep Pump ball and seat valve,

API Oilfield Tungsten Carbide Valve
