Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems

Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems

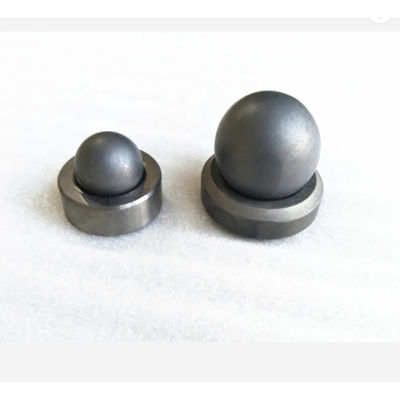

Large Image :  Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG8
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.80-3.15
Contact Now

Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems

Description
Material: 100% Tungsten Carbide Raw Material Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Shape: Cylindrical Color: Black Alloy
Surface: Glossy Power Source: Electric
Engine Type: Electric Density: 14.90 G/cm³ (YG6X)
Hardness: 93.0 HRA (YG6X) TRS: 2700 Mpa (YG6X)
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm (YG6X)
Ball Diameter: 5/8" To 2-1/4" Seat Height: 12.7 Mm
Seat OD: 20.14 Mm To 78.03 Mm
Highlight:

100% Tungsten Carbide Material Tungsten Carbide Ball Valve

,

YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Tungsten Carbide Valve

,

Customized Size Cemented Tungsten Carbide Valve

Customized Cemented Tungsten Carbide Alloy Ball Valve

High wear and corrosion resistant solution for oil and gas pipeline systems

Product Overview
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 0 Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 1
Technical Specifications
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 2
Grade Composition (% in weight) Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity Grain size (μm)
KD115/YG6X WC 93.5, Ni 6.0, TaC 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X WC 89.0, Ni 10.5, TaC 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 WC 94.0, Ni 6.0 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 WC 92.0, Ni 8.0 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 WC 91.0, Ni 9.0 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C WC 91.0, Ni 9.0 14.60 88.0 3200 A02/B00/C00 1.6-2.4
NOTE: Customization available per customer drawing or actual sample
API Standard Dimensions
API Type/Symbol V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Ball-D(mm) 5/8" 15.88 3/4" 19.05 15/16" 23.83 1-1/8" 28.58 1-1/8" 28.58 1-3/8" 34.93 12/3" 42.88 2-1/4" 57.15
Seat-H(mm) 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7
Seat-OD(mm) 20.14 23.32 29.67 35.26 37.57 43.69 51.05 78.03
Seat-ID(mm) 11.68 13.97 17.02 20.96 24.38 26.92 33.27 45.47
R 1.6 1.6 2 2 2.4 2.4 2.4 3.5

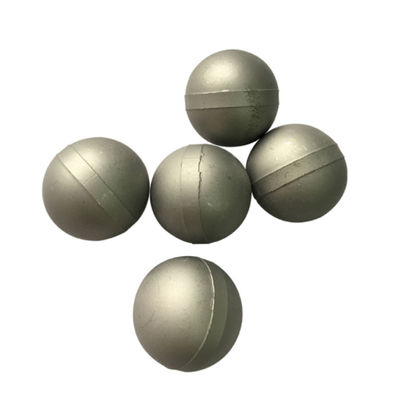

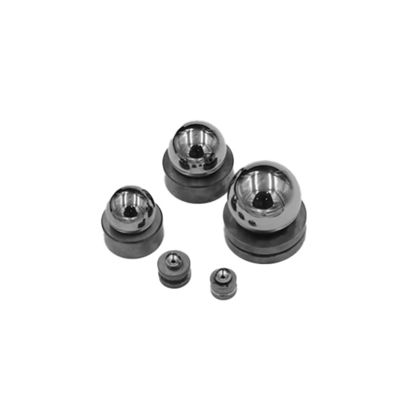

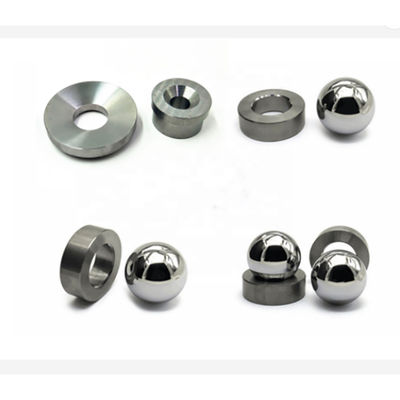

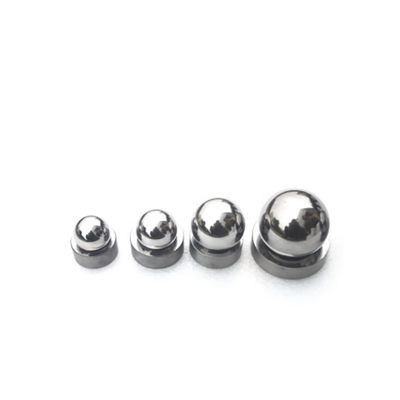

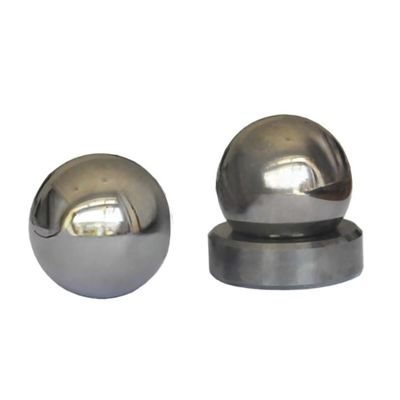

Product Images
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 3
Quality Assurance
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 4
Company Profile
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 5
Exhibition
Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 6 Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 7 Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 8 Electric Power Source Glossy Surface Black Alloy Cemented Carbide Valve for Oil and Gas Pipeline Systems 9
Frequently Asked Questions
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company's payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
