Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt

Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt

Large Image :  Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.30-1.10
Contact Now

Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish: Glossy Shape: Flaky
Density Range: 12.10-14.90 G/cm³ Hardness Range: 86.5-93.6 HRA
TRS Range: 2000-3800 Mpa Porosity Grade: A02/B00/C00
Grain Size: 0.4-2.4 μm Power Source: Electric
Engine Type: Electric Customizable Size: Yes
Minimum Order: 5 PIECES WC Content: 69.2-94.0%
Ni Content: 6.0-15.0%
Highlight:

High Hardness Tungsten Carbide Brazed Tips

,

Precise Cutting Carbide Tips and Inserts

,

Tungsten Carbide and Cobalt Stone Cutting Blade

Customized Tungsten Carbide Alloy Stone Cutter With High Hardness and Wear Resistance for Precise Cutting of Stone Materials
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 0
Product Description
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 1
Product Parameters
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 2
Grade Composition(% in weight) WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C Grain size(μm)
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample

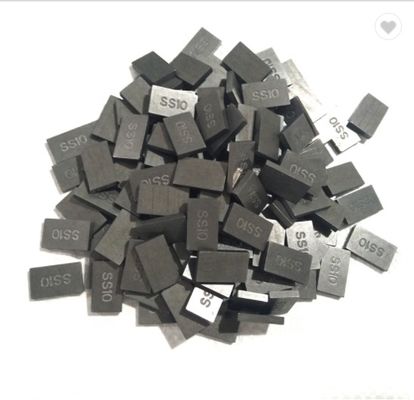

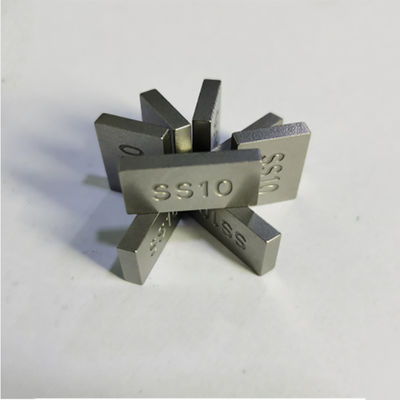

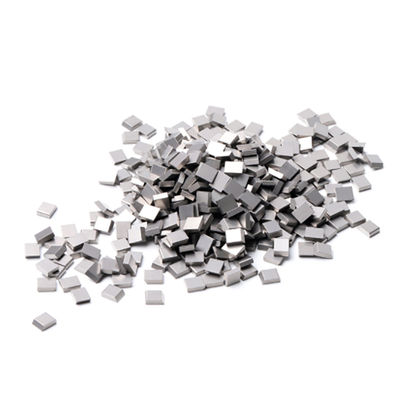

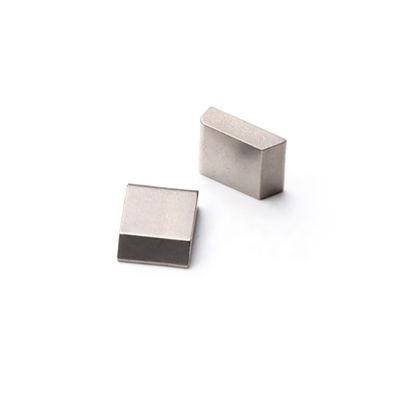

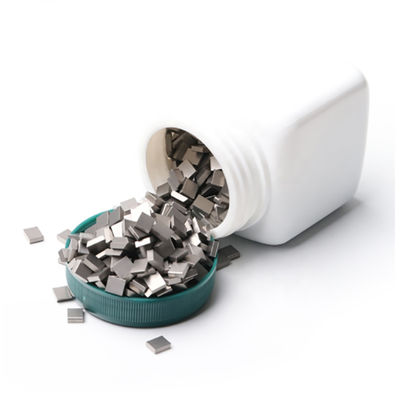

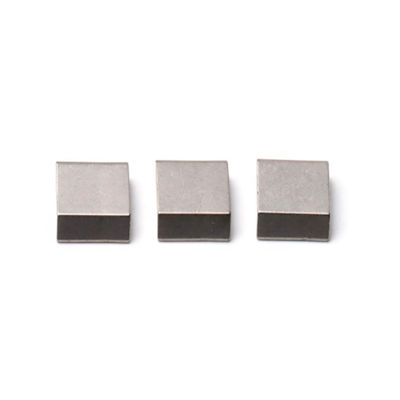

Details Images
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 3
Why Choose Us
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 4
Company Profile
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 5
Exhibition
Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 6 Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 7 Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 8 Customized Tungsten Carbide Brazed Tips with High Hardness and Precise Cutting for Stone Materials Made from Tungsten Carbide and Cobalt 9
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
