Customized Tungsten Carbide Strip with High Wear Resistance and YG8 YG9C Alloy Specification for Durable Wear-Resistant Parts

Large Image : Customized Tungsten Carbide Strip with High Wear Resistance and YG8 YG9C Alloy Specification for Durable Wear-Resistant Parts

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Model Number:	YG10

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$3-15

Contact Now

Customized Tungsten Carbide Strip with High Wear Resistance and YG8 YG9C Alloy Specification for Durable Wear-Resistant Parts

Description

Material Composition:	Tungsten Carbide And Cobalt	Alloy Specification:	YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish:	Glossy	Shape:	Strip
Density Range:	12.00-14.90 G/cm³	Hardness Range:	86.5-93.6 HRA
TRS Range:	2000-3800 Mpa	Porosity Grade:	A02/B00/C00
Grain Size:	0.4-2.4 μm	Diameter Range:	1.5-32 Mm
Diameter Tolerance:	±0.5_+0.4 Mm (Unground), H6 (Fine Ground)	Length:	310/330 Mm
Length Tolerance:	+2_+6 Mm (Unground), ±2_+6 Mm (Fine Ground)	Minimum Order:	5 Pieces
Customization:	Available Per Drawing/sample
Highlight:	YG8 YG9C Tungsten Carbide Strip , Customized Tungsten Carbide Strip , Glossy Tungsten Carbide Strip

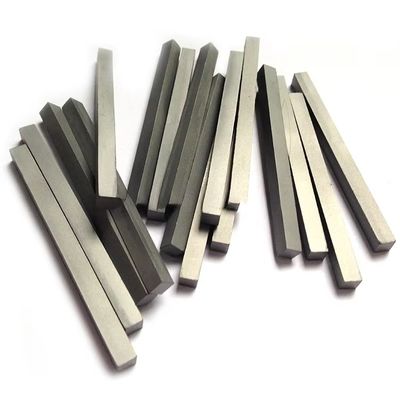

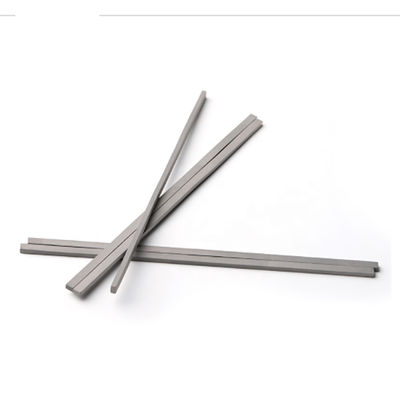

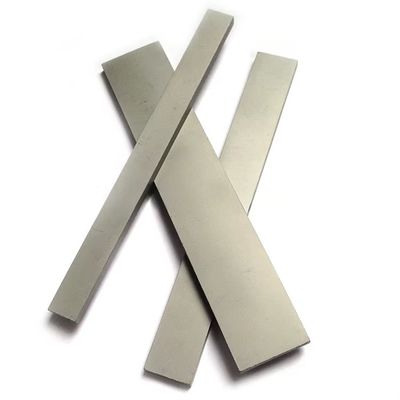

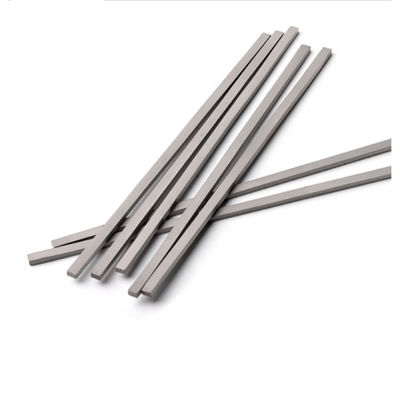

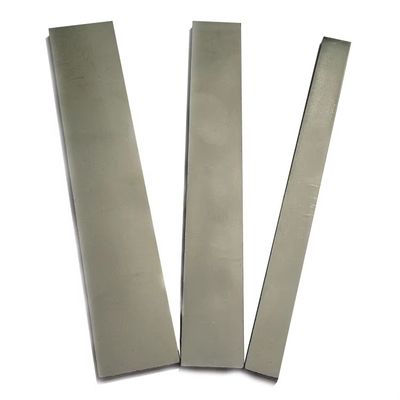

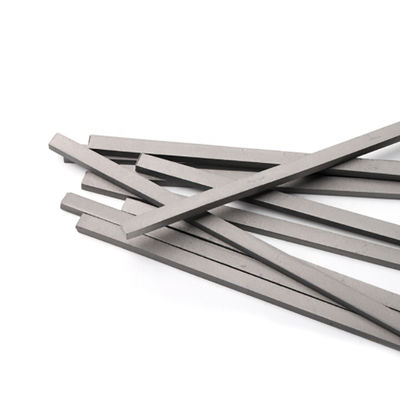

Customized Tungsten Carbide Alloy Strip With High Wear Resistance

Product Description

High-performance tungsten carbide alloy strips designed for manufacturing wear-resistant parts and guide rails. Available in various grades including YG8 and YG9C with exceptional durability and resistance properties.

Product Parameters

Grade	WC	Ni	Ti	TaC	Density g/cm³ (±0.1)	Hardness HRA (±0.5)	TRS Mpa (min)	Porosity	Grain size (μm)
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	13.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4

Rod Specifications

Type	D (mm)	Tolerance	L (mm)	Tolerance
Unground Rods	1.5-32	±0.5_+0.4	310/330	+2_+6
Fine Grounded Rods	1.5-32	h6	310/330	±2_+6

NOTE: Customization available per customer drawing or actual sample

Product Details

Why Choose Us

Company Profile

Exhibition

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
